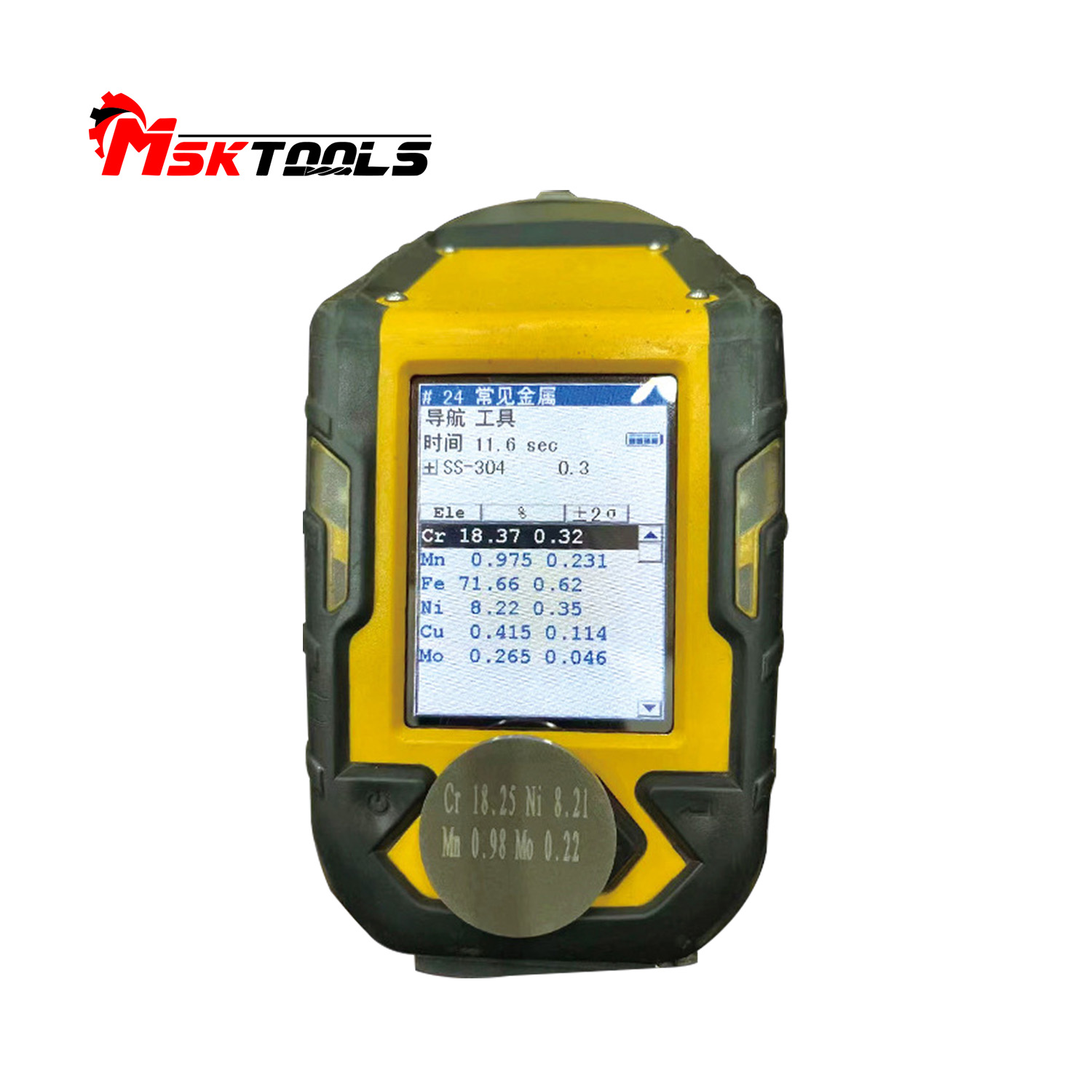

Niton Handheld XRF Spectrometer | Portable Alloy & Metal Analyzer for Scrap, Mining, Ore, Soil
Powered by a high-performance Si-PIN detector and a silver anode X-ray tube, the spectrometer reliably measures elements from trace levels to high concentrations across a wide range of materials, including stainless steel, nickel alloys, titanium, aluminum, copper alloys, rare metals (Ta, Zr), and precious metals such as gold and silver.
Built for demanding environments, the unit weighs only 1.53 kg and operates flawlessly from -20℃ to +50℃. Its rugged design, combined with a fixed-angle color touchscreen and physical keyboard, ensures easy operation on any job site. Data storage for 10,000 tests and USB/Bluetooth connectivity streamline reporting and analysis.
From incoming material verification (PMI) and finished component inspection to geochemical soil mapping and electronic alloy testing, the Niton handheld XRF spectrometer offers the speed, precision, and reliability that professionals trust.
Alloy Analyzer: Moisture-proof and dustproof, robust structure, lightweight, and able to withstand harsh environments.
Product information
| Weight | 1.53kg | Ambient temperature | -20℃～+50℃ |
| Dimensions | 256x275x100mm | Data transmission | USB, Bluetooth |
| Light tube | High-performance silver anode target | Data storage | Internal storage for 10,000 test data entries |
| Display | Fixed-angle color touchscreen display | Data input | Dual operation modes: touchscreen keyboard and physical keyboard |
| Safety | User password protection | On-site convenience | No requirements on material surface shape; can measure surfaces with gaps |
| Mode | Common metal modes, fingerprint modes, etc. | ||
| Detector | High-performance semiconductor Si-PIN detector | Electronic system | 400 MHz ARM 11 CPU, 300 MHz dedicated DSP |
| Collimator | 8mm |
Product application scope
Applications of Handheld Alloy Analyzers
- Stainless Steel
- Nickel Alloys
- 12Cr Steel
- Monel, Other Copper-Nickel Alloys
- Chromium-Molybdenum Steel
- Low Alloy Steel
- Tool Steel
- Copper Alloys, Brass, Bronze
- Titanium Alloys
- Aluminum Alloys
- Rare Metals, such as Tantalum, Zirconium Alloys
Fast, accurate compositional analysis is essential for verifying the reliability of your materials
- Irregularly Shaped Parts
- Metal Wires and Filaments with a Diameter of 1mm
- Rods, Bars
- Finished Welding Consumables
- Screws, Rivets, and Other Fasteners
- Finished Machined Assemblies
Scrap Metal Recycling
- An authoritative analytical tool for scrap metal recycling
- Provides instant, non-destructive chemical analysis of materials from titanium alloys to nickel alloys
- Excellent performance in impurity and trace element analysis
Precious Metal Identification
- Precisely measures the metal content of jewelry, coins, and other valuables in just seconds.
- Faster and more comprehensive than fire assays, with comparable accuracy.
- More convenient, faster, and more accurate than the nitric acid scratch test.
Electronic Alloy Testing
- Thickness correction (for thinner samples)
- Windowless testing (Cl, Br, Cl+Br)
- Real-time spectra and peak identification
Reliable performance
It achieves near-laboratory-grade analytical levels for alloy samples, clearly displaying the alloy grade, elemental percentage (some elements can be displayed to three decimal places), and ppm content.
It can analyze samples in various forms.
Dual operation modes: physical keyboard and touchscreen keyboard
Fast speed and simple operation
"Power on, start-up, aim, test, and view results"—the entire analysis process takes only a few seconds. Alloy grade identification takes only 1-2 seconds. It's so simple that even non-technical personnel can easily master it.

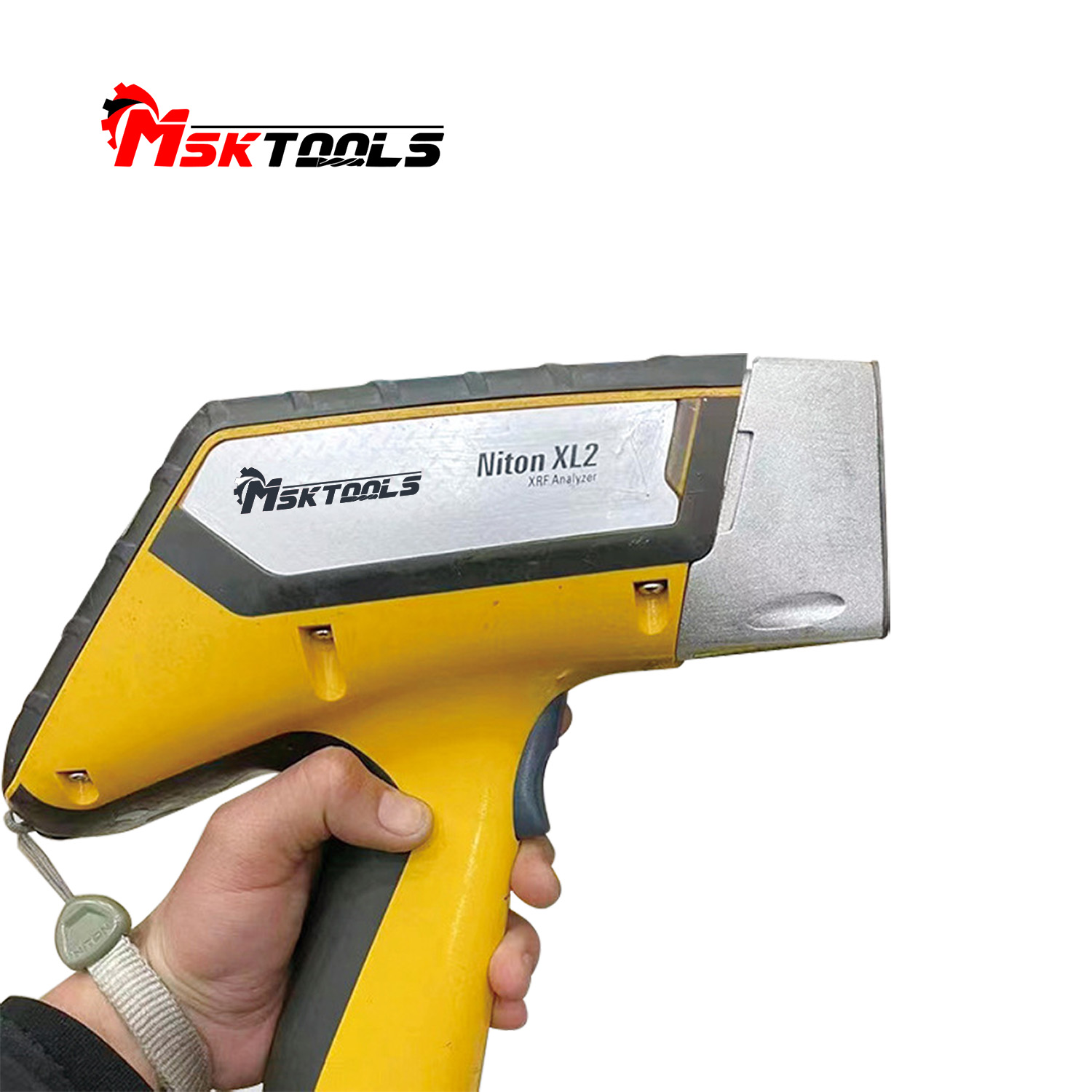

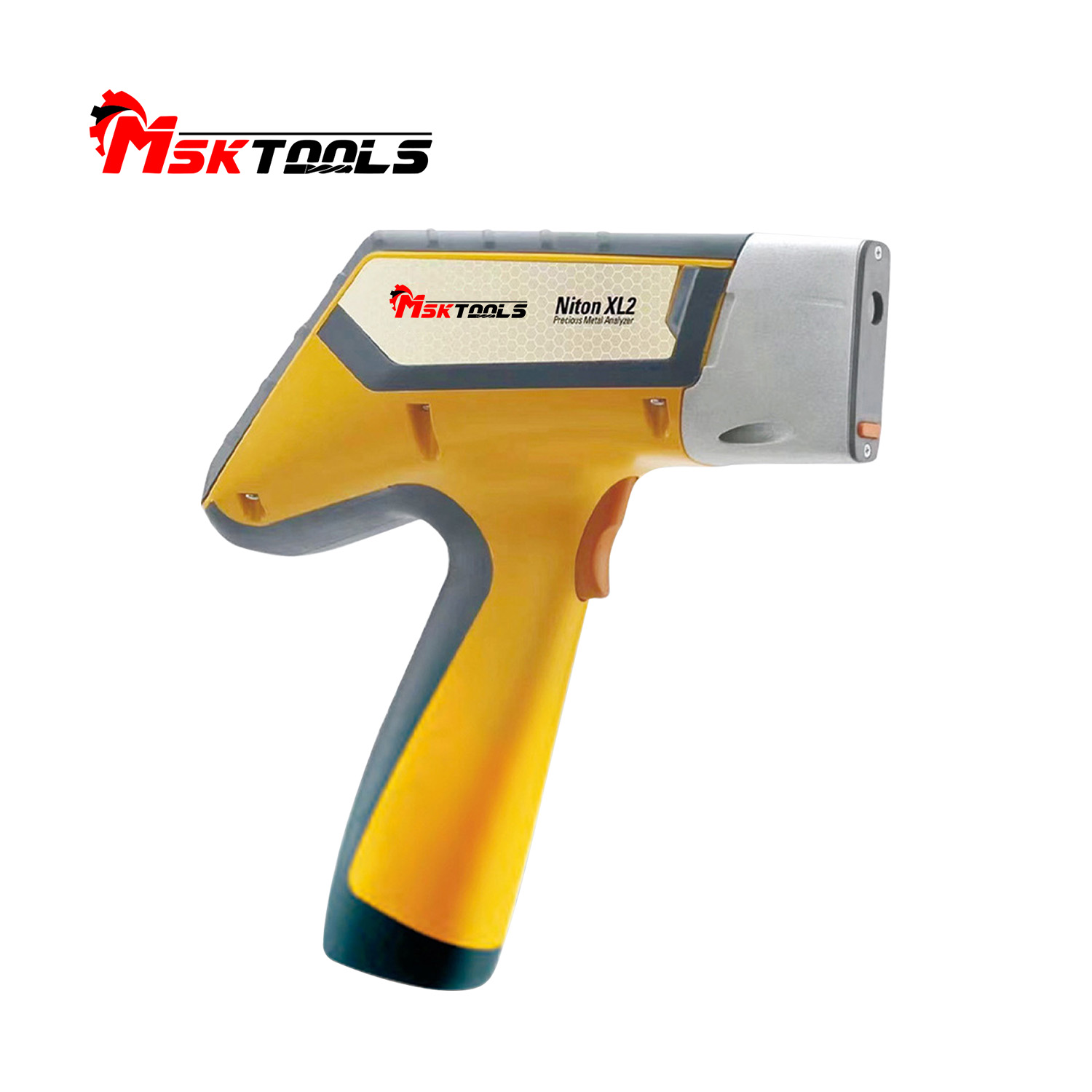

Niton XL2100G Design
Ergonomically designed; features a simple, large-icon menu display that is easy to read even in sunlight; supports multiple languages; standard testing range includes 25 elements from titanium to bismuth.
25 elements (Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Nb, Zr, Mo, Pd, Ag, Cd, Sn, Sb, Ta, Hf, Re, W, Au, Pb, Bi)
