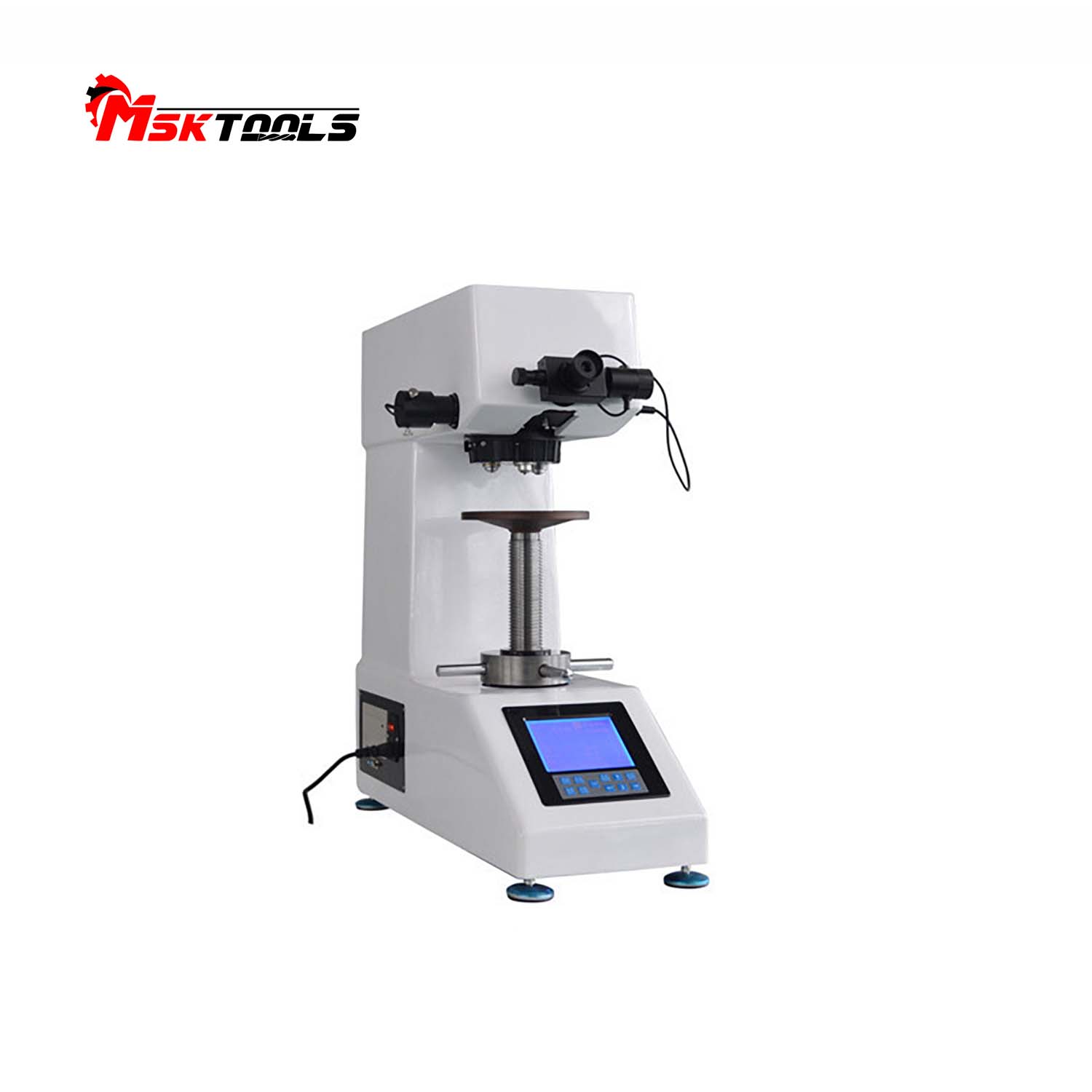

Digital Vickers Hardness Tester – Touch Screen Electronic Microhardness Tester with Automatic Turret

Our Digital Vickers Hardness Tester combines a large touch screen display, an automatic turret, and a manual input mode for precise microhardness testing. Designed as an electronic digital display microhardness tester, it offers test force ranges from 0.3Kgf to 50Kgf (available in HVS‑5BD/10BD/30BD/50BD models) to meet diverse material testing requirements – from thin films and coatings to small precision parts, ceramics, and metals.

Net Weight: Approximately 55kg

Minimum Measuring Unit: 0.125μm

Power Supply: AC220V±5%, 50~60Hz

Send email to us

Product Detail

Product Tags

The automatic turret enables seamless switching between indenter and objective lenses, while the touch screen interface simplifies operation and data management. Users can manually input indentation diagonals, and the system automatically calculates Vickers hardness values. The tester also supports Rockwell, Superficial Rockwell, and Brinell scale conversion, with a minimum measuring unit of 0.125μm and total magnification up to 200× for accurate measurements.

Standard features include automatic loading, holding, and unloading, plus a mini printer for data output. Optionally, you can upgrade to our hardness measurement software and a high‑definition camera (Sony 850‑line CCD or 3MP industrial camera) for automatic indentation reading, image storage, hardening curve plotting, and statistical analysis – greatly improving testing efficiency and repeatability.

This Vickers hardness tester is ideal for quality control labs, metallographic analysis, and production environments where precision, reliability, and ease of use are critical. Whether you need a stand‑alone manual input unit or a fully automated image analysis system, our solution adapts to your needs.

Key applications: Metals, thin films, coatings, ceramics, small precision parts, and heat‑treated layers.

HVS-5-50BZD Hardness Tester, Standard Type, Low Operating Cost / Large Screen Manual Turret Digital Display Vickers Hardness Tester

Test force	HVS-5BD	0.3Kgf、0.5Kgf、1Kgf、2Kgf、3Kgf、5Kgf
	HVS-10BD	0.3Kgf、0.5Kgf、1Kgf、3Kgf、5Kgf、10Kgf
	HVS-30BD	1Kgf、3Kgf、5Kgf、10Kgf、200Kgf、30Kgf
	HVS-50BD	1Kgf、5Kgf、10Kgf、20Kgf、30Kgf、50Kgf
Exchanging Scales		Rockwell, Superficial Rockwell, Brinell
Minimum Measuring Unit		0.125μm
Magnification of Microscope		Observe (measurement can be used as an aid) 100^X Measure 200^X (Please specify if there are any special objects)
Data Output		Mini printer
Loading Control		Automatically (load, keep, unload)
Net Weight		Approximately 55kg
Max Height of Specimen		Maximum height 175mm, center to inner wall 135mm
Power Supply		AC220V±5%, 50~60Hz
Carried Standard		GB/T4340.2 National Standard (Chinese Standard), JJG151 Inspection Rule
Standard Accessories		Objective lenses: 20x and 10x; Vickers indenter; measuring eyepiece: 10x; large flat stage, medium flat stage, V-shaped stage; two hardness blocks; power cord, instruction manual, certificate of conformity, dust cover, screwdriver, etc.

Optional (additional charge) various hardness tester measurement and analysis software from our company:

Manual micro/Vickers hardness measurement system (Note: Automatic measurement version is available as an optional extra at an additional cost).

Equipment Configuration

Category	Component Names	Specifications	Quantity
Equipment Configuration	Genuine Multifunctional Hardness Tester Measurement Software	Standard configuration is manual mode	1 set
	Image Sensor Camera	Sony chip color 1/3' HD CCD 850 line (standard) HD 3MP built-in industrial camera (optional, extra charge)	1 set
	Data Acquisition Box	High-resolution image real-time acquisition box secondary development software package	1 set
	Microcomputer and Printer	Current mainstream business office equipment includes one 21.5-inch high-definition industrial all-in-one computer and one HP color printer (optional)	1 set

Different linear velocities are available

Hardness tester control

The system provides serial communication for controlling hardness tester operations such as objective lens rotation, loading, setting hold time, adjusting light brightness, and providing test force adjustment feedback.

Data Storage

Individual measurement data and images can be saved in a single document for later retrieval, with the option of automatic saving.

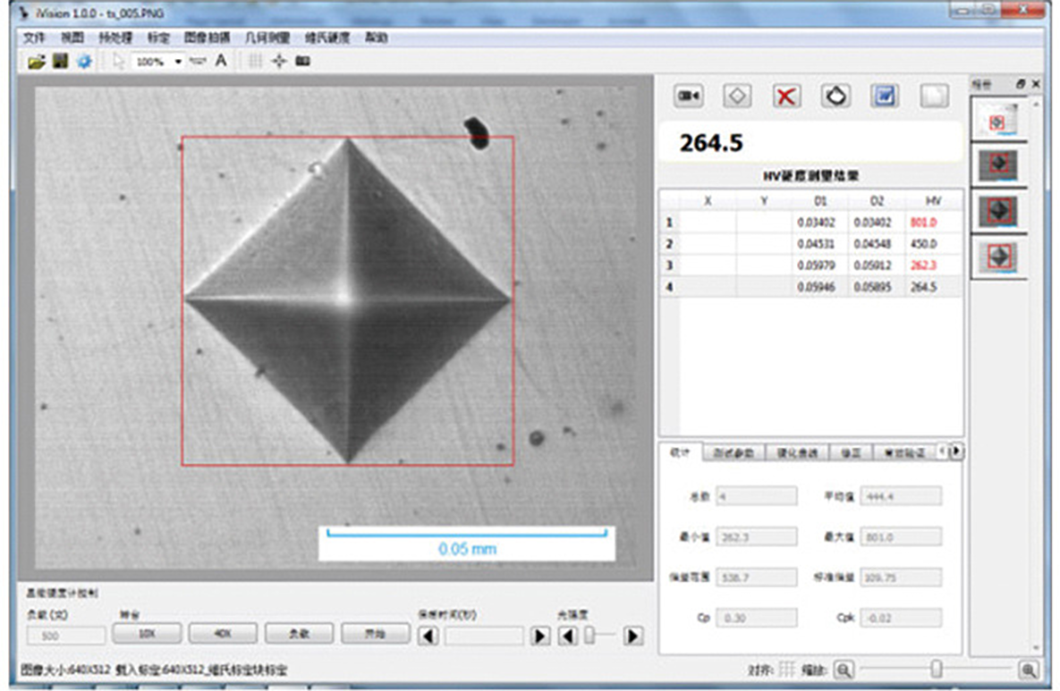

Manual/Automatic Measurement Options Available

The system offers manual measurement methods, including four-point and diagonal measurements;

The system automatically measures indentations, plots hardening curves, and updates statistical results, etc.
