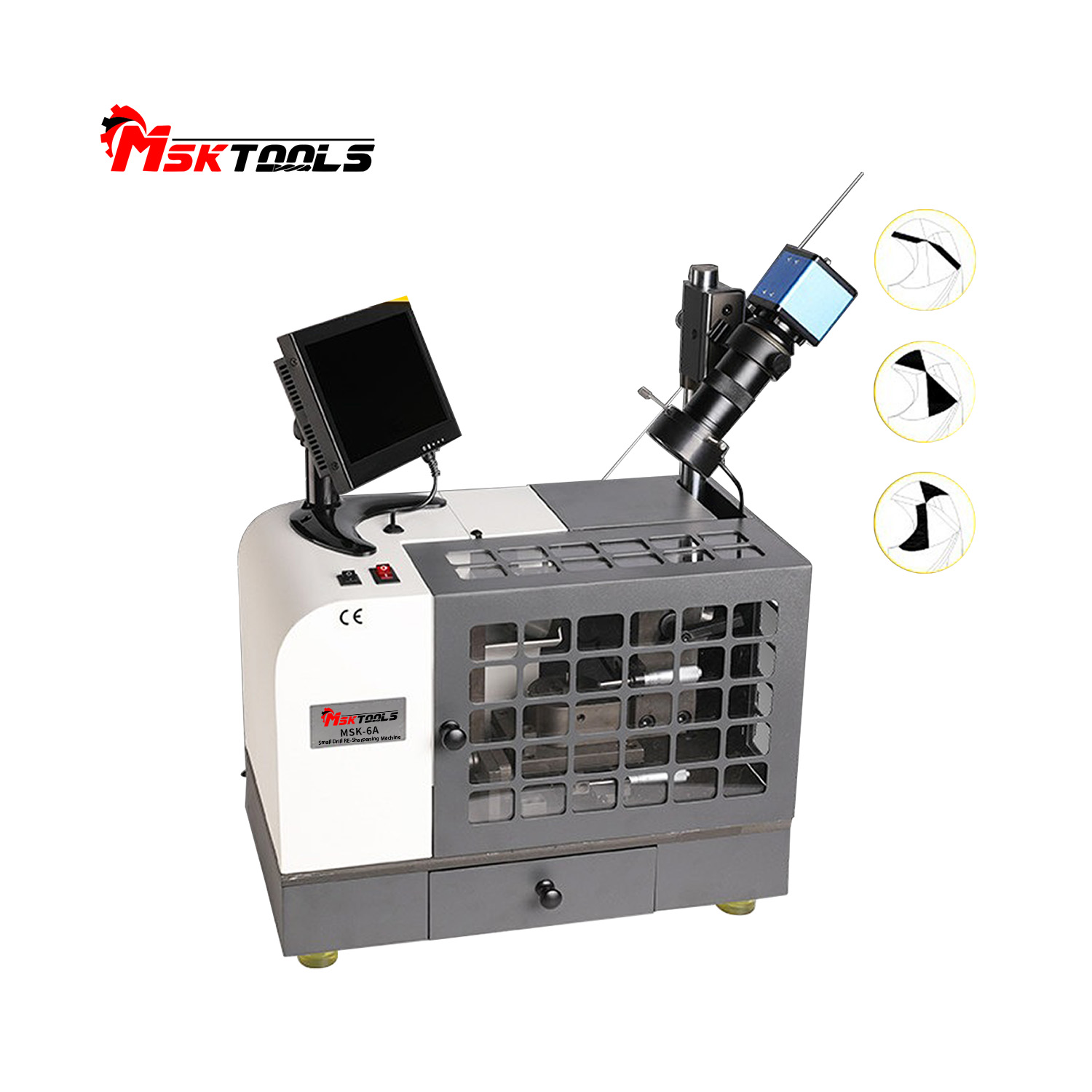

Model 6A Portable Small Drill Bit Sharpener – Precision Grinding for φ0.8–6mm Twist Drills
Why Choose the 6A Drill Bit Re-Sharpener?
Every machining workshop faces the same dilemma: worn-out drill bits lead to poor hole quality, frequent tool changes, and rising costs. The Model 6A Portable Drill Bit Sharpener is engineered to solve this. Designed for precision re-sharpening of HSS, carbide, and cobalt twist drills from φ0.8mm to φ6mm, this compact machine restores factory-fresh cutting geometry in just 10 seconds—saving you thousands of dollars annually on new tool purchases.

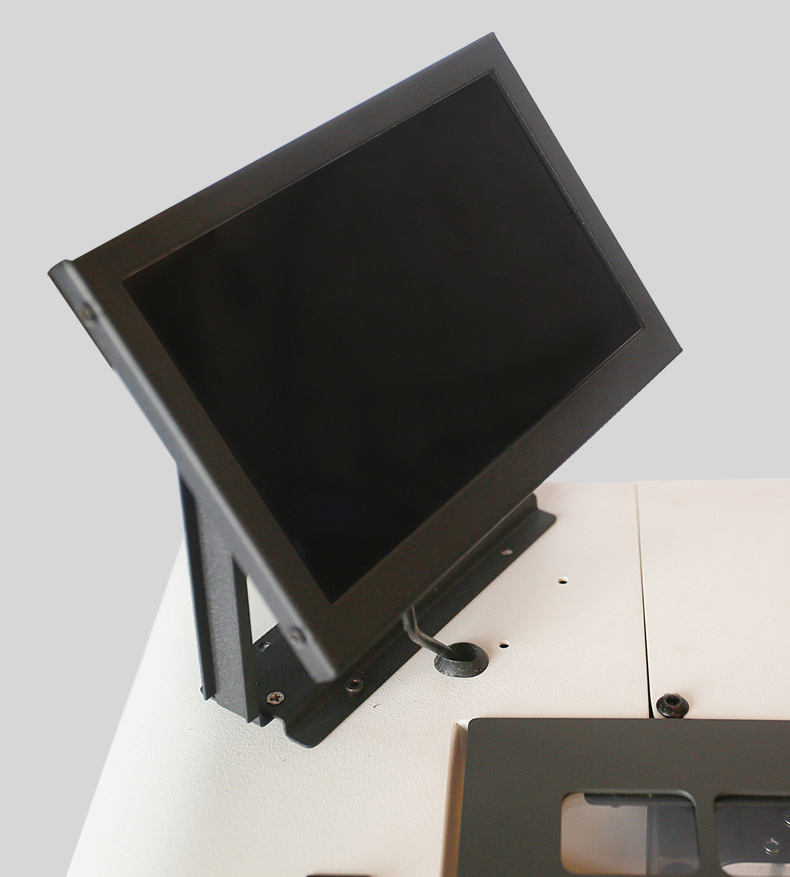

8-inch 4:3 Industrial Monitor
The camera lens is used in conjunction with an 8-inch 4:3 industrial monitor, offering a high-definition resolution of 800x600 and a contrast ratio of 400:1. This allows for clear observation of the drill bit's tool setting, facilitating detailed adjustments and improving drill bit symmetry.

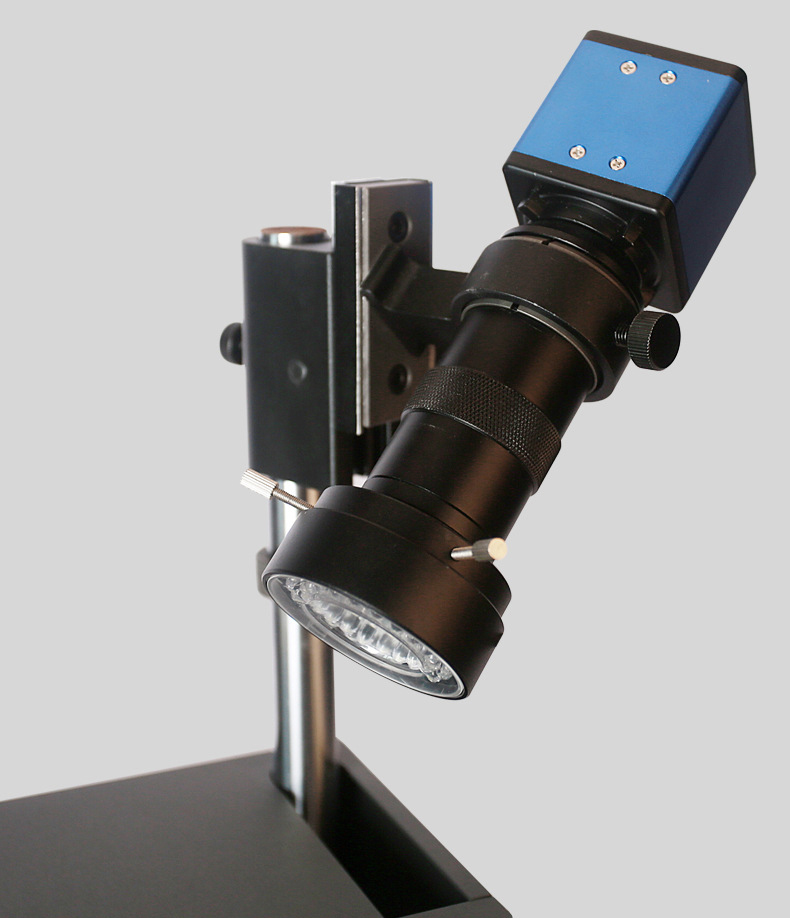

High-definition magnifying camera; Positioning and tool setting mode
The VGA camera features eight movable crosshair generators, one of which can be selected via the settings menu. Used for positioning the drill bit before regrinding and for checking and measuring the regrinding effect afterward.
Imaging sensor: 1.3-megapixel CMOS;
Effective pixels: 1280(H) x 1024(V);
Frame rate: 15 frames per second; Resolution: 650 TV-LINES.

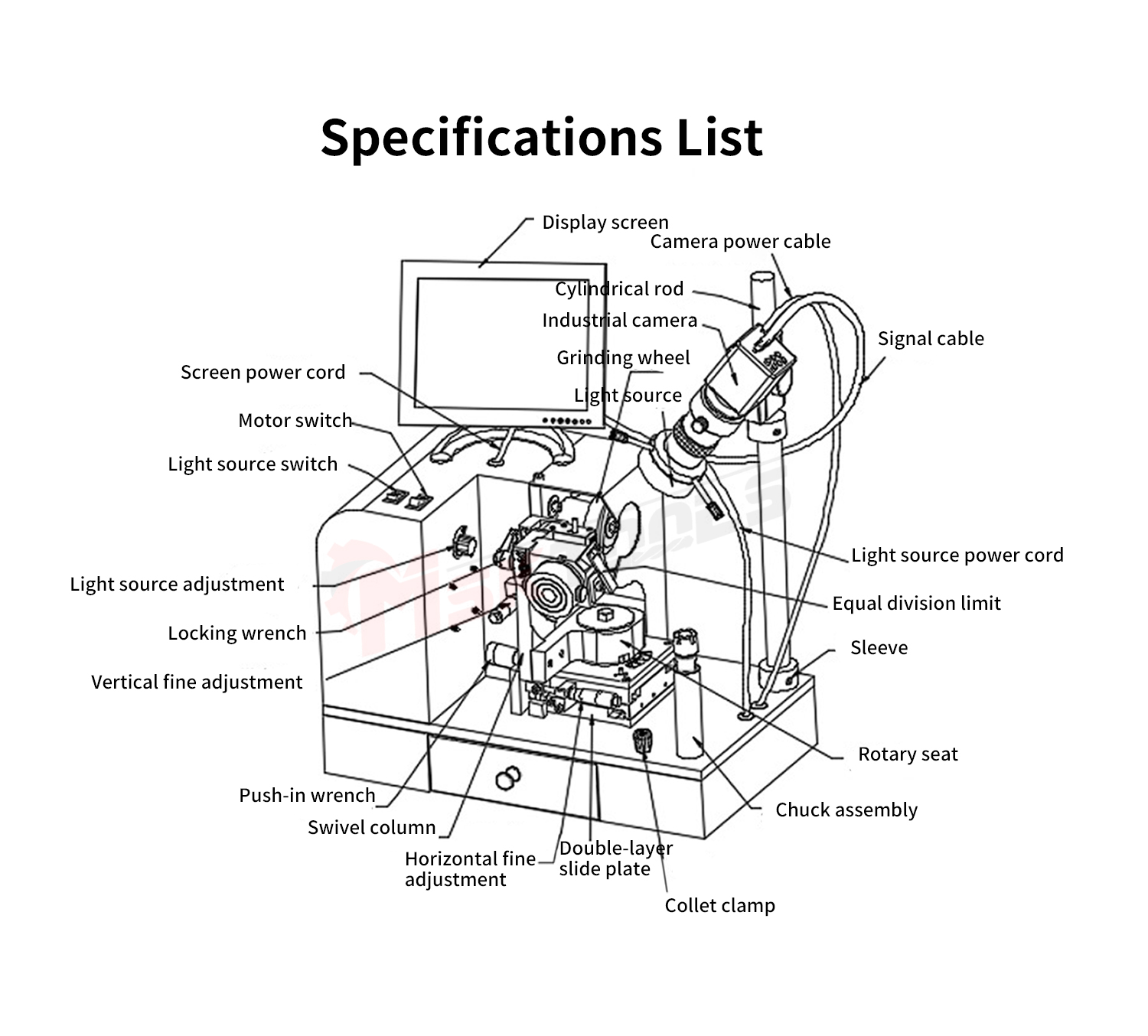

6A Drill Sharpener Machine Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6A |
| Grinding Diameter Range | φ0.8 mm – φ6 mm |
| Point Angle Adjustment | 90° – 150° |
| Motor Power | 250W |
| Spindle Rotation Speed | 4400 RPM |
| Machine Dimensions (L×W×H) | 62 × 34 × 33 cm |
| Weight | 38 kg |
| Grinding Wheel Type | CBN (for HSS) / SDC (for Carbide) – Taiwan-made |

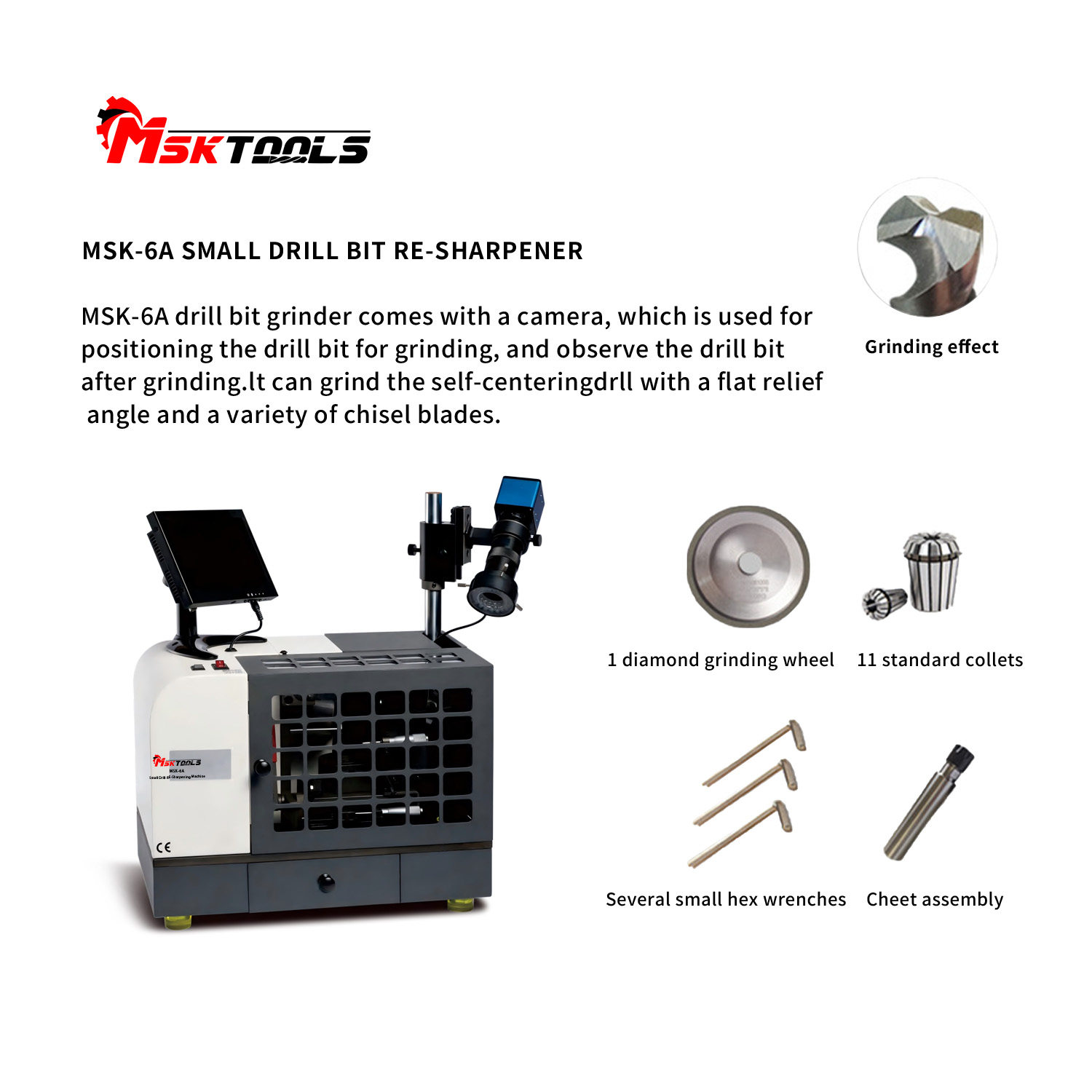

Note: Standard configuration includes 11 Type 6A collets; standard grinding range is 0.8-6.
6A drill sharpener Advantages
1. Ultra-Fast Regrinding Cycle
Time is money. The 6A completes one full grinding pass in 10 seconds, drastically reducing machine downtime and keeping your production line moving.
2. Long-Lasting, Cost-Effective Consumables

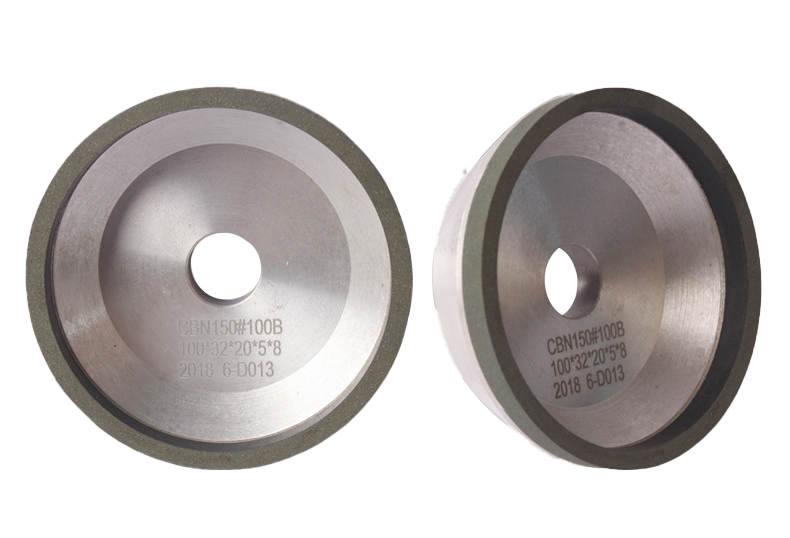

Our standard-equipment Taiwan-made diamond grinding wheels (CBN or SDC) are engineered for extreme durability. Under normal workshop usage, a single wheel delivers consistent performance for over 6 months, significantly lowering your per-bit grinding cost.
3. Energy-Saving DC Motor
Running on a standard 220V power supply, the machine employs a high-efficiency electronically controlled DC motor. It consumes minimal electricity, remains cool during prolonged operations, and contains no volatile components—making it safe and eco-friendly.
4. Truly Semi-Automatic – No Skilled Labor Required
The portable, semi-automatic design is purpose-built for ease of use. Even an operator with zero prior sharpening experience can produce professional-grade results on the very first attempt. This eliminates the need for specialized (and costly) full-time grinding technicians.
5. Compact & Workshop-Ready
With a footprint of just 62×34cm and a net weight of 38kg, this machine fits easily on any workbench. Its sturdy build ensures vibration-free operation, while the compact design saves valuable floor space.
Applications
CNC machining centers
Mold and die manufacturing
Automotive parts production
Construction and structural drilling
General equipment repair and maintenance
Quality Assurance
Every 6A unit undergoes rigorous precision testing at our factory before shipment. We ensure each machine meets strict symmetry and runout tolerances, so you receive a reliable, ready-to-work piece of equipment.
Order & Shipping Information
Packaging: Export-grade plywood case or reinforced carton with custom foam inserts.
Lead Time: 7–15 working days after order confirmation.
Warranty: 12-month coverage on the motor and electronic control system.
About Us
Established in 2015, MSK (Tianjin) International Trading Co., Ltd. is a certified ISO 9001 manufacturer and supplier, recognized for its rigorous quality management systems. We combine precision engineering with advanced manufacturing assets, including German‑built SACCKE 5‑axis grinding centres, ZOLLER 6‑axis tool measuring systems, and PALMARY precision grinders from Taiwan. This equipment enables us to produce consistently high‑grade carbide cutting tools for demanding industrial applications.
Our product portfolio centres on solid carbide solutions – we engineer and produce end mills, drills, reamers, taps, and custom‑designed special tools. Every item is crafted to meet specific machining requirements, whether for general purpose use or high‑speed, high‑feed operations.
We operate on a triple‑pillar philosophy: Service, Quality, and Performance. Our aim is not merely to supply tools, but to offer complete process solutions that raise machining efficiency, shorten cycle times, and lower overall production costs. We work closely with clients to understand their workflows, then tailor our tooling and recommendations accordingly.
FAQ
A1: MSK (Tianjin) Cutting Technology Co., Ltd was established in 2015. We are an ISO 9001-certified manufacturer (certified by Rheinland), specializing in high-performance CNC cutting tools. Our production relies on German SACKE five-axis grinding systems, a ZOLLER six-axis inspection center, and Taiwanese PALMARY grinding machines, enabling us to deliver precision-engineered tooling solutions.
A2: We are a direct manufacturer of carbide cutting tools, not a trading intermediary.
A3: Absolutely. If you have a designated forwarder within China, we will arrange delivery to them promptly.
A4: Our primary accepted payment method is bank transfer (T/T).
A5: Yes. We fully support OEM orders and product customization. Additionally, we provide label design and printing services as part of our OEM offering.
A6:
Value-driven pricing – You get premium quality tools at a fair and reasonable cost.
Fast turnaround – Our team responds within 48 hours with quotes and technical clarifications.
Guaranteed quality – We stand behind every product with a 100% quality assurance commitment.
Ongoing support – We provide after-sales service and on-demand technical guidance tailored to your specific needs.
