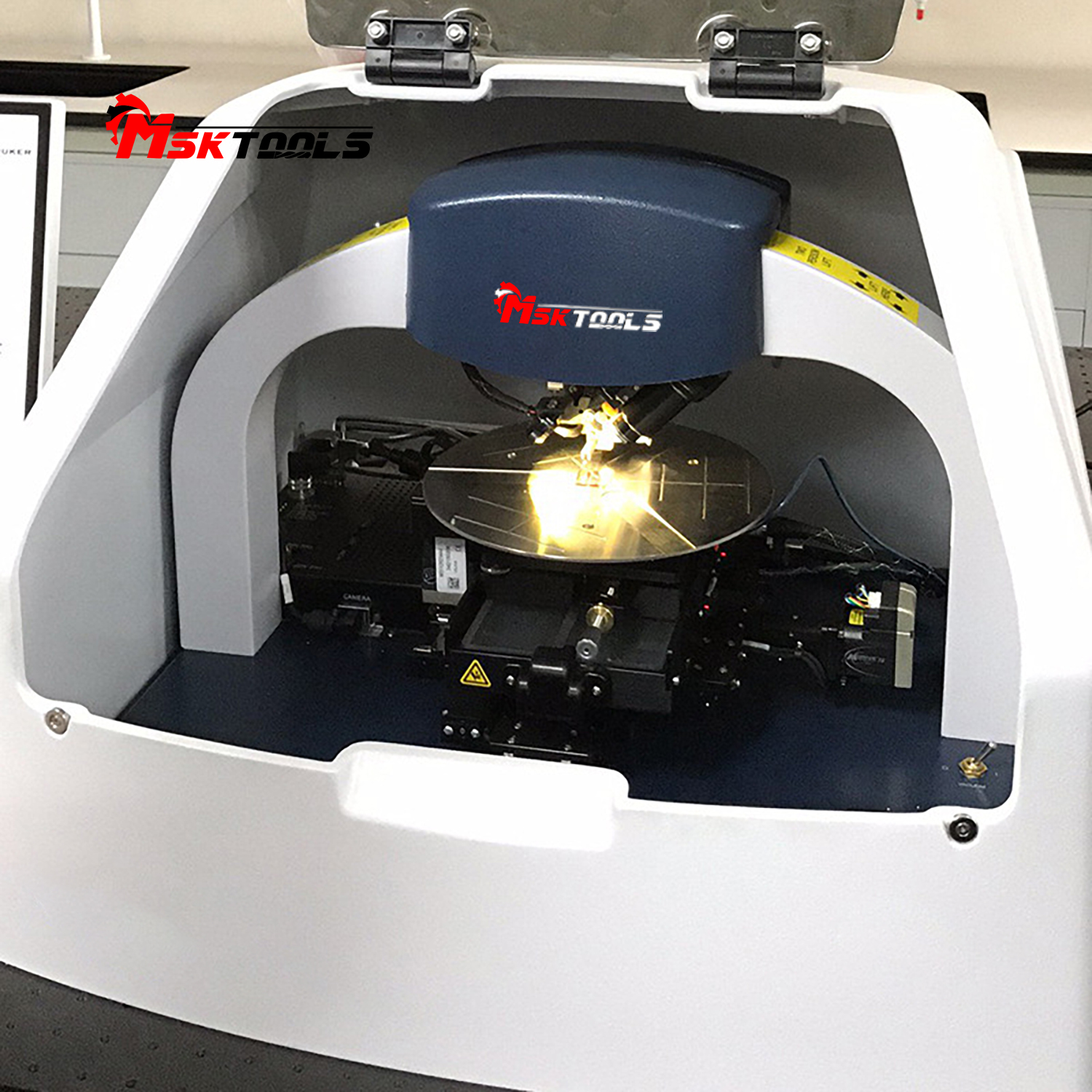

As industries push toward smaller features and tighter tolerances, traditional surface profilers often force users to choose between resolution, speed, or ease of use. MSK CNC Tools today announced its latest Step instrument – a contact‑type stylus surface profiler engineered to eliminate that compromise. Designed for semiconductor fabs, solar panel lines, MEMS research, and precision optics manufacturing, this Step instrument brings laboratory‑grade repeatability to production floors without the complexity.
“Engineers need reliable data, not headaches,” said a senior MSK product manager. “Our Step instrument combines exceptional step height reproducibility with an intuitive workflow – so you spend less time calibrating and more time improving your process.”
Why the Step Instrument Outperforms Conventional Profilers
Unlike optical methods that struggle with highly reflective or rough surfaces, the Step instrument uses a diamond stylus that physically tracks surface peaks and valleys. This contact method provides direct, repeatable measurements of step height, surface roughness, and 3D topography – regardless of material color or texture.
Key advantages that set this Step instrument apart:
- Unmatched Repeatability for Step Height
Even on demanding nanometer‑scale steps, the instrument delivers exceptional consistency – critical for monitoring deposition, etching, and thin‑film stress in semiconductor production. - Rock‑Solid Single‑Arch Design
The rigid single‑arch frame minimizes the impact of ambient vibrations and temperature drift, ensuring stable measurements even in busy shop floors or cleanrooms. - Fast Scanning, No Sacrifice
A unique direct‑drive stage accelerates data acquisition without compromising resolution. Users can capture fine details over long scan lengths in a fraction of the time. - Low‑Force Measurement for Delicate Materials
With an optional low‑force sensor, the Step instrument gently scans soft surfaces like photoresist, medical coatings, or microfluidic channels – no damage, just accurate profiles. - Vision64 Software – Smarter, Faster, Easier
The 64‑bit parallel processing software loads 3D topography data almost instantly. Automated filtering, pass/fail criteria, and multi‑region analysis reduce manual work and eliminate guesswork.
Where the Step Instrument Delivers Immediate Value
Semiconductor Wafer Processing
From etch depth uniformity to thin‑film stress and ITO thickness on touchscreens, the Step instrument helps fab engineers quickly verify critical parameters. Automated multi‑point testing across full wafers ensures high yields and lower rework costs.

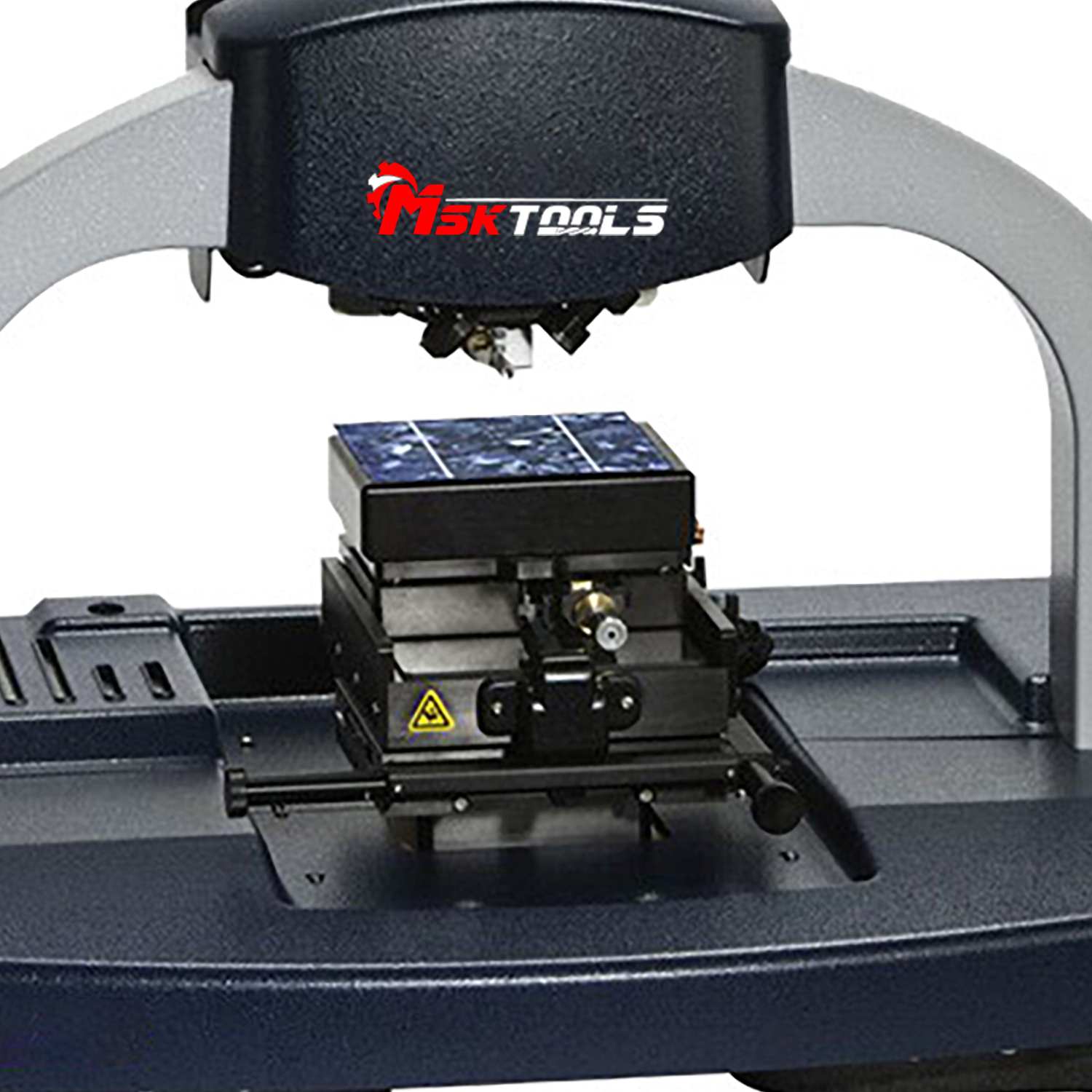

Solar Cell Silver Grid Line Analysis
Monocrystalline and polycrystalline solar panels rely on conductive silver grid lines. The Step instrument precisely measures line height, width, and continuity – enabling manufacturers to optimize expensive silver paste usage while maintaining energy conversion efficiency.
Surface Roughness for Medical & Automotive
Orthopedic implants (hydroxyapatite coatings), precision machine parts, and aerospace components require controlled roughness. The Step instrument provides rapid roughness analysis with customizable acceptance limits, supporting both R&D and quality control.
MEMS & Microfluidics
With a large vertical range and low‑force scanning, the Step instrument can profile tall micro‑structures and fragile photoresist layers without deformation – essential for validating micro‑channels, cantilevers, and lab‑on‑a‑chip devices.
Designed for Real‑World Productivity
The Step instrument is packed with features that save time and reduce errors:
- Automatic Tip Alignment – Change probes in seconds without manual fiddling. The system self‑aligns, eliminating a common source of inconsistency.
- Single Sensor for All Jobs – No need to swap sensors between low‑force and wide‑range measurements; one sensor does both.
- Motorized Stages (Optional) – Automated X‑Y and rotary stages enable hands‑off multi‑site measurement, boosting throughput in high‑volume QC.
- Vision64 Automation – Set up measurement routines, apply pass/fail limits, and generate reports with a few clicks. Perfect for production environments.
Pricing, Availability & Next Steps
The Step instrument is available immediately from MSK CNC Tools. Because each system is configured to customer requirements (probe type, stage options, software modules), the price shown on the product page is a deposit only – please contact MSK for an exact quote.
To request a quote, or a product brochure:
- Email: molly@mskcnctools.com
- Phone: +0086-13602071763
What’s included with every Step instrument:
✔ Vision64 operation & analysis software
✔ Standard stylus probe (customer‑specified)
✔ Calibration artifact
✔ Vibration‑damping kit
Volume pricing is available for semiconductor fabs, research institutes, and solar manufacturers.
