High Precision Portable 3D Coordinate Measuring Machine | Articulated Arm CMM for Industrial Inspection & Reverse Engineering

Introducing our advanced Portable 3D Coordinate Measuring Machine (CMM) —a versatile articulated arm solution engineered for high-precision measurement across complex industrial applications. Unlike traditional stationary CMMs, this lightweight and flexible system enables accurate on-site inspection and real-time process control.

Resolution: 0.02mm

Brand: MSK

Transmission method: USB 3.0

Send email to us

Product Detail

Product Tags

Ordering Instructions

Due to the special nature of the product, the price shown on the page is a deposit price, not the actual price. Please contact customer service for a quote.

Orders placed directly without prior contact cannot be shipped! Thank you for your cooperation! For more product information, please contact customer service to receive product brochures.

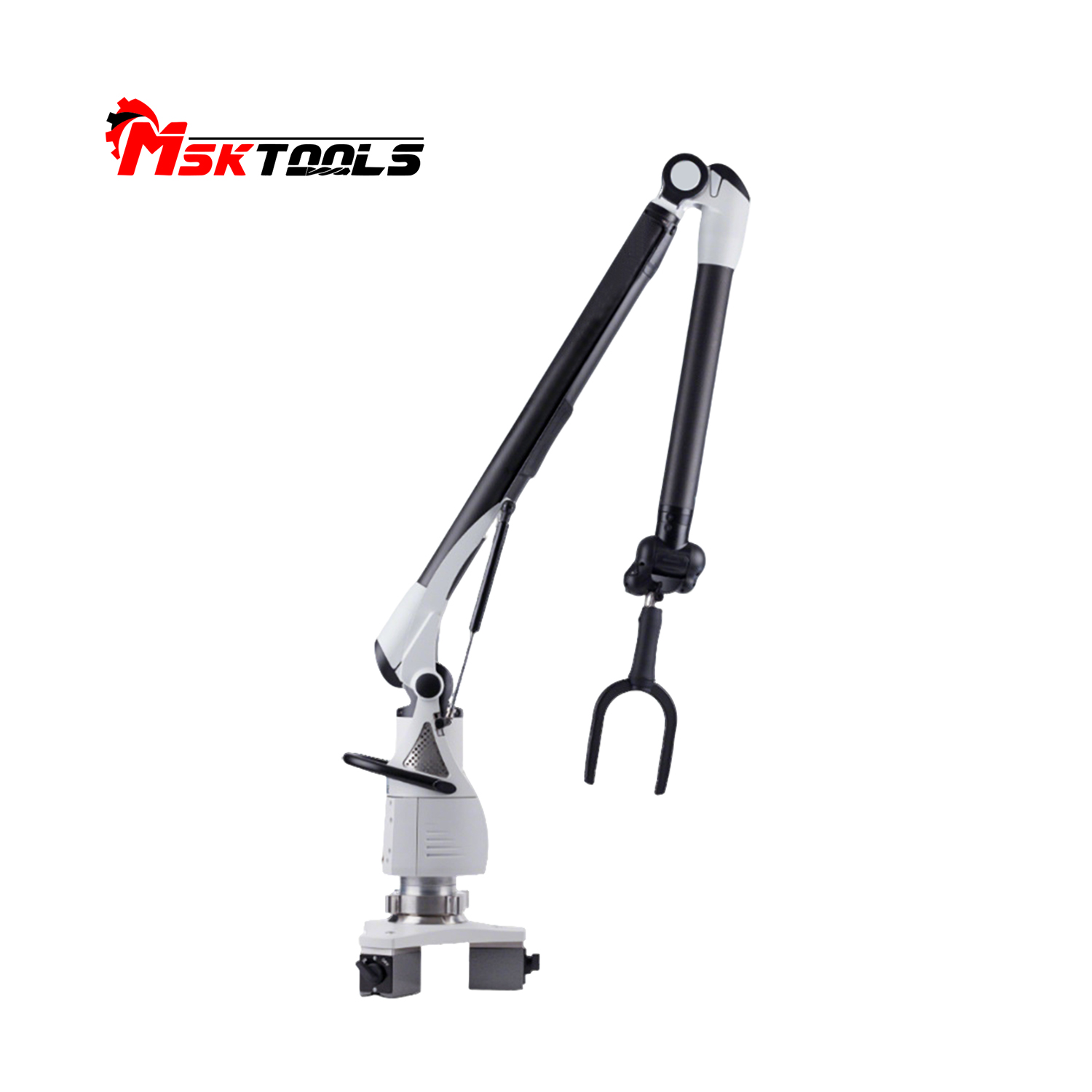

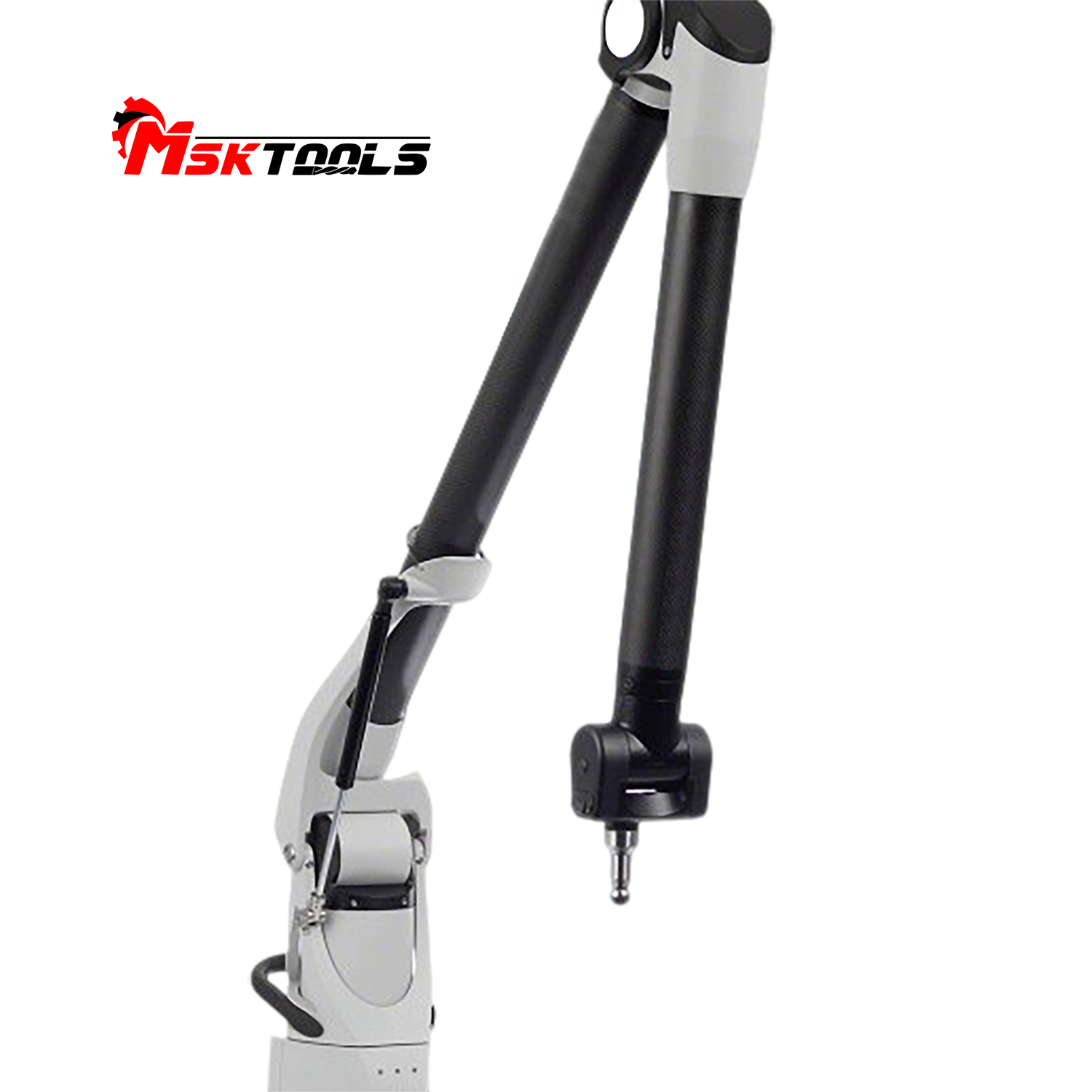

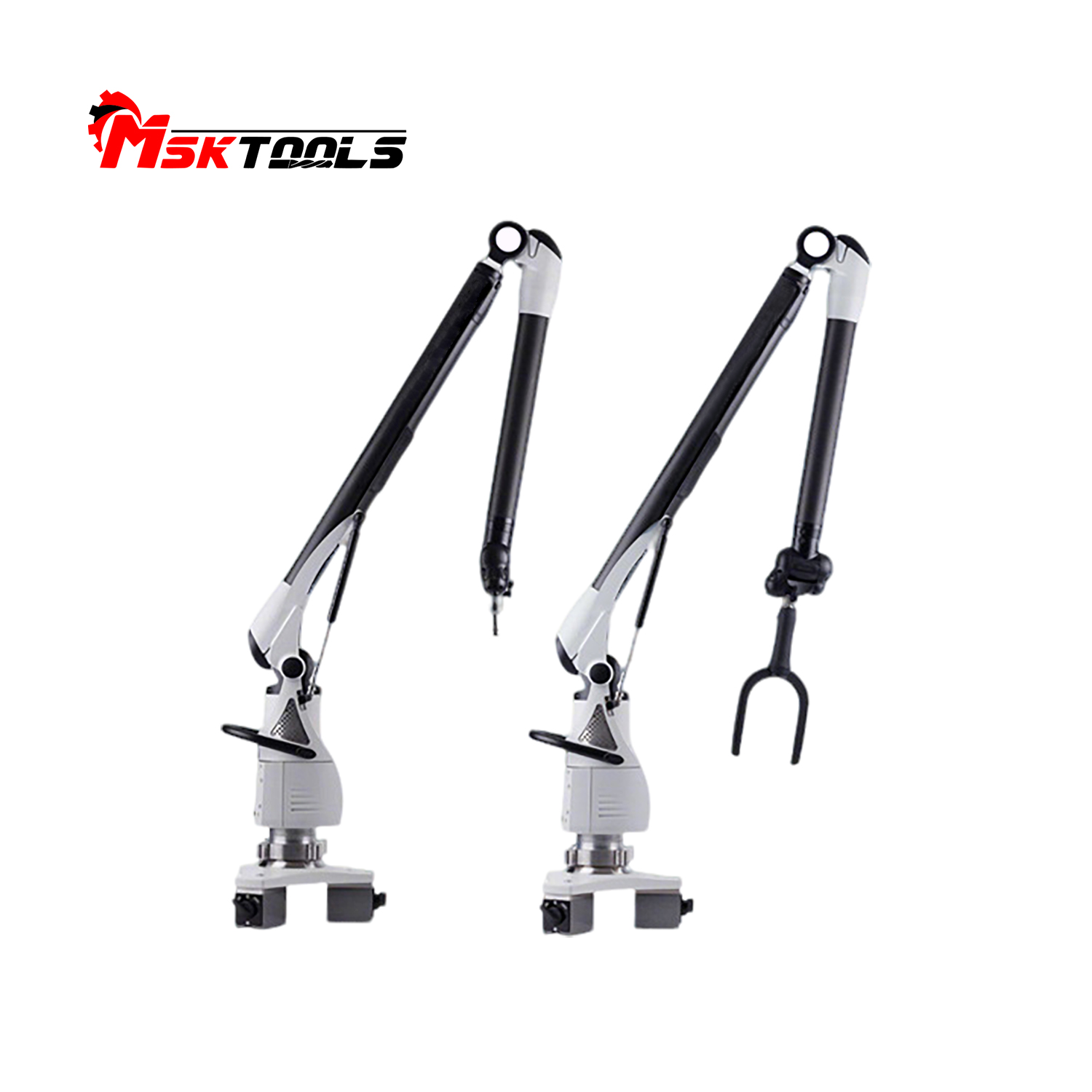

Articulated Measurement Arm

Six Major Advantages

Stable Performance
Fast Data Transfer
Automatic Calibration
Accurate Measurement
Rapid Response
Real-time Monitoring

Key Capabilities:

Multi-Axis Measurement: Operates within X, Y, Z and additional rotational axes to capture intricate geometric shapes, lengths, and angular dimensions.

Advanced Data Acquisition: Integrates multi-sensor technology for reliable collection and processing of measurement data.

Superior Flexibility: Articulated arm design offers exceptional maneuverability, making it ideal for measuring hard-to-reach features on large or complex workpieces.

Stable Performance, Compact Design

High performance, compact design, small size, big impact, easily handling various application scenarios.

Intelligent Sensing, Convenient Operation

Built-in temperature sensor compensates for measurement errors caused by temperature changes; continuously monitors the operating environment to ensure testing performance.

Product Information

ABSOLUTE ARM 6-AXIS ACCURACY AND SIZE SPECIFICATION

	Model	E UNI 1	P SIZE 2	L DLA 3	P FORM 4	Weight	Max.reach
83 Series	8312-6	0.024 mm	0.010 mm	0.021 mm	0.018mm	12.0kg	1.49m
	8320-6	0.040 mm	0.013 mm	0.042 mm	0.026 mm	78kg	2.23m
	8325-6	0.046mm	0.020 mm	0.053 mm	0.038 mm	8.1 kg	2.73 m
	8330-6	0.067 mm	0.029 mm	0.071 mm	0.054 mm	8.4kg	3.23m
	8335-6	0.085 mm	0.038 mm	0.090 mm	0.063 mm	8.7 kg	3.73 m
	8340-6	0.100 mm	0.046mm	0.105 mm	0.077 mm	9.0kg	4.23 m
	8345-6	0.120 mm	0.052 mm	0.110 mm	0.086 mm	9.3 kg	4.73m

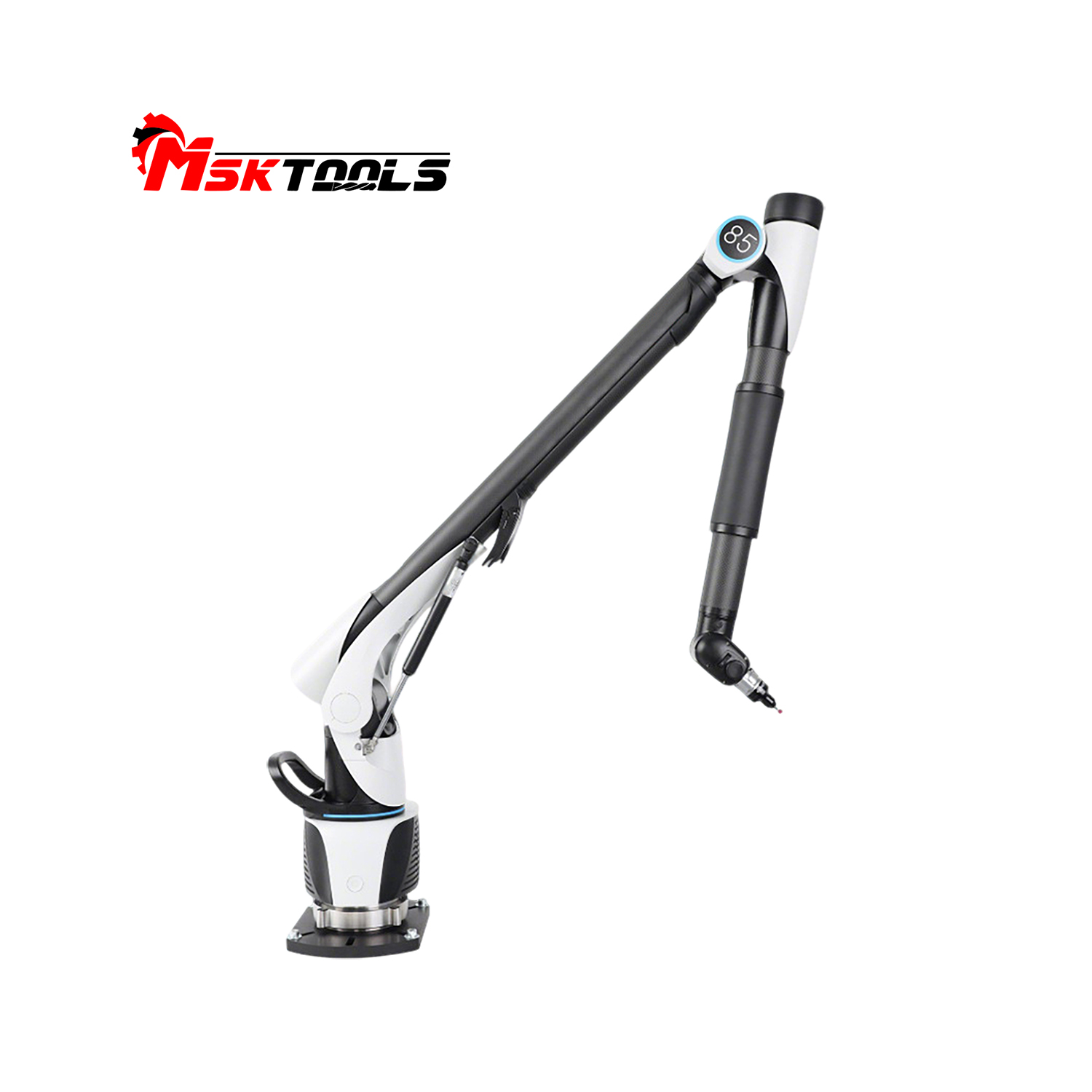

85 Series	8512-6	0.019 mm	0.006 mm	0.016 mm	0.012 mm	12.2kg	1.49m
	8520-6	0.023 mm	0.008 mm	0.030 mm	0.017 mm	8.0kg	2.23 m
	8525-6	0.028 mm	0.010 mm	0.035 mm	0.020 mm	8.3kg	2.73m
	8530-6	0.042 mm	0.015 mm	0.053 mm	0.030 mm	8.6kg	3.23 m
	8535-6	0.055 mm	0.020 mm	0.069 mm	0.040 mm	8.9 kg	3.73 m
	8540-6	0.067 mm	0.024 mm	0.085 mm	0.045 mm	9.2kg	4.23m
	8545-6	0.080 mm	0.028 mm	0.102 mm	0.050 mm	9.5kg	4.73 m
87 Series	8725-6	0.026 mm	0.009 mm	0.032 mm	0.018 mm	8.3 kg	2.73m
	8730-6	0.039 mm	0.014 mm	0.048 mm	0.028 mm	8.6kg	3.23 m
	8735-6	0.052 mm	0.018 mm	0.064 mm	0.037 mm	8.9 kg	3.73 m
	8740-6	0.063 mm	0.022 mm	0.079 mm	0.041 mm	9.2kg	4.23m
	8745-6	0.074 mm	0.026 mm	0.094 mm	0.046 mm	9.5kg	4.73m

Typical Applications:

Widely used in the mechanical, automotive, aerospace, and mold manufacturing industries for inspecting:

Gearboxes and engine components

Turbine blades and vanes

Complex molds and dies

Cams and precision parts

Why Choose Our CMM:

High accuracy for dimensional and geometric tolerance verification

Portable design brings the lab to the shop floor

Suitable for reverse engineering and quality control

Bring precision measurement directly to your workpiece with our advanced portable CMM solution. Contact us for more details or a customized quotation.
