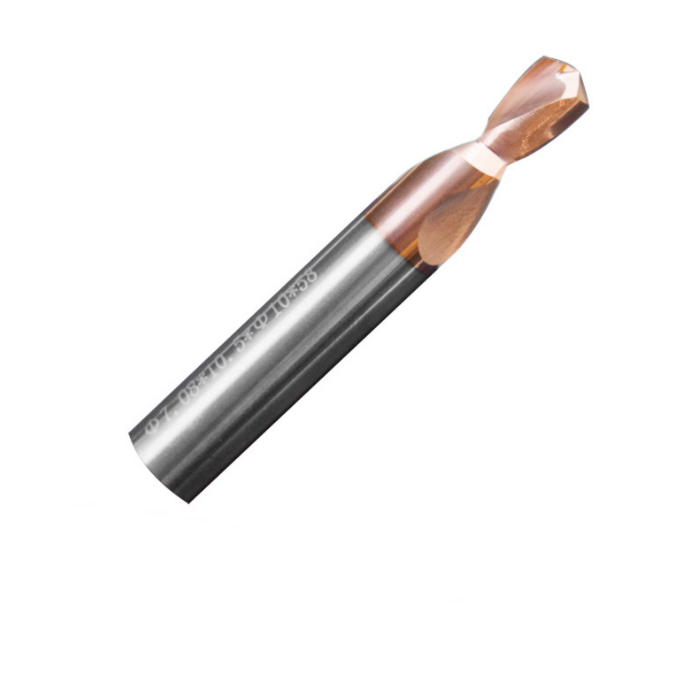

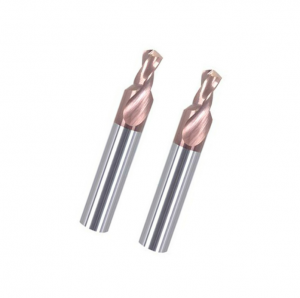

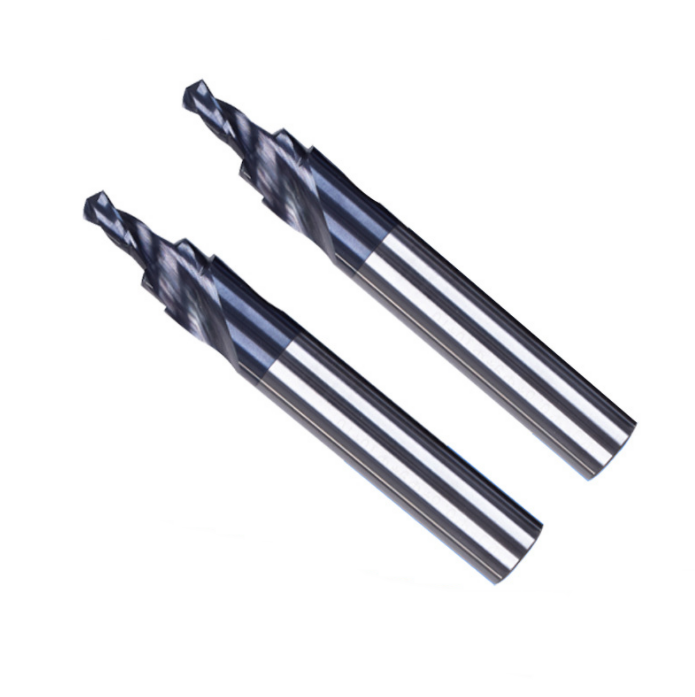

Tungsten Carbide Step Drill Bit

Drilling and chamfering
Smooth chip evacuation
Preferred tungsten steel
Sharp and practical


Product Detail

Product Tags

step drill bits (4)

Features:

Drilling and chamfering
Smooth chip evacuation
Preferred tungsten steel
Sharp and practical

step drill bits (3)

step drill bits (4)

step drill bits (2)

Advantage:

1. Large chip flutes can effectively ensure smooth chip removal and improve machining efficiency
2. Nano-coating on the cutting edge, nano-coating can reduce the loss of the tool, the tool is more wear-resistant, reduces the number of tool changes and also has the function of heat insulation
3. Cemented carbide
Using fine-grained tungsten steel base material, it has higher hardness and better bending strength, the tool is more wear-resistant, not easy to chip and break, and has a long service life
4. Easy to operate chamfering
The chamfered shank layout is easier to clamp.

Tips for Taking Care of Step Drill Bit

If you can manage to take proper care of your tool, it will serve the purpose for a long time. This way, you won’t have to spend extra money on buying a new kit soon. Now, is it too challenging to take good care of a step drill bit kit? Not at all, it’s as easy as it can be. Now, let’s learn how to do it right.

Step 1: You need to clean the bits at a regular interval during the work. Otherwise, it will be prone to damage faster than expected.
Step 2: You have to wipe the bit once you are done with the work.
Step 3: Scrub any debris off the bits by using a toothbrush.
Step 4: You can apply machine oil afterward to the bits.

Hand type Straight handle
Material Carbide
Workpiece Material Metal materials such as iron, copper, aluminum, alloy steel, cast iron, etc.
Brand MSK
Function Drill stepped holes, counterbore chamfers
Small Head diameter(mm) 3.4-14.0

step drill bits (5)

D1(mm) D2(mm) L(mm) L1(mm) L2(mm)
3.4 6.5 65 35 13
4.5 8.0 75 42 18
5.5 9.5 85 50 22
6.6 11.0 90 53 25
9.0 14.0 95 53 28
11.0 17.5 105 63 30
14.0 20.0 110 68 32

Use:

cxuytiu
Aviation Manufacturing

nbviytuiMachine Production

jhfkjkfCar manufacturer

bvcityui
Mold making

cvuityo
Electrical Manufacturing

gfdsLathe processing
