In the demanding world of CNC machining, pushing a drill bit to 5x its diameter in depth is the ultimate test of engineering. At this critical threshold, the conversation shifts from simple chip evacuation to a battle against physics: vibration, deflection, and harmonic chatter. These forces are the archenemies of precision, often leading to oversized holes, premature insert failure, and unplanned downtime.

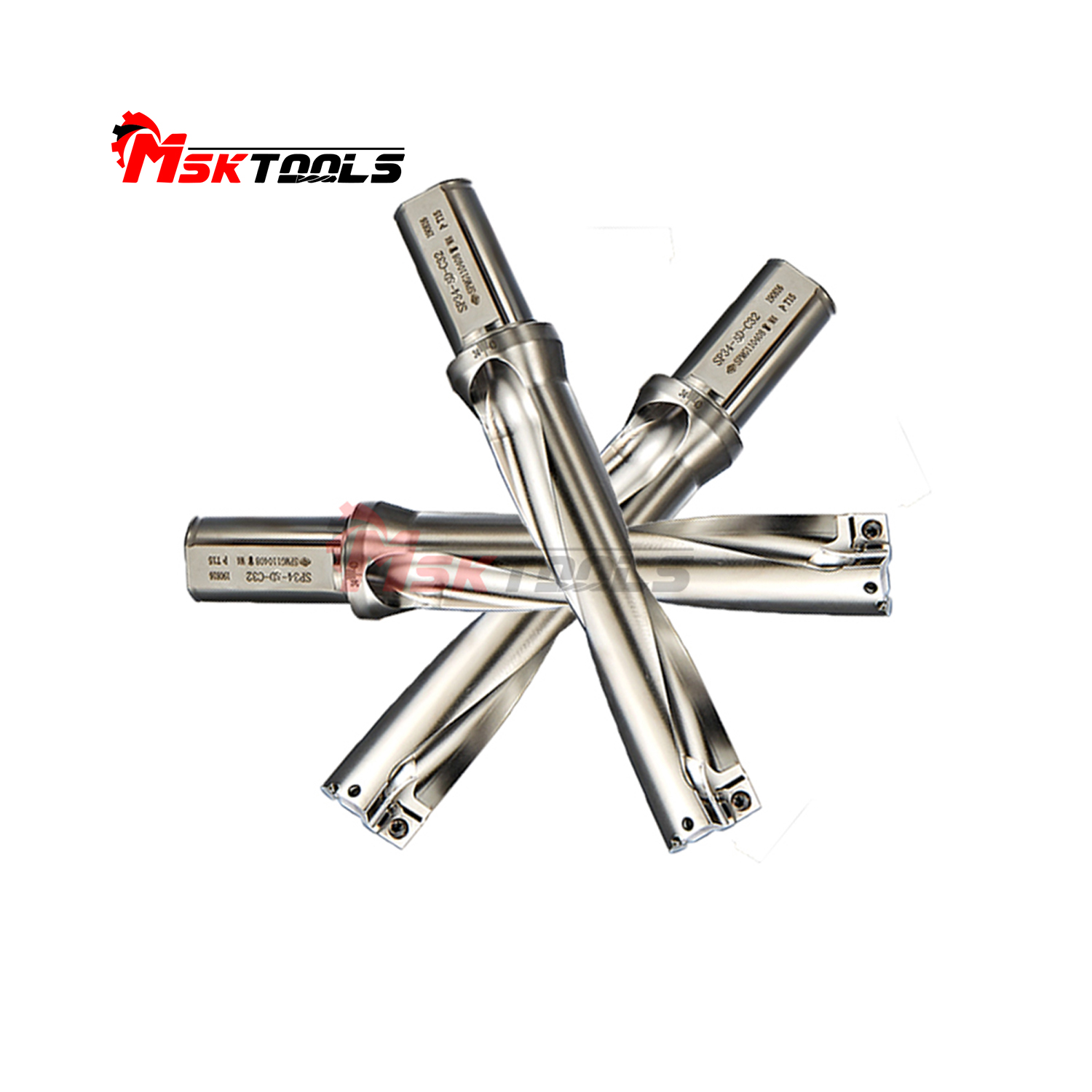

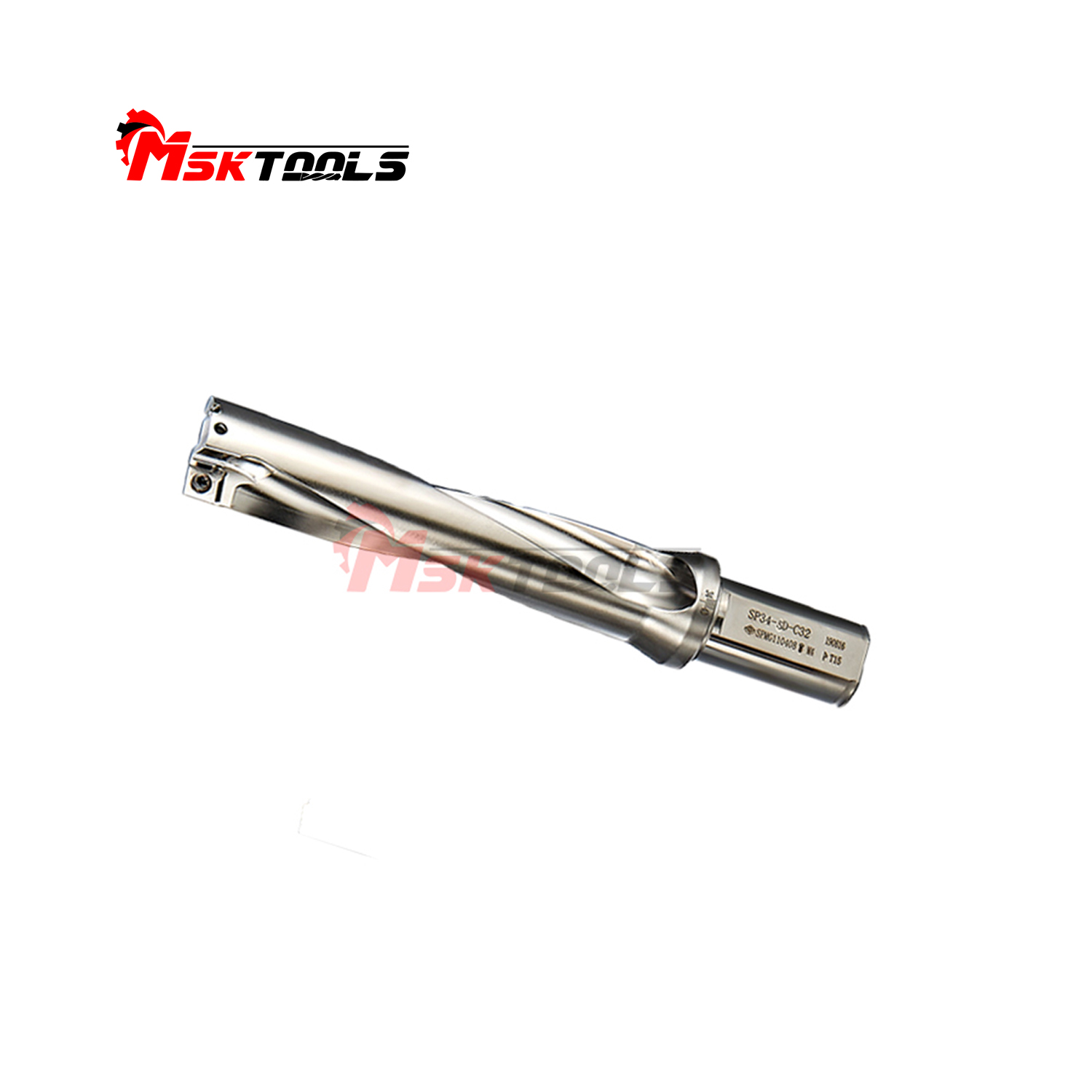

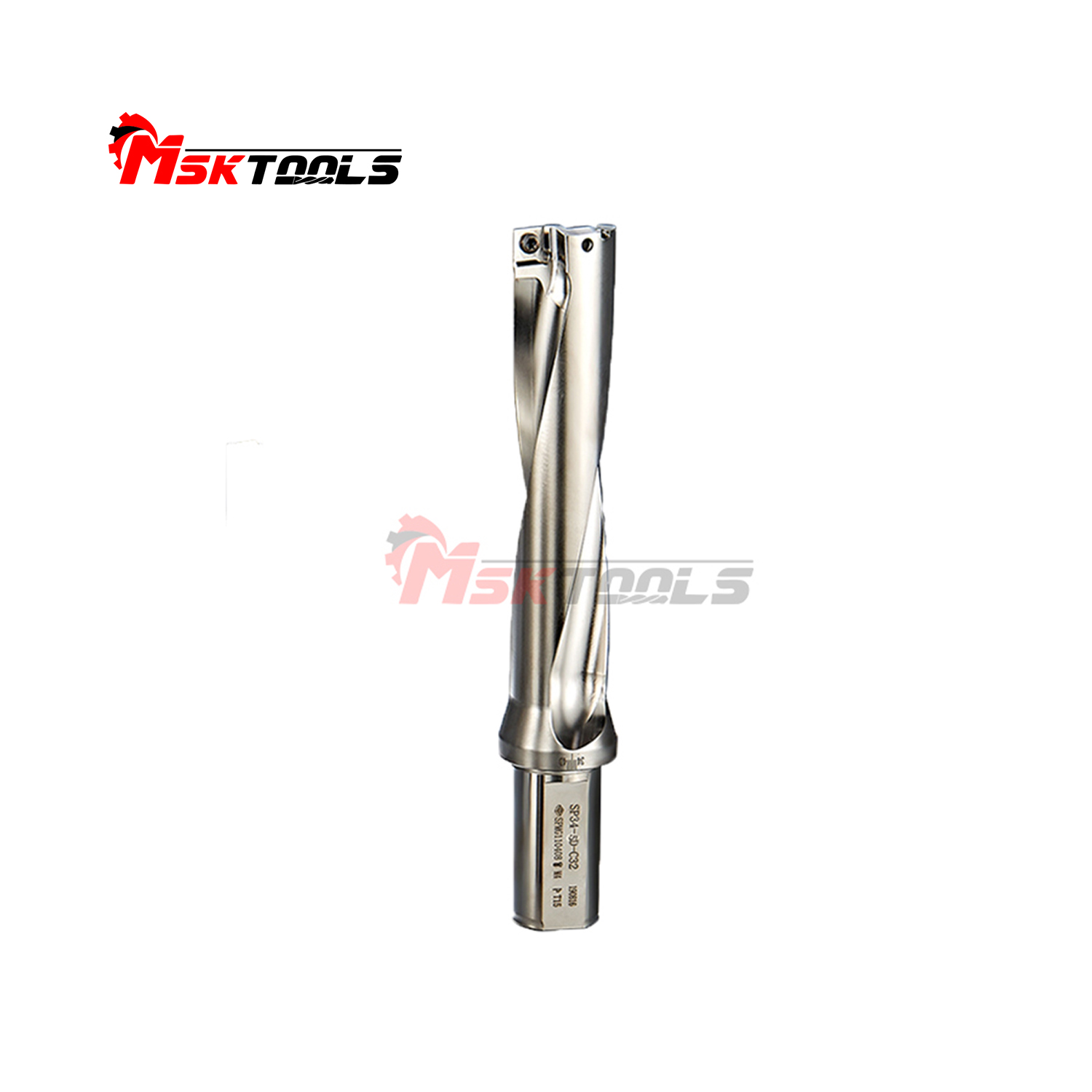

While many tool manufacturers offer "deep-hole" solutions, few address the root cause of failure with the same holistic engineering approach as the SP U-Drill from MSK CNC Tools. This isn't just another indexable drill; it is a meticulously designed system where every component works in concert to deliver static and dynamic rigidity that sets a new industry benchmark.
The Core Philosophy: Rigidity is Not an Option, It's a Requirement
The conventional approach to improving a u drill bit often involves simply adding more carbide or increasing the shank diameter. However, true rigidity is a product of intelligent geometry. The SP U-Drill distinguishes itself through three key design pillars that directly counteract the forces that compromise accuracy and tool life.
1. A Beefier Core for Unwavering Stability
The foundation of any stable drilling operation is the core cross-section. MSK engineers have increased the shank core thickness of the SP by 12-15% compared to competing products. This isn't just a minor adjustment; it significantly increases the section modulus, which is the mathematical measure of a component's resistance to bending. The result is a dramatic reduction in radial runout, ensuring that as the tool engages with the workpiece, the cutting forces are met with an immovable object.
2. Hydraulic Damping Through Intelligent Coolant Flow
Many operators view coolant simply as a chip-clearing agent. In the SP U-Drill bit, it serves a dual purpose. The tool features CFD-optimized dual-spiral internal coolant channels. These are not just straight lines bored through the steel; they are precisely calculated pathways that deliver coolant at the optimal pressure directly to the cutting edge. Beyond heat dissipation, this high-pressure flow creates a hydraulic damping effect within the shank itself, absorbing micro-vibrations and stabilizing the cutting process before they can escalate into chatter.
3. Coating Synergy for Smoother Cutting Action
Rigidity isn't just about the steel body; it's also about the cutting interface. The SP uses inserts with a state-of-the-art PVD nano-composite coating and a specialized edge honing process. This combination reduces micro-chipping and promotes a smoother, more consistent shearing action. Smoother cutting forces equal less mechanical shock to the tool body, preserving the system's overall stability and prolonging insert life.
Proven Performance: The Data Speaks Volumes
To validate these design choices, MSK conducted rigorous controlled cutting tests on 42CrMo steel (28-32 HRC). The results compared to a conventional 5xD indexable drill paint a clear picture of the SP's superiority.
| Performance Metric | Conventional 5xD Drill | MSK SP U-Drill | Improvement |
|---|---|---|---|
| Radial Runout (at 5xD) | 0.08 – 0.12 mm | ≤ 0.04 mm | >50% reduction |
| Hole Tolerance Stability (CPk) | 1.0 – 1.2 | ≥ 1.6 | Substantially higher |
| Insert Life (meters drilled) | 8 – 12 m | 15 – 20 m | +60% longer |
| Vibration Amplitude | High fluctuation | Low steady-state | ~30% lower |
These metrics translate directly to the shop floor. A CPk value above 1.6 signifies a remarkably capable and reliable process, meaning fewer rejected parts and less time spent compensating for tool wear.
The Economic Advantage: More Than Just a Tool
The SP-5XD, which forms the core of the SP U-Drill range, is engineered to be a cost-effective workhorse. Unlike solid carbide drills that are prone to catastrophic failure and costly regrinding, the SP uses indexable inserts. When an insert wears out, you simply index or replace it.
Is the SP U-Drill Right for Your Operation?
If your production involves creating precise holes in automotive components, hydraulic valve bodies, or heavy machinery structural parts, the SP is a game-changer. To maximize its potential, ensure your machine has a spindle taper of BT40 or above and at least 15 kW of power. The tool is designed to operate within a cutting speed range of 80 – 220 m/min and a feed rate of 0.08 – 0.25 mm/rev, offering flexibility to optimize for various materials.
Conclusion
The SP U-Drill is more than a cutting tool; it is a testament to the power of focused engineering. By prioritizing rigidity through a larger core, active hydraulic damping, and optimized cutting action, MSK has delivered a solution that does not just drill holes but guarantees precision, predictability, and profitability.
Ready to transform your deep-hole drilling operations? Explore the full technical specifications and discover how the SP-5XD can elevate your machining capabilities.
