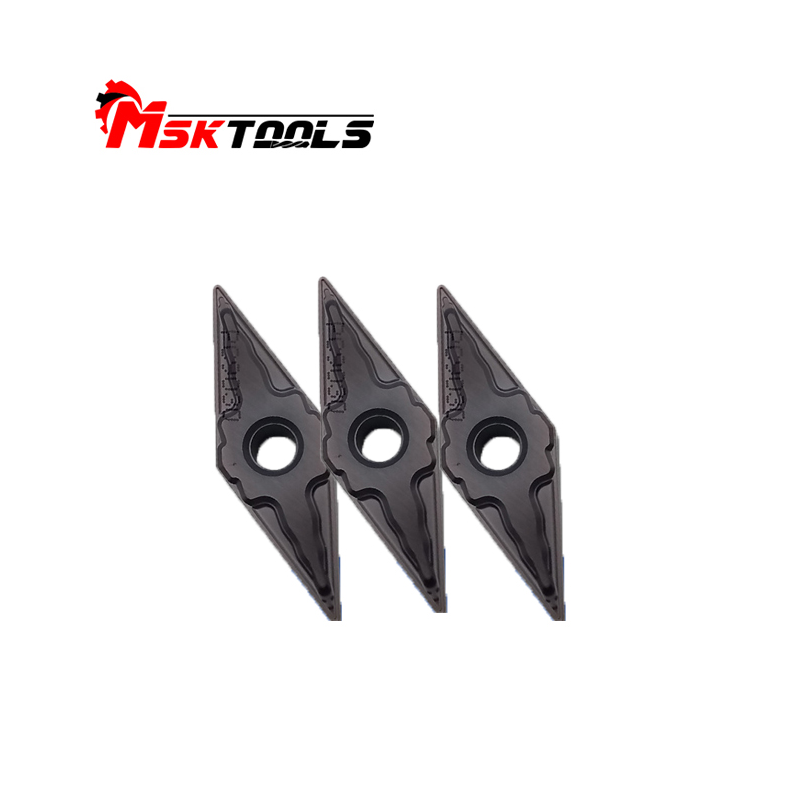

In the daily operations of a machine shop, the reliability of cutting tools directly impacts production schedules and part quality. For external turning operations, particularly on steel and stainless steel workpieces, the Carbide Lathe Inserts VNMG160408HM has proven to be a consistent and robust performer. This insert is engineered to handle the demands of both roughing and finishing passes, offering a balance of toughness and wear resistance that machinists can count on.
Understanding the VNMG160408HM Geometry
The designation of this insert provides key insights into its design and intended use. The "V" indicates a diamond shape with an 80-degree included angle, which provides a strong cutting point. The "N" signifies a 0-degree clearance angle, making it suitable for a wide range of tool holders. The "M" denotes the tolerance class, ensuring dimensional accuracy for consistent indexing.
The most significant feature for many users is the "08" nose radius (approximately 0.8mm or 0.031 inches). This radius is a deliberate design choice. A larger nose radius like this offers several practical benefits:
Increased Edge Strength: It reduces the risk of chipping or breakage, especially during interrupted cuts or when machining materials with scale or hard spots.
Improved Surface Finish: The larger radius creates a "wiper" effect on the workpiece, generating a smoother surface in a single pass, which can reduce or eliminate the need for subsequent finishing operations.
Higher Feed Rate Capability: With a stronger edge, operators can confidently increase feed rates to boost productivity without sacrificing tool life.
The "HM" designation refers to the specific chipbreaker geometry and grade. This design is optimized to produce short, well-controlled chips that are easily evacuated from the cutting zone. Effective chip control is crucial for preventing long, stringy chips from tangling around the tool or damaging the machined surface, leading to safer and more efficient machining cycles.

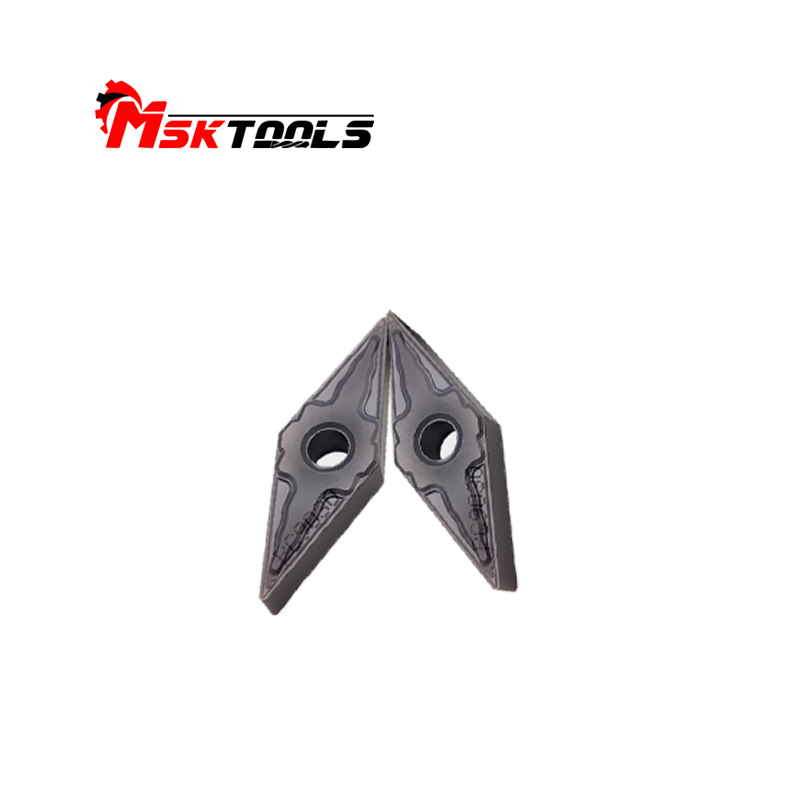

Carbide Turning Inserts Material and Construction
The performance of the VNMG160408HM insert comes from its substrate material: high-quality hard alloy (cemented carbide) . This material is selected for its exceptional combination of properties, including high hardness for wear resistance, good strength and toughness to withstand impact, and resistance to the heat and corrosion generated during cutting. These characteristics make it a reliable choice for cutting common steel parts, as well as more challenging materials like stainless steel and mold steels. Its impact resistance also helps prevent the common issue of material "sticking" to the cutting edge, which can degrade surface quality.
Practical Applications and Specifications
This insert is primarily designed for external turning (OD turning) and facing operations on a variety of components, from simple shafts to more complex parts. Its versatility and durability make it a preferred choice for general machining, job shops, and high-volume production environments.
Below is a summary of its key specifications based on the product information:
| Specification | Detail |
|---|---|
| Product Name | Turning Insert |
| Model Number | VNMG160408HM |
| Primary Usage | External Turning / Facing |
| Cutting Material | Steel Parts, Stainless Steel, Castings |
| Material Type | Carbide (Hard Alloy) |
| Coating | Uncoated |
| Typical Hardness | HRC 40-60 (Application dependent) |
| Key Advantages | Impact Resistance, Wear Resistance, Good Chip Removal |
| Packaging | 10 pieces / Box |
| MOQ | 10PCS |
Making the Right Choice for Your Shop
Selecting the Carbide Lathe Inserts VNMG160408HM means choosing a tool that prioritizes durability and consistent performance. Its robust nose radius, effective chipbreaker, and wear-resistant carbide substrate make it a valuable asset for any machinist looking to achieve reliable results in steel and stainless steel turning. It represents a practical, no-nonsense solution for improving machining efficiency and part quality.
