Stainless steel has a reputation. Ask any machinist who has chased a thread in 304 or 316, and they will tell you the same thing: it’s gummy, it work-hardens if you look at it wrong, and standard inserts can burn up faster than expected. That’s exactly why choosing a dedicated turning insert for stainless steel matters. It’s not just about getting the job done — it’s about getting it done with repeatable accuracy, fewer indexing stops, and a surface finish that doesn't need a rework pass.
At MSK, we’ve built our threading insert lineup to tackle precisely this challenge. Part of our premium CNC lathe carbide inserts kit, these tools are purpose-designed for turning operations where heat, adhesion, and edge buildup are the biggest enemies. Let’s break down what makes them different — and why they deserve a slot in your tool carousel.
What Makes a Good Turning Insert for Stainless Steel?
The short answer is geometry, grade, and consistency. When you’re threading stainless steel, you need more than a sharp edge. You need controlled chip flow, low cutting forces, and a substrate tough enough to resist micro-chipping while staying hard under high temperatures.

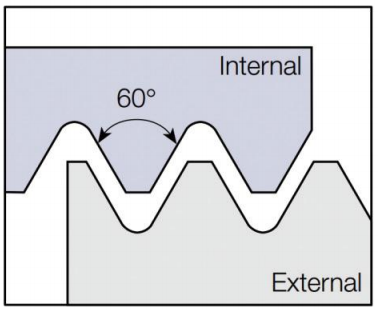

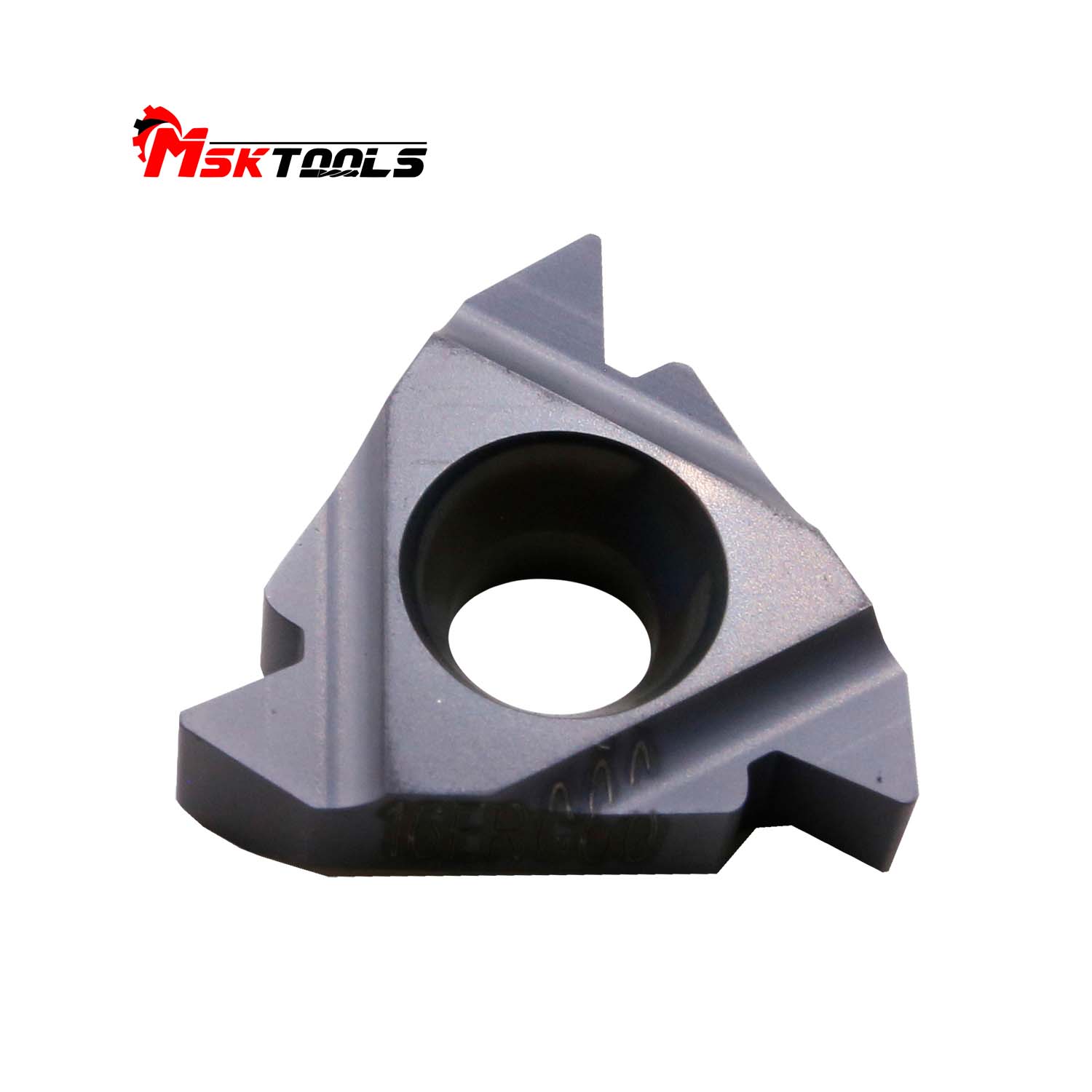

Our solution begins with a high-quality cemented carbide substrate—the core of our manufacturing process—which ensures that every 60° universal threading insert is completely consistent, with each one identical to the next. The localized geometry of the top contour reduces contact pressure and helps break up chips before they can wrap around the shank—a common problem when machining tough stainless steel.
These inserts are available as partially profiled threading inserts, meaning one insert covers a range of pitches. This reduces the number of tools you need to stock, especially if you run different stainless alloys. Whether you are cutting a fine 48 TPI thread on a small 1/4″ I.C. insert or a coarse 5mm pitch on a 5/8″ I.C., the same family of tools supports the job.
Specs at a Glance – The 60° Carbide Threading Insert Range
Here’s a quick look at the dimensional choices. All inserts fit standard external and right-hand/left-hand holders, so there’s no need for specialty tool blocks.
| Insert Size (I.C.) | Pitch Range (mm) | TPI Range | Right-Hand | Left-Hand | L (mm) |
|---|---|---|---|---|---|

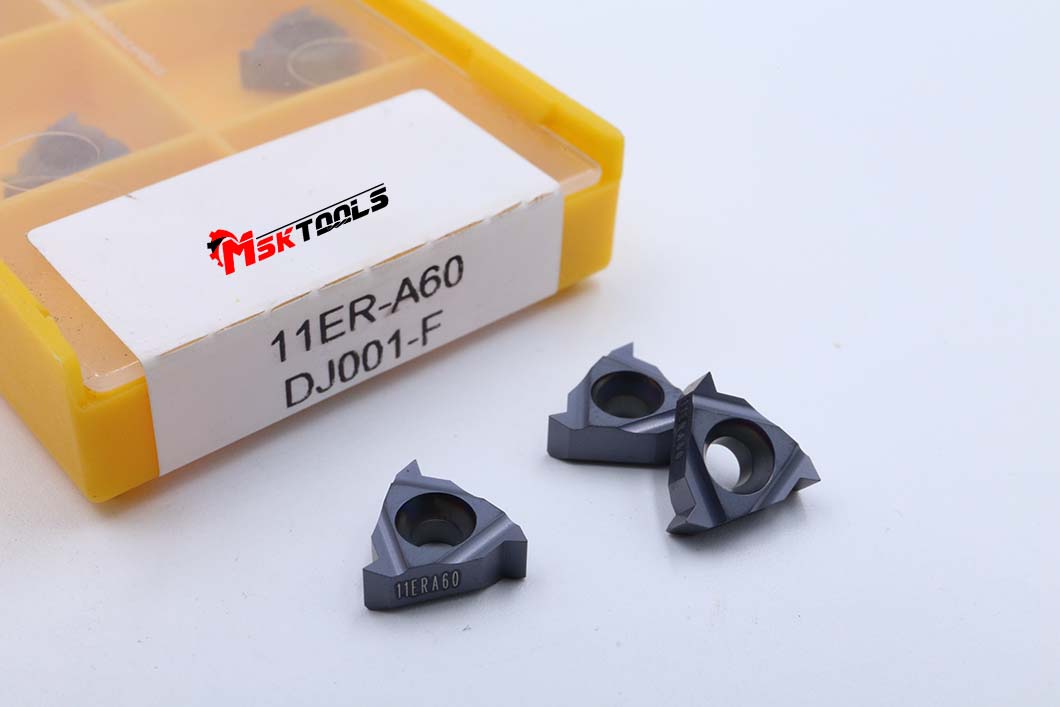

| 1/4″ | 0.5–1.5 | 48–16 | 11ERA60 | 11ELA60 | 11 |
| 3/8″ | 0.5–1.5 | 48–16 | 16ERA60 | 16ELA60 | 16 |
| 3/8″ | 1.75–3.0 | 14–8 | 16ERG60 | 16ELG60 | 16 |
| 3/8″ | 0.5–3.0 | 48–8 | 16ERAG60 | 16ELAG60 | 16 |
| 1/2″ | 3.5–5.0 | 7–5 | 22ERN60 | 22ELN60 | 22 |
| 5/8″ | 5.5–6.0 | 4.5–4 | 27ERQ60 | 27ELQ60 | 27 |
All inserts come in a 10‑piece pack. OEM marking and custom packaging are available on request.
The beauty of this lineup is flexibility. One 16ERAG60 insert handles a wide pitch envelope — from 48 down to 8 TPI — giving you enormous versatility on both turning centers and manual lathes when you need a fast changeover.
Why MSK Inserts Win on Stainless
1. Harder sub-micron carbide
Our carbide grade is formulated for high-temperature hardness. On stainless steel, where cutting edges can soften and crater, that’s a direct longevity boost. You get more parts per edge, which means fewer interruptions.
2. Clean thread profiles
Thanks to the precision ground 60° form, threads come out true to gauge right from the first pass. The insert’s partial profile allows it to produce the correct pitch with the required clearance, so you don’t have to fight taper or oversize threads on 316L fittings or shafts.
3. Less built-up edge
The top face geometry and smooth carbide surface discourage stainless steel from welding itself to the insert. Less built-up edge equals better surface finish and more predictable tool life — particularly on long runs.
4. Drop-in compatibility
The inserts fit standard ER/EL holders. If you already have external tool blocks for 11, 16, 22, or 27-size inserts, you’re ready to go. No special clamping, no new holder required.
Real-World Application: From Food-Grade Parts to Hydraulic Fittings
Customers use these turning inserts for stainless steel threading in a surprising variety of jobs:
Food processing equipment components where 304 threads must pass sanitary inspection.
Hydraulic union nuts and connectors made from 316 stainless.
Marine hardware that faces saltwater and needs crisp, burr-free threads.
Small-batch alloy steel and duplex stainless parts — the range handles some hardened steels and alloys too, making it a handy universal threading solution when your shop moves between materials.
Because the same insert can cut a 1.5 mm pitch shaft thread in the morning and a 2.0 mm bolt thread in the afternoon, setup time shrinks. Operators love that.
A Quick Word About Our Manufacturing
MSK (Tianjin) Cutting Technology has been around since 2015. We’re not a trading company slapping a logo on someone else’s product. We manufacture solid carbide cutting tools in our own facility, and we hold Rheinland ISO 9001 certification. The grinding and inspection equipment — SACCKE, ZOLLER, PALMARY — is the same level you’d see in top-tier European tool factories. What that means for you is insert-to-insert consistency that doesn’t drift. On stainless, where a tiny geometry error can smoke an insert in one pass, that consistency is non-negotiable.
We also know that cost control is part of the value equation. Buying direct from the factory means you get a high-performance turning insert for stainless steel at a price that makes sense for both job shops and production departments. And with OEM and custom labeling open, we plug easily into your own tool brand supply chain if needed.
FAQ
Q: Can these inserts handle hardened stainless steels like 17-4 PH?
A: Yes. While they are optimized for austenitic grades like 304 and 316, the carbide grade and edge prep allow them to work on precipitation-hardening and duplex stainless steels as well. For fully hardened steel above 45 HRC, we often recommend a specific edge treatment — contact us for a quick recommendation.
Q: Do I need to buy special holders?
A: No. These inserts fit standard 60° partial profile external threading holders. If your lathe uses common size designations (11, 16, 22, 27), you’re covered for both right-hand and left-hand operations.
Q: What’s the minimum order, and can you ship to my forwarder in China?
A: Standard pack is 10 inserts per box. We can ship directly to your freight forwarder anywhere in China, and we accept T/T payment. Large volume OEM orders are absolutely welcome.
Q: Why should I pick MSK over cheaper generic inserts?
A: Three words: quality, support, repeatability. You get tools produced on advanced grinding lines with full inspection data. We respond within 48 hours with pricing and technical answers, and you have a real engineering team behind the product. When you’re chasing a tight thread tolerance on stainless, that backup matters.
Ready to Upgrade Your Stainless Thread Turning?
If you’re tired of burning through inserts or spending extra time deburring threads on stainless parts, it’s worth putting a solid turning insert for stainless steel to the test. Our MSK threading inserts deliver the wear resistance, form accuracy, and chip control needed to push stainless jobs through faster and with fewer headaches. Whether you’re running a single-spindle lathe or a multitasking machine, a 10‑piece pack fits right into your tool management system.
Browse carbide cutting inserts, request samples, or ask for a quote—our team is ready to help you find the right insert size for your next stainless steel thread turning job.
