In the demanding world of CNC turning, the humble tool block is anything but simple. It's the critical link between your machine's turret and the cutting edge that shapes your parts. For workshops aiming to push the limits of speed, accuracy, and efficiency, the choice of CNC lathe tool blocks is a strategic decision that impacts everything from surface finish to the bottom line.
This guide explores why upgrading to high-performance tool blocks, particularly those engineered from QT500 cast iron, is one of the most effective ways to transform your CNC lathe operations.
Why CNC Lathe Tool Blocks Are the Unsung Heroes of Machining
Many shops focus on the machine tool and the cutting insert, overlooking the tool block that holds them together. This component must withstand immense cutting forces, dissipate heat, and maintain absolute geometric fidelity, often for millions of cycles. Standard tool blocks, typically made from basic steel or traditional gray iron, have inherent limitations:
Vibration and Chatter: They transmit harmonic resonance from the cutting process to the tool, degrading surface finish and accelerating insert wear.
Thermal Expansion: As temperatures rise during heavy cuts, standard materials expand, altering the tool's position and compromising dimensional accuracy.
Insufficient Rigidity: Under high loads, they can flex, leading to "push-off" that causes dimensional drift and inconsistent part quality.
These issues translate directly to higher scrap rates, shorter tool life, and slower cycle times—costly problems that erode profitability.
The Material Advantage: Why QT500 Cast Iron Sets a New Standard
The foundation of a superior Mazak Tool Holder is its material. Our advanced blocks are crafted from QT500 ductile cast iron, a material that redefines the performance envelope for tool holding. Unlike the flake graphite structure of conventional gray iron, QT500 features a unique nodular graphite microstructure within a robust ferritic-pearlitic matrix. This provides a combination of properties unmatched by typical steel alloys or cast irons:
1. Unrivaled Vibration Damping
The nodular graphite structure acts like millions of tiny shock absorbers, effectively converting vibrational energy into harmless heat. This superior damping capacity is critical for:
Eliminating chatter marks on critical surfaces.
Protecting the cutting edge from micro-chipping caused by harmonic resonance.
Enabling smoother, quieter machining, especially on slender or thin-walled parts.
2. Exceptional Rigidity and Tensile Strength
With a tensile strength of 500 MPa, QT500 provides the sheer stiffness needed for aggressive machining strategies. This rigidity:
Minimizes tool deflection under heavy loads, maintaining tight tolerances.
Allows for higher feed rates and deeper cuts without sacrificing accuracy.
Ensures that the clamping force on the insert remains consistent, preventing micro-movement.
3. Superior Thermal Stability
QT500 exhibits minimal thermal expansion compared to many steel alloys. This dimensional stability ensures that tool geometry remains consistent, even during prolonged, high-temperature operations, leading to more predictable and repeatable results.
Engineered to Slash Insert Wear and Lower Costs
Insert wear is often the largest single consumable cost in CNC turning. Our QT500 tool blocks are designed from the ground up to dramatically extend insert life, delivering a tangible return on investment. This is achieved through a combination of clever design and material science:
Optimized Clamping Geometry: The insert is cradled by precision-machined surfaces that ensure a perfectly secure and repeatable fit. This eliminates the destructive micro-movement that is the primary cause of edge wear.
Hardened and Coated Contact Zones: Critical surfaces that interface with the insert are treated with advanced anti-galling and abrasion-resistant coatings. This prevents material adhesion and reduces friction, a major contributor to heat and wear.
Effective Chip Flow Management: The block's design includes angled chip breaker channels and polished surfaces that efficiently guide chips away from the cutting zone. This prevents the damaging recutting of chips and protects the insert's cutting edge.
Independent Testing Confirms the Advantage: Workshops using these blocks have reported a 30-40% reduction in insert wear compared to standard tool holders. This translates to longer tool runs, reduced downtime for insert changes, and significantly lower consumable costs.
Optimized for Mazak and Beyond: Seamless Integration

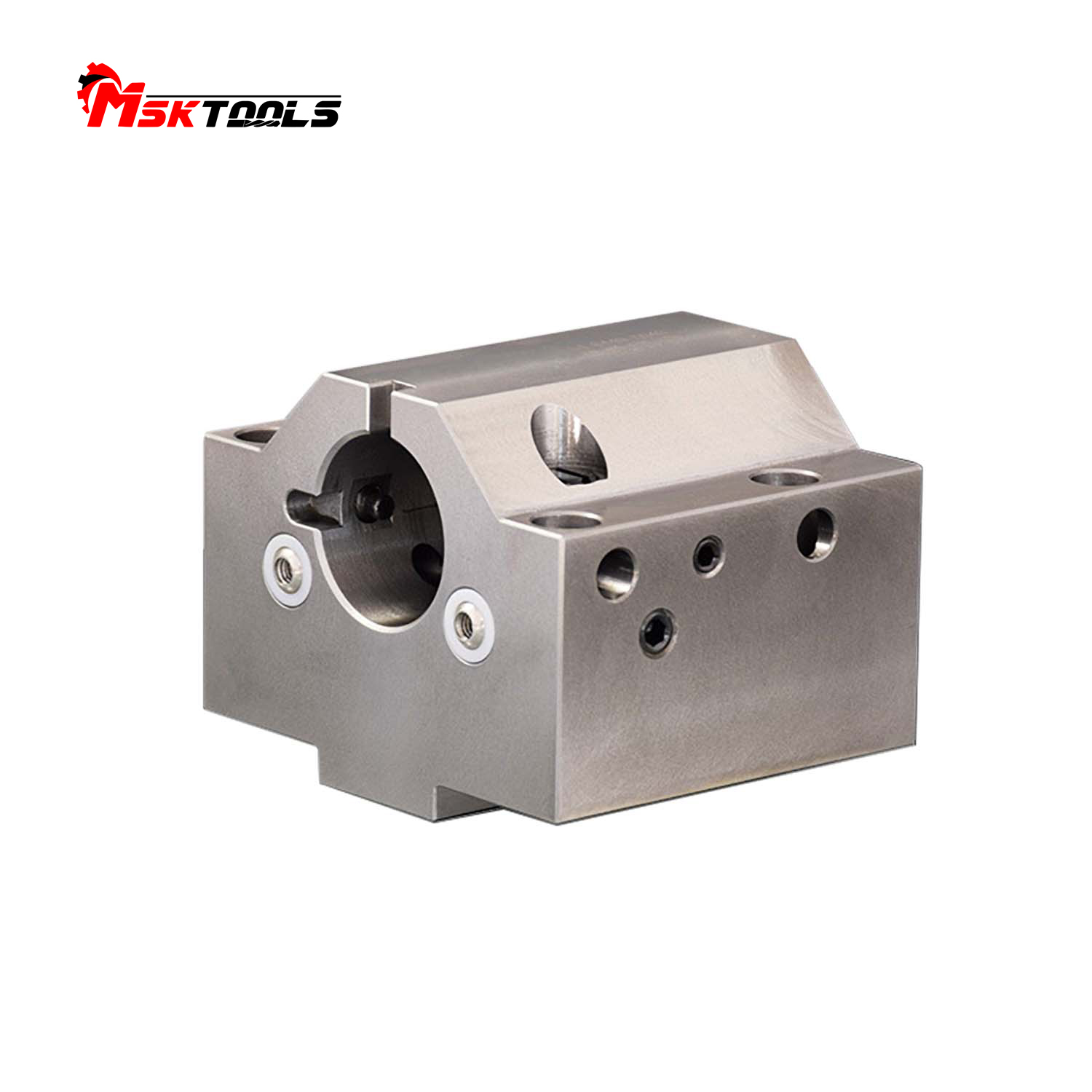

These tool blocks are specifically designed for seamless integration with Mazak CNC systems, renowned for their precision and advanced capabilities.
Plug-and-Play Precision with Mazak
Custom Alignment: Engineered mounting interfaces guarantee perfect turret alignment, eliminating the need for tedious setup adjustments and ensuring runout is minimal.
Integrated High-Pressure Coolant: Channels are precisely aligned to interface with Mazak's advanced coolant systems, delivering coolant exactly where it's needed for optimal chip evacuation and thermal management.
Quick-Change Ready: Fully compatible with Mazak quick-change systems, enabling rapid tool swaps for reduced downtime and increased machine utilization.
Universal Performance
While optimized for Mazak, the core performance benefits—rigidity, damping, and wear resistance—benefit any CNC lathe. This brand-agnostic quality makes them a versatile investment that can be used across your entire machine fleet.
Versatile Configurations for Every Application
Our range of CNC tool blocks is available in various configurations to suit a wide array of turning applications, all sharing the same core QT500 advantages:

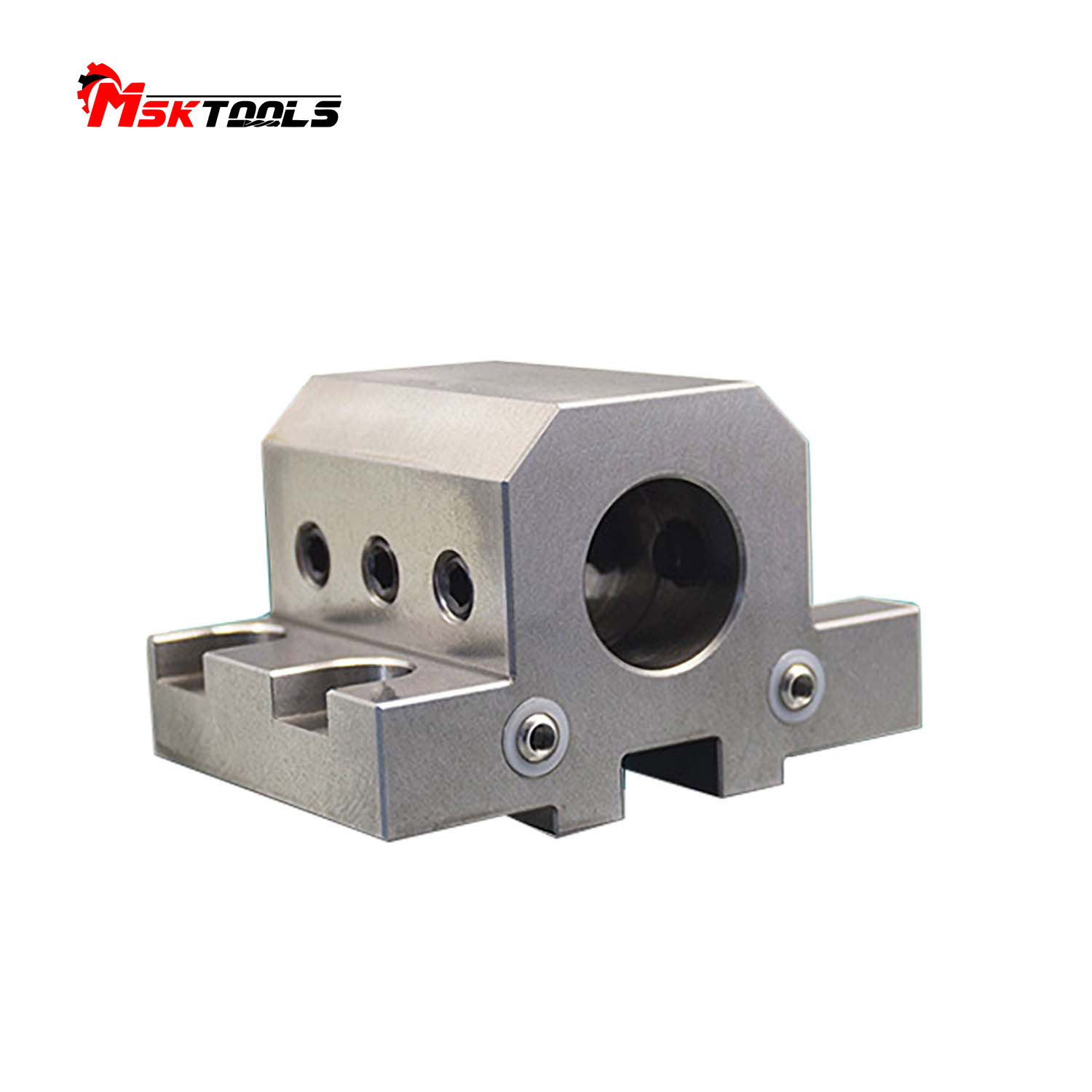

Standard CNC Tool Blocks: The workhorses for general turning, facing, threading, and boring operations.
Heavy-Duty Tool Post Blocks: Engineered with enhanced mass and rigidity for handling large-diameter workpieces, interrupted cuts, and tough materials like stainless steel and Inconel.
Multi-Tool Holder Blocks: Designed to accommodate multiple inserts, allowing for complex part geometries to be machined in a single setup, reducing cycle times and handling.
Real-World Performance That Speaks Volumes
The theoretical benefits are compelling, but the real proof is in the performance on the shop floor. A recent case study involved a leading aerospace manufacturer who upgraded their titanium machining line with our QT500 tool blocks. The results were transformative:
25% Faster Cycle Times: The unparalleled rigidity allowed for a significant increase in cutting parameters without compromising part integrity.
50% Fewer Insert Changes: The combination of material quality and optimized design dramatically extended tool life, slashing downtime and tooling costs.
Zero Unplanned Downtime: Over 1,200 hours of continuous operation, the tool blocks showed no signs of wear or degradation, ensuring uninterrupted production.
Conclusion: A Strategic Upgrade for the Modern Machine Shop
In an era where efficiency and precision are paramount, the decision to upgrade your CNC lathe tool blocks is a strategic move that delivers tangible results. By investing in QT500 cast iron blocks, you are not just buying a component; you are investing in:
Increased Productivity: Through higher cutting speeds and reduced downtime.
Lower Operating Costs: Through extended insert life and reduced scrap.
Superior Part Quality: Through enhanced rigidity and vibration control.
Peace of Mind: Through durable, reliable performance that you can count on.
For workshops ready to eliminate the hidden bottlenecks in their CNC turning operations, moving to high-performance tool blocks is the first step toward a more profitable and competitive future.
