New spiral reamer series boosts productivity, precision, and tool life in demanding materials
Designed to address the growing need for high-quality hole finishing in hardened steels, superalloys, and composites, the new Spiral Flute Reamer series is engineered to deliver exceptional surface finish, tight dimensional accuracy, and significantly extended tool life compared to traditional straight-flute or HSS reamers.
Machining professionals often face challenges with chip evacuation, taper, and poor bore quality when reaming difficult materials. MSK’s newly developed carbide spiral reamer directly solves these issues by integrating an optimized helix angle that actively directs chips out of the cut, preventing jamming and reducing the risk of scoring the workpiece. This design is particularly effective for blind holes, interrupted cuts, and deep-hole reaming operations in automotive, aerospace, and mold-making applications.
Advanced Material and Design for Uncompromised Performance

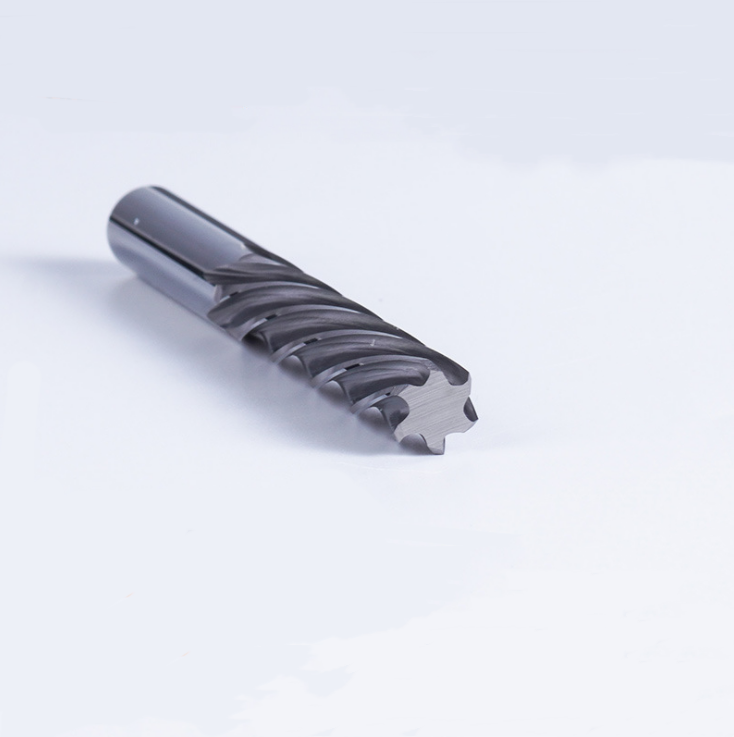

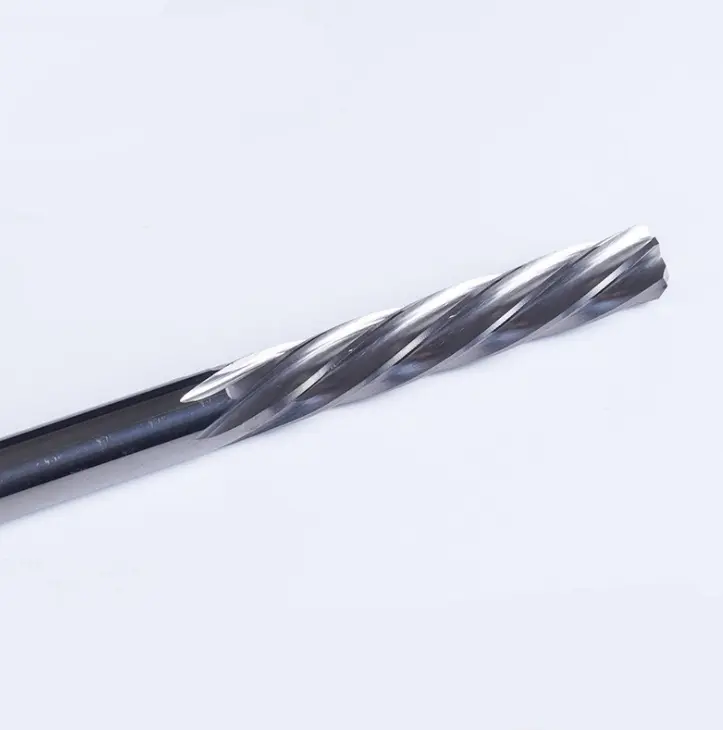

The new Spiral Flute Reamer range is manufactured from premium micro-grain carbide, providing superior hardness and heat resistance. Key performance features include:
- Helical flute geometry that ensures smooth cutting action, lower cutting forces, and excellent chip removal.
- Tight tolerance control – standard reamers achieve H7 hole tolerance, with optional H6 available upon request.
- AlTiN + TiSiN multi-layer coating (standard) to reduce friction, increase wear resistance, and allow high-speed dry or MQL machining.
- Diameter range: 3 mm to 20 mm in 0.01 mm increments, with custom sizes and special tapers available.
- Right-hand cut, right-hand spiral for general-purpose CNC and manual machines.
Independent tests at MSK’s R&D center showed that the carbide spiral reamer series improves tool life by up to 35% and reduces surface roughness (Ra) to below 0.2 µm when reaming 4140 steel at 45 HRC. The spiral design also eliminates burr formation at hole exits, a common problem with straight-flute reamers.
Broad Application Coverage
“Demand for carbide spiral reamers is surging because manufacturers need a single tool that can provide both precision and reliability in hard materials,” said a senior product manager at MSK CNC Tools. “Our new reamers are already being used for cylinder head alignment bores, hydraulic valve bodies, turbine disk holes, and precision mold guides. Users report a 25% reduction in cycle time thanks to faster feed rates made possible by the flute design.”
The reamers are suitable for stainless steel (304/316), Inconel 718, titanium Ti-6Al-4V, hardened tool steels (up to 62 HRC), and grey cast iron. For high-volume automotive lines, MSK offers custom step reamers and coolant-through versions upon request.
Factory-Direct Supply Chain Advantages
As a true manufacturer and not just a distributor, MSK CNC Tools provides significant supply chain benefits:
- Stock readiness – over 10,000 standard pieces in stock for immediate shipment.
- Quick custom manufacturing – 5-7 days for non-standard diameters or special helix angles.
- Competitive pricing – direct factory pricing eliminates middleman costs, saving customers 20-30% compared to European or US brands.
Visit the Official Product Page
For complete technical data, and a quick quote request, visit the official Carbide Spiral Flute Reamers product page:
https://www.mskcnctools.com/carbide-spiral-flute-reamers-product/
About MSK CNC Tools
MSK CNC Tools is a specialized manufacturer of solid carbide end mills, drills, reamers, and custom micro tools. With over 12 years of export experience, the company supplies precision cutting tools to more than 40 countries. MSK combines advanced grinding technology, in-house coating services, and rigorous quality control to deliver reliable performance at affordable prices.
Media Contact:
Sales & Technical Support
MSK CNC Tools
Email: molly@mskcnctools.com
Web: www.mskcnctools.com
Post time: May-09-2026
