In the world of subtractive manufacturing, the bridge between a raw billet and a finished component is often an overlooked hero: the workholding vise. For machinists and shop owners, the battle isn't just against the material; it's against vibration, deflection, and the cumulative errors of repeated setups. The Heart-Seeking Vise is engineered to be the definitive solution to these challenges. This isn't just a clamp; it's a statement of precision and a commitment to efficiency.
What Exactly is a "Heart-Seeking" Vise?
The term "heart-seeking" transcends a catchy name. It directly alludes to the vise's core function: to precisely locate the center of the workpiece every single time. Unlike traditional vises that rely on an operator's feel or manual adjustment, a self-centring vise like this model uses a synchronized, dual-jaw mechanism. When you tighten the vise, both jaws move toward the center at an equal rate. This ensures that the centerline of your part is consistently aligned with the spindle's axis of rotation.
This is a game-changer for several reasons:
Predictable Toolpaths: You can program your CAM software with confidence, knowing the part's origin won't wander.
Elimination of "Soft Jaws" for Centering: For many jobs, the need to machine custom soft jaws just to locate a part is eliminated, saving setup time and material.
Ideal for Round and Irregular Stock: While exceptional for square blocks, the self-centering action truly shines when gripping cylindrical or oddly shaped castings, providing a stable, balanced grip.
Technical Design and Construction: Where Rigidity Meets Precision

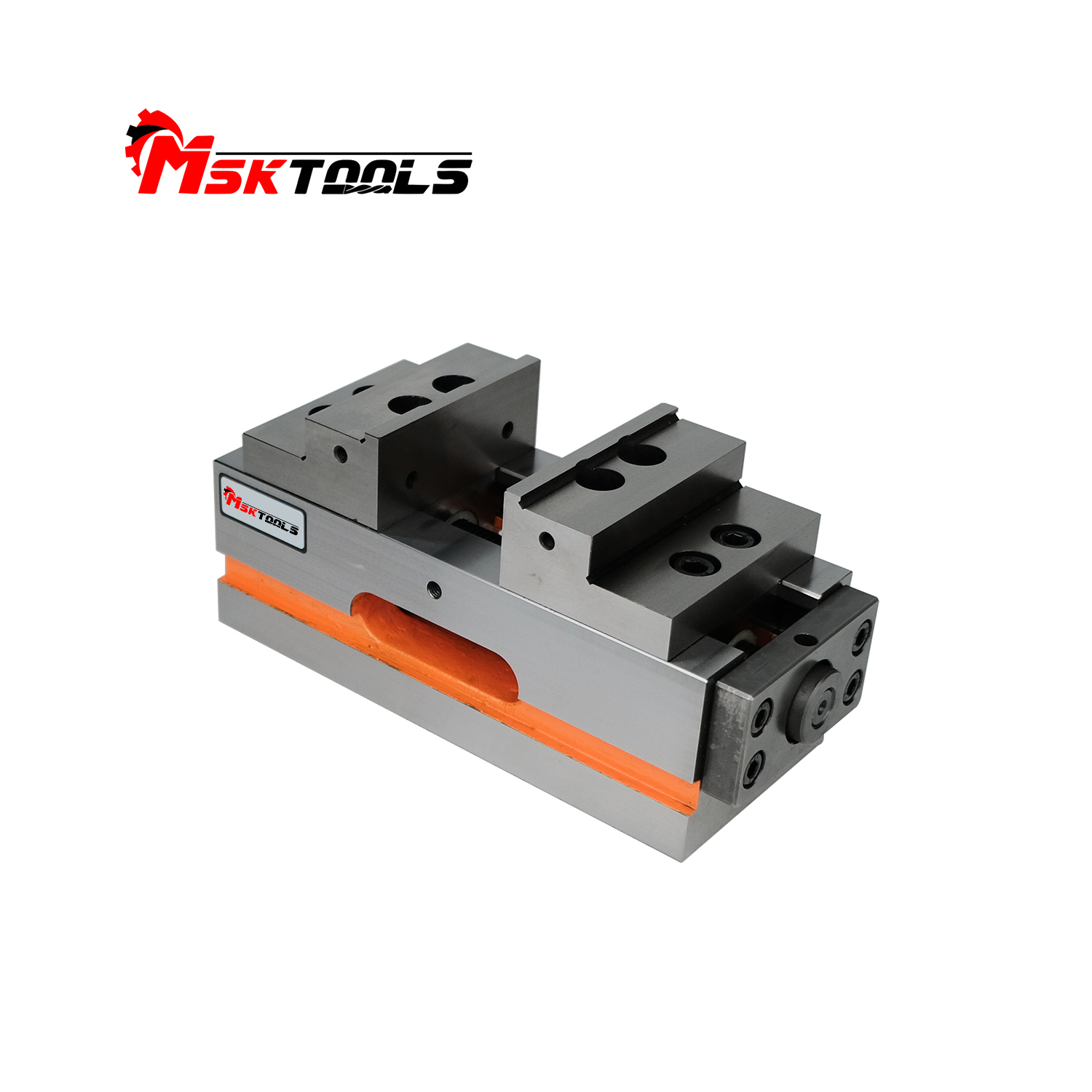

The performance of any high-end vise hinges on its metallurgy and mechanical design. The MSK CNC Self Centring Vise, as detailed on the product page, is built from the ground up for the demanding environment of a CNC machine. Its features reflect a deep understanding of the forces at play during high-speed machining.
1. Material and Hardness
The Self Centring Vise body is constructed from high-quality ductile iron, a material chosen for its exceptional vibration-damping properties. This is critical. A material that absorbs harmonic vibrations prevents "chatter" – a common enemy of surface finish and tool life. The key guide surfaces are induction-hardened and precision-ground, ensuring a Rockwell hardness that resists wear and maintains accuracy over millions of cycles.
2. The Heart of the System: The Cam-Lock Mechanism
The "heart" of this vise lies in its advanced cam-actuated clamping system. This design differs from standard screw-based vises. When you actuate the handle, a precisely machined cam engages with the moving jaws. This provides immense mechanical advantage, translating a moderate input torque into a clamping force exceeding 40 kN (kilonewtons) . This tremendous force, coupled with the rigid body, creates a closed-loop system that virtually eliminates jaw lift and work piece pull-up.
3. Sealed for the Real World
CNC machining is a messy business. Coolant, metal chips, and abrasive dust are ever-present. The Heart-Seeking Vise features a fully sealed design. All critical internal components, including the cam mechanism and the central screw, are shielded from contaminants. This not only extends the service life of the vise but ensures that its renowned repeatability remains consistent day after day, shift after shift.
On-Machine Performance: The Numbers that Matter
For a shop foreman or a quality engineer, marketing jargon holds little weight. Only empirical data does. The Heart-Seeking Vise is specified to deliver a clamping repeatability of 0.01mm (0.0004") . This is not a theoretical maximum; it is a guaranteed standard.
This level of precision delivers tangible results:
Reduced Scrap Rates: When the first part off the machine is correct, you save material and machine time.
Unattended Machining Confidence: You can run lights-out operations with the peace of mind that the workholding will not lose its grip or shift its position.
Improved Tool Life: By providing a stable, rigid platform, the vise minimizes lateral tool pressure, reducing tool deflection and uneven wear. Your end mills and inserts will last longer.
Built to Last: Maintenance and Durability
We understand that shop-floor equipment faces harsh conditions—coolants, chips, and heavy impacts. Our hydraulic vises feature sealed hydraulic systems to prevent coolant ingress and internal contamination. The wear plates are replaceable, ensuring that the vise maintains its original accuracy for years, offering a lifecycle cost far lower than cheaper, non-serviceable alternatives.
A Quick Reference Guide
To help you quickly assess the capabilities, here is a summary of the key performance metrics for the Heart-Seeking Vise.
| Specification | Detail |
|---|---|
| Jaw Width | Standard 150mm / 6 Inch |
| Clamping Force | 40 kN (Adjustable via torque wrench) |
| Repeatability | ≤ 0.01mm |
| Main Material | High-Grade Ductile Iron |
| Key Feature | Fully Sealed, Anti-Contamination Design |
Applications Across Industries
The versatility of a self-centring vise makes it a staple across various manufacturing sectors.
Aerospace: Machining complex, high-value components from aluminum and titanium alloys requires absolute workholding security. The vibration-damping properties are crucial for achieving the required surface integrity on thin-walled structures.
Automotive: From prototype to production, the automotive industry relies on the rapid setup and precision of these vises for machining engine blocks, cylinder heads, and suspension components.
Medical Technology: For surgical instruments and implantable devices made from stainless steel and cobalt-chrome, the repeatability and cleanliness of the workholding process are non-negotiable.
General Die & Mold: The ability to machine hardened steels with precision is a testament to the rigidity of the workholding system. The heart-seeking action ensures that electrode and cavity machining is accurate to the micron.
Why Choose This Vise Over a Standard Vise?
The true value of a precision tool becomes apparent not in its retail price, but in its cost-per-part over its lifetime. While a standard manual vise may have a lower upfront cost, it incurs hidden expenses:
Time: Each setup requires skilled time to indicate the part in.
Inconsistency: Operator fatigue or error leads to varying results.
Maintenance: Standard vises wear out, requiring replacement or costly rebuilds.
Conclusion: The "Heart" of Your CNC Cell
The Heart-Seeking Vise represents the pinnacle of workholding engineering. It is designed for the machinist who refuses to compromise on quality, the programmer who demands predictability, and the business owner who understands that efficiency is the key to profitability. It is more than a tool; it is the dependable heart of a high-performance manufacturing operation.
If you are ready to transform your machining process and experience the benefits of world-class precision and rigidity, explore the full specifications of the Heart-Seeking Vise today.
View Product Details & Specifications → High Power Hydraulic Vise
