Revolutionize Thin-Wall Machining: The Ultimate Guide to Tungsten Carbide Flow Drill Bits

For manufacturers and workshops, threading thin-walled materials like tubes and sheet metal has always been a significant challenge. Traditional methods often lead to stripped threads, weak joints, or the need for bulky, expensive weld nuts. However, a transformative technology is changing the game: the thermal friction drill bit.

This guide explores the world of carbide flow drill bits, detailing their function, benefits, and why they are the superior choice for creating high-strength threads in light-gauge materials. We’ll also highlight why the premium tungsten carbide flow drill bit from MSK CNC Tools is the ideal investment for your workshop.

What is a Thermal Friction Drill Bit?

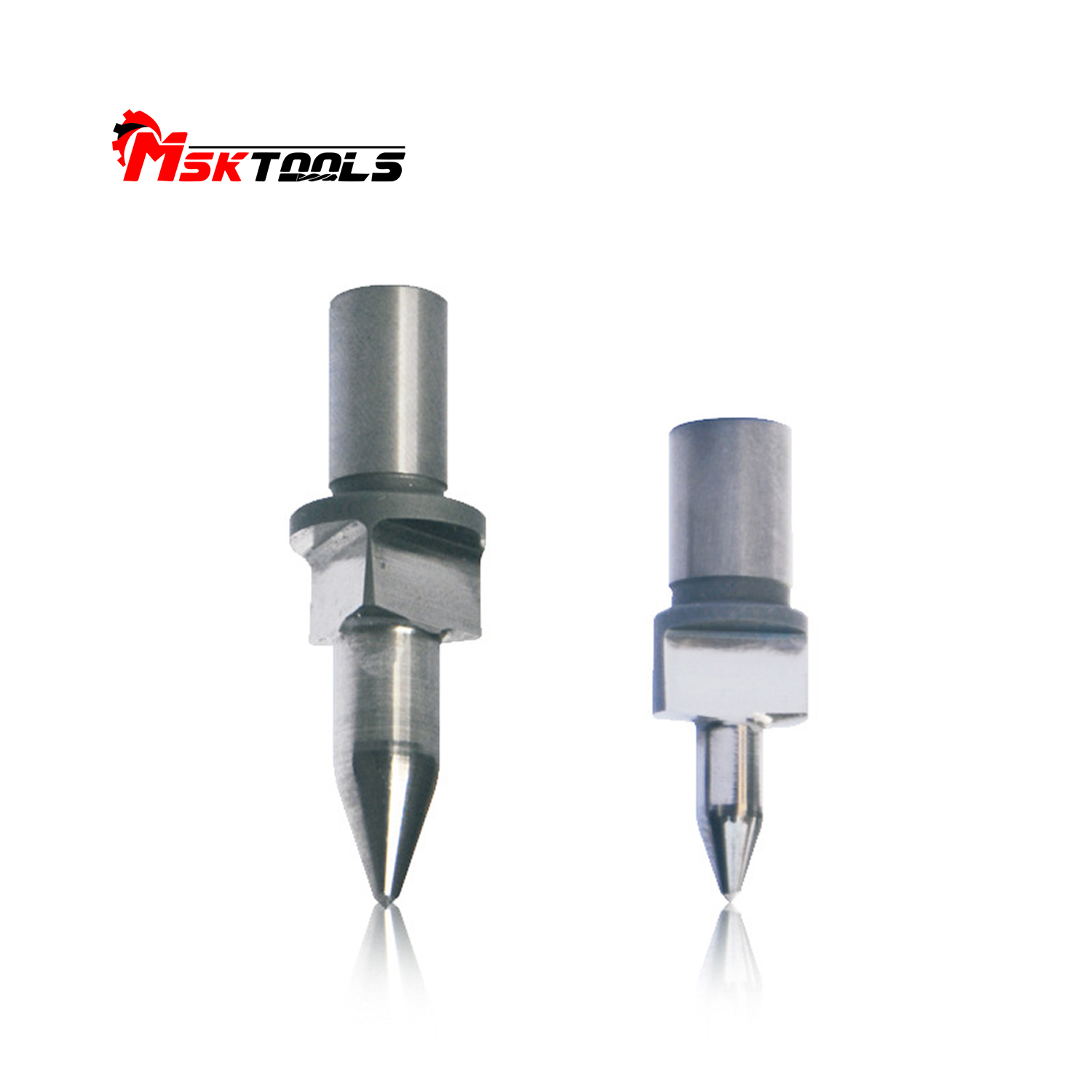

A thermal friction drill bit, also known as a flow drill or friction drilling tool, operates on a simple yet brilliant principle. Unlike traditional drilling that removes material, this process uses friction and pressure to mold it.

When the flowdrill is spun at high speed against a metal workpiece, the intense friction generates temperatures exceeding 600°C (1112°F). This heat rapidly softens the metal, allowing the specially designed tip of the carbide flow drill bit to penetrate and displace the material. This forms a bushing (or collar) that is approximately three times the original thickness of the material. This bushing provides a significantly longer engagement surface for threads, resulting in joints with superior tensile and torque strength.

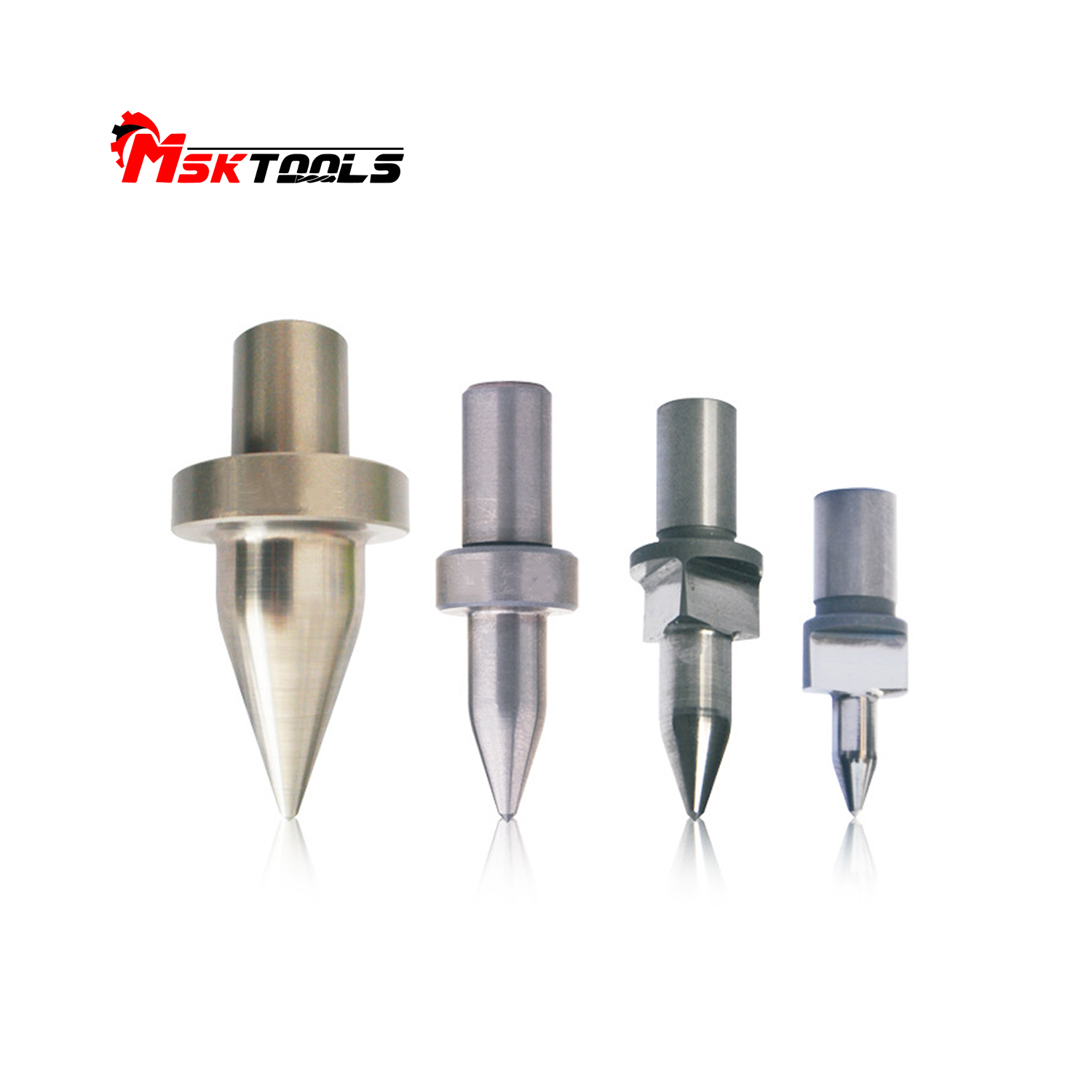

Types of Flow Drills: Flat vs. Round

When selecting a thermal friction drill bit set, you’ll typically encounter two main profiles, both of which are available in our range:

Flat/Round Type Flow Drill Bit: This is the standard and most versatile option. It features a conical tip with a flat, blunt end. It’s ideal for general-purpose use on a wide variety of materials and is excellent for creating the initial bushing before tapping.

Pointed/Round Type Flow Drill Bit: This variant has a more pronounced point, which is beneficial for specific applications where a pilot hole is not preferred. It works exceptionally well on thinner materials to reduce the initial axial force required.

Key Features & Benefits of the MSK Tungsten Carbide Flow Drill Bit

Our tungsten carbide flow drill bit is engineered for performance and longevity. Here’s what makes it the best choice for professionals:

1. Unrivaled Material and Durability

Manufactured from high-grade carbide tungsten, these bits are extremely wear-resistant and can withstand the immense heat and friction generated during the process. This material choice ensures a longer tool life compared to HSS alternatives, especially when working with harder materials.

2. Versatility Across Metals

The M3 to M12 sizes in our collection are suitable for processing various metals with a wall thickness of 0.8-4mm and a diameter of 1.8-32mm. You can effectively use them on:

Iron, Mild Steel, and Stainless Steel
Titanium and Aluminum
Copper and Brass (with Zn content <40%)
Aluminum Alloys (with Si content <0.5%)

3. The "One-Step" Process for Stronger Threads

The process is often a two-step operation:

Friction Drilling: The flow drill creates the bushing.
Tapping: An extrusion tap forms the final thread without cutting, ensuring the metal’s grain structure remains intact. This results in a thread that is up to 2000% stronger than one tapped into a standard hole in thin material.

Essential Usage Tips for Optimal Performance

To get the most out of your thermal friction drill bit set, proper technique is crucial. Here are some professional tips:

Use Hot-Melt Paste: Applying a specialized paste on the tool every 2-5 holes (or every hole for stainless steel) significantly extends tool life. The paste acts as a lubricant and anti-weld compound, reducing friction and preventing material build-up on the cutter body.

Consider Pre-Drill Holes: For thin-walled workpieces (less than 1.5mm), pre-drilling a small starting hole is recommended. This reduces axial force and prevents bending or deformation.

Equipment Choice: Ensure your drilling machine or machining center has the appropriate speed and power for the material thickness. The correct flowdrill m6 or flowdrill m8 size will depend on your specific application.

Maintenance: After extended use, the tool surface may accumulate debris. You can restore its performance by clamping it in a lathe or milling machine and polishing it with an abrasive paste.

Why Choose MSK CNC Tools?

MSK (Tianjin) International Trading Co., Ltd. has been a trusted name since 2015, specializing in high-quality CNC tooling. Every tungsten carbide flow drill bit is backed by our commitment to quality and precision, serving industries worldwide.

Are you ready to eliminate weak threads and speed up your production? Our comprehensive thermal friction drill bit set offers a complete solution for your workshop.
