Taiwanese diamond wheel, 5‑micron accuracy, and a 9‑kg lightweight design make bit resharpening faster and more accessible for small workshops and field technicians.

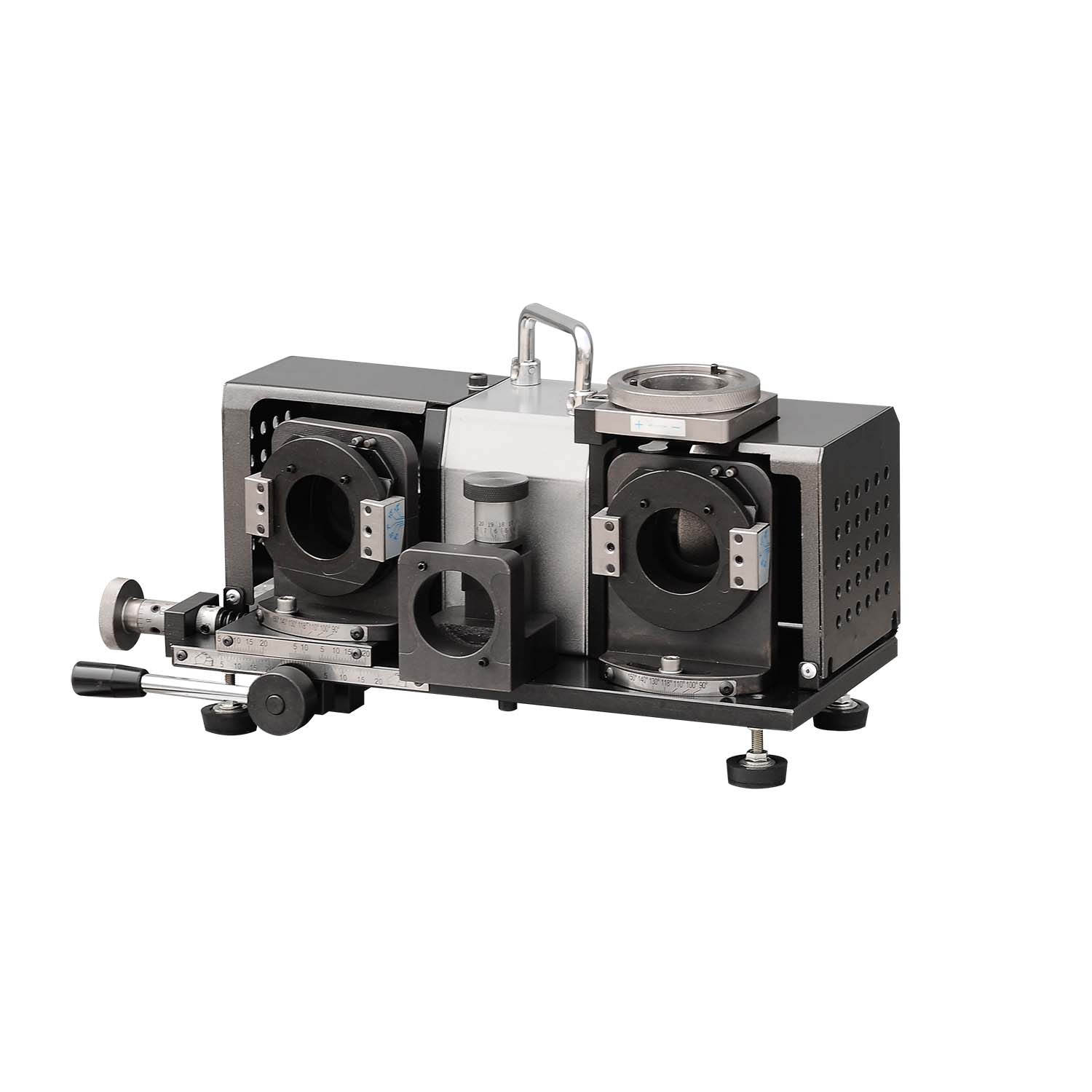

The Z13 drill bit sharpening machine is designed for professionals who need to quickly and reliably grind high-speed steel (HSS) and carbide drill bits with diameters from φ3 to φ13 mm. Weighing only 9 kg and with a volume of only 0.02 cubic meters, this device can be easily placed on any workbench or conveniently carried to the work site.
Precision That Matches Factory Standards
Unlike consumer‑grade sharpeners, the Z13 achieves 5‑micron grinding precision using a Taiwan‑made diamond grinding wheel. The wheel remains sharp for over 3,000 cycles, allowing users to recoup the machine’s cost in as little as half a month of regular use. The point angle is adjustable from 90° to 140°, covering most drilling applications from soft metals to hardened steel.
Restores More Than Just the Tip
The machine sharpens not only the point angle but also the front cutting edge (positive rake angle) and the chip flute (relief angle). A standout feature is the freely adjustable center chisel edge, which enables the Z13 to replace a separate center drill – improving centering accuracy and chip evacuation during drilling.
Built for Real‑World Efficiency
Powered by a 120W all‑copper motor running at 4400 RPM, the Z13 completes a typical sharpening cycle in 10 seconds. This speed makes it practical for on‑the‑spot resharpening in tool rental shops, maintenance depots, and manufacturing lines.
The housing uses EU EPD‑certified powder coating for durability against oil and scratches, meeting high export standards.
Precision That Matches Factory Standards
Unlike consumer‑grade sharpeners, the Z13 achieves 5‑micron grinding precision using a Taiwan‑made diamond grinding wheel. The wheel remains sharp for over 3,000 cycles, allowing users to recoup the machine’s cost in as little as half a month of regular use. The point angle is adjustable from 90° to 140°, covering most drilling applications from soft metals to hardened steel.
Restores More Than Just the Tip
The machine sharpens not only the point angle but also the front cutting edge (positive rake angle) and the chip flute (relief angle). A standout feature is the freely adjustable center chisel edge, which enables the Z13 to replace a separate center drill – improving centering accuracy and chip evacuation during drilling.
Built for Real‑World Efficiency
Powered by a 120W all‑copper motor running at 4400 RPM, the Z13 completes a typical sharpening cycle in 10 seconds. This speed makes it practical for on‑the‑spot resharpening in tool rental shops, maintenance depots, and manufacturing lines.
The housing uses EU EPD‑certified powder coating for durability against oil and scratches, meeting high export standards.
Technical Snapshot
| Feature | Specification |
|---|---|
| Model | Z13 |
| Grinding range | φ3 – φ13 mm (φ14 max) |
| Point angle | 90° – 140° |
| Motor | 120W, 4400 RPM |
| Power supply | AC 220V ±10% (110V optional) |
| Dimensions | 36×21×19 cm |
| Weight | 9 kg |
| Grinding wheel | Taiwanese diamond, ≤5µm precision |
Availability
The Z13 is available now for global shipping. OEM options (custom color, logo, manual, 110V version) are offered for bulk orders.
For more information, visit Drill Bit Re-Sharpener or contact molly@mskcnctools.com.
