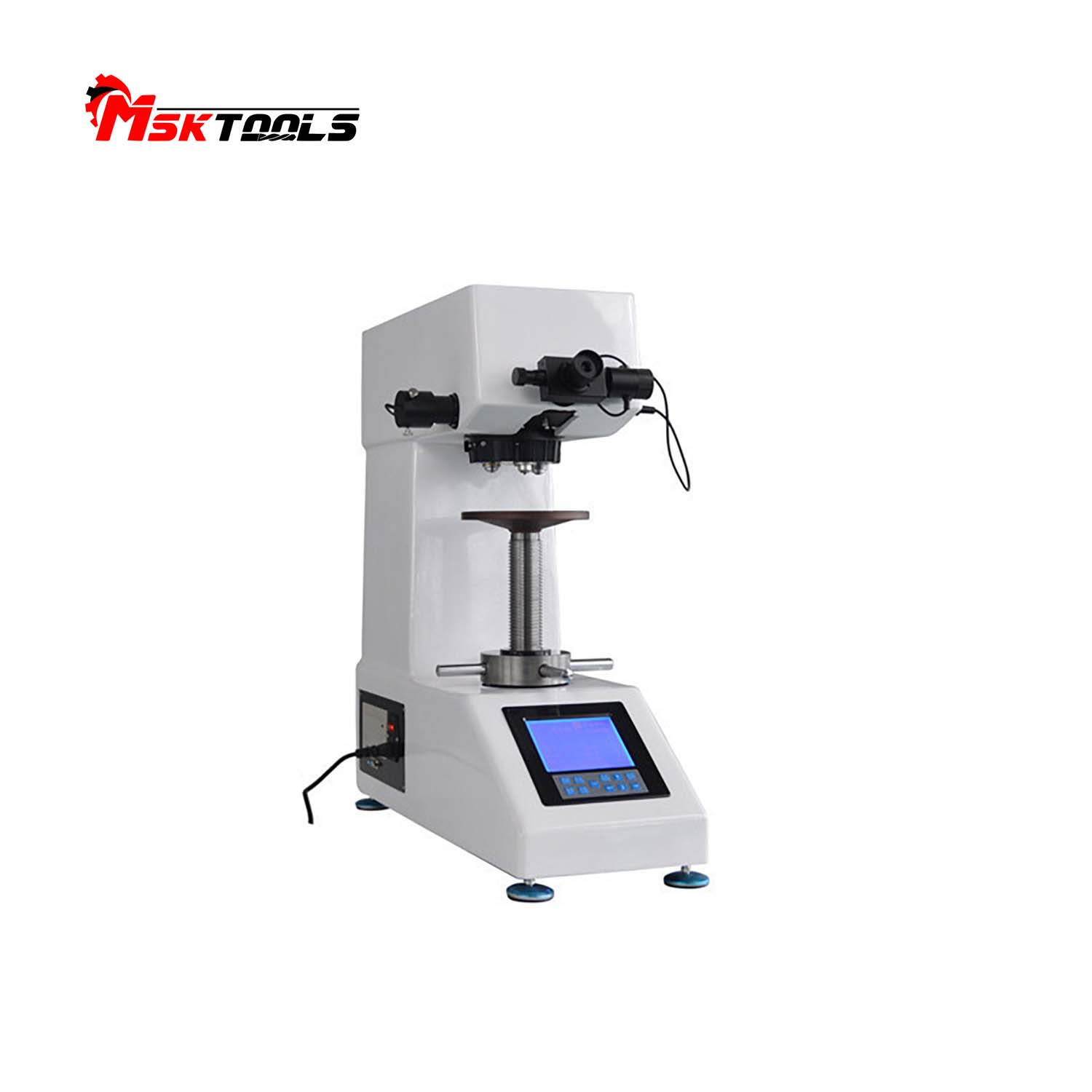

Designed for both laboratory and industrial environments, the new Digital Vickers Hardness Tester brings together high accuracy, user‑friendly operation, and optional automation to meet the evolving demands of quality control and material analysis.
Precision Across a Wide Test Force Range
The new tester offers test forces from 0.3Kgf up to 50Kgf, with multiple models available (HVS‑5BD, 10BD, 30BD, 50BD) to cover a broad spectrum of materials – from thin films and coatings to hardened steel and ceramics. The minimum measuring unit reaches 0.125μm, and total magnification of up to 200× ensures accurate indentation measurement.
Touch Screen & Automatic Turret for Efficient Workflow
Unlike conventional units, this Vickers hardness tester integrates a large touch display that simplifies operation, data entry, and result visualisation. The automatic turret allows seamless switching between the Vickers indenter and objective lenses, significantly reducing manual handling and improving testing speed. Meanwhile, a manual input option gives users full control when measuring indentation diagonals – ideal for custom or non‑standard samples.
Versatile Scale Conversion & Standard Features
The instrument supports conversion to Rockwell, Superficial Rockwell, and Brinell hardness scales. Standard functions include automatic loading, holding, and unloading, plus a mini printer for on‑the‑spot data output. Maximum specimen height is 175mm, accommodating a wide range of part sizes.
Optional Software & HD Camera for Automated Analysis
For users seeking even higher efficiency, an optional multifunction hardness measurement software package is available, together with a Sony 850‑line CCD or a 3MP industrial camera. The system enables automatic indentation reading, hardening curve plotting, image and data storage, as well as statistical process control. This turns the tester into a comprehensive image‑analysis workstation suitable for advanced R&D and production line quality assurance.
Applications
The new Digital Vickers Hardness Tester is ideal for:
- Metals, alloys, and heat‑treated layers
- Thin films, coatings, and surface treatments
- Precision small parts and electronics components
- Ceramics, glass, and hard plastics
- Metallographic analysis and laboratory teaching
Availability
The product is available for global shipping. Customised options (e.g., higher test forces, additional accessories) are available upon request.
For more information, please visit https://www.mskcnctools.com/ or contact molly@mskcnctools.com.
About the Company
MSK CNC TOOLS is a specialist in hardness testing equipment, dedicated to providing reliable, precise, and cost‑effective solutions for material testing laboratories and industrial facilities worldwide.
