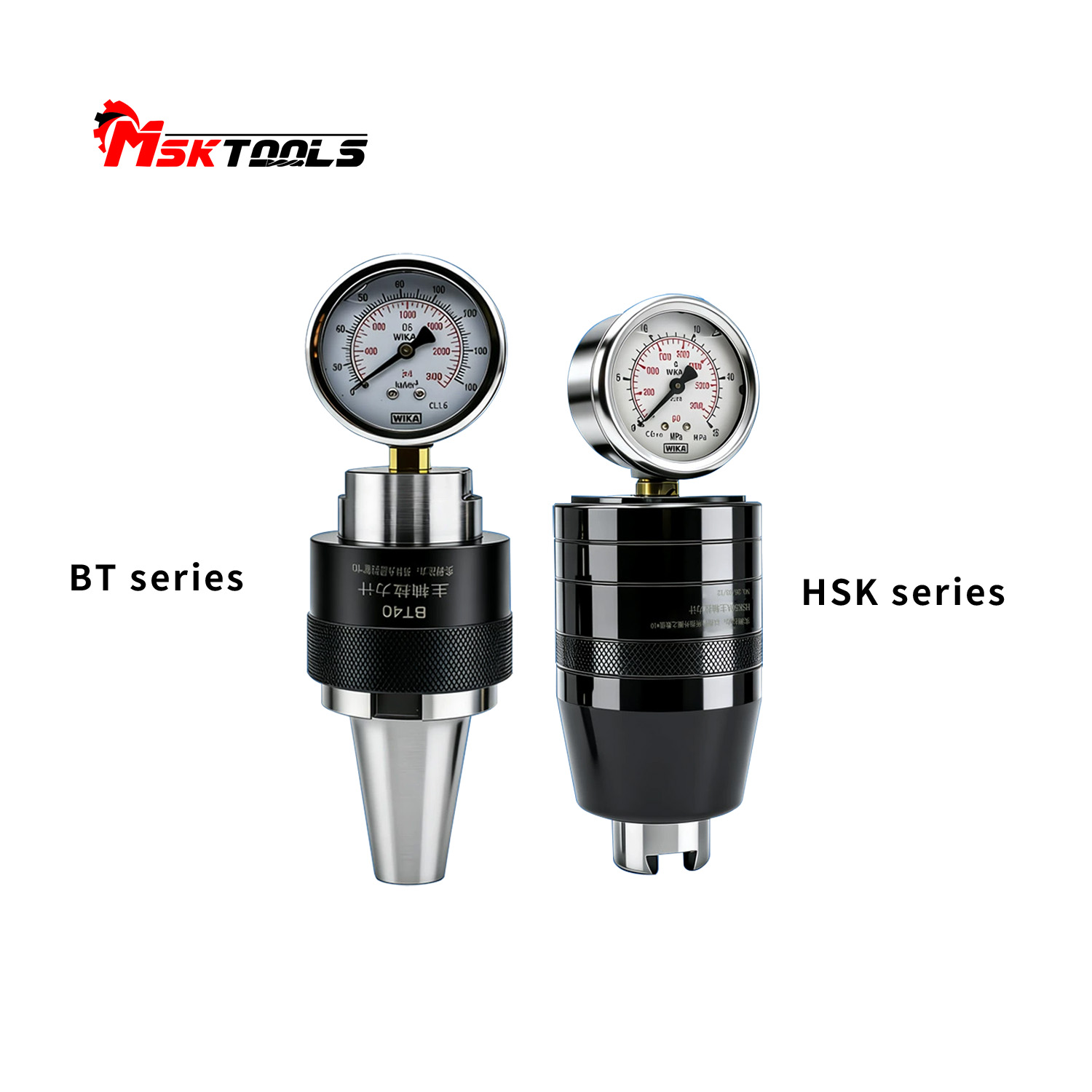

For CNC machining operations, the clamping force of the spindle drawbar is a critical yet often overlooked parameter. Insufficient clamping force can lead to catastrophic tool pull-out, scrapped workpieces, and premature spindle failure. To help workshops proactively manage this risk, MSK (Tianjin) Cutting Technology Co., Ltd. has introduced its latest generation of CNC Spindle Drawbar Force Gauges – robust, precision instruments designed for fast and reliable measurement across a broad spectrum of tool interfaces, including BT30, BT40, BT50, and HSK32 through HSK100.
Why Regular Drawbar Force Testing Matters
Over time, the drawbar clamping force naturally degrades due to mechanical wear, contamination, or hydraulic pressure loss. Routine testing with a dedicated tension meter empowers maintenance teams and quality control departments to:
Eliminate tool pull-out risks – Ensure cutting tools remain securely gripped during heavy cuts.
Maintain tight tolerances – Consistent clamping force is foundational to surface finish and dimensional accuracy.
Extend spindle lifespan – Early detection of force degradation prevents damage to costly spindle components.
Reduce material waste – By removing a variable source of process variation, shops significantly lower scrap rates.
Built for the Shop Floor: Precision, Durability, and Easy Maintenance
The MSK gauge distinguishes itself through several engineering innovations that address real-world workshop challenges:
Exceptional Accuracy and Longevity – The body is machined from 20CrMnTi alloy steel, quenched and hardened for outstanding impact and corrosion resistance. It delivers repeatable measurement accuracy of Grade 0.003–0.005, ensuring trustworthy readings even in harsh environments.
Simple, Instant Readout – A German-made WIKA oil pressure gauge provides clear analog readings. Converting to actual force is straightforward: gauge value (kg/cm²) × 10 = actual drawbar pull force (kg). For example, 25 kg/cm² equals 250 kg of clamping force.
Field‑Restorable Preload – Unlike disposable testers, this gauge allows in‑house preload restoration. Technicians can simply add R68 hydraulic oil and adjust the indicator rod – no special tools or factory service required, saving both time and maintenance costs.
Universal Compatibility – One gauge body accommodates a wide range of interchangeable adapters, covering BT, HSK, SK, CAT, ISO, and BBT tapers from size 20 to 100. This makes it an economical choice for multi‑brand machine shops.
“We designed this gauge to be a long‑term partner for maintenance professionals,” said a spokesperson for MSK. “Its rugged construction, combined with the unique ability to restore preload on‑site, delivers reliability and cost‑effectiveness that our customers appreciate.”
About MSK
Established in 2015, MSK is an ISO 9001‑certified manufacturer specializing in high‑performance carbide cutting tools and precision measurement equipment. The company operates advanced German SACCKE five‑axis grinding centers and ZOLLER six‑axis inspection systems, ensuring superior quality.
For detailed specifications, OEM/custom branding inquiries, or to place an order, please visit the product pages or contact the sales team directly.
CNC Spindle Drawbar Force Gauge / BT Spindle Clamping Force Analyzer
