High Precision CNC Tool Pre-adjustment Instrument TP-300HB for BT/SK/HSK Holders
Fixed spindle
Simple, low-priced
300HB-40 Stroke: D:300/L:60~300 Resolution: 0.005
300HB-50 Stroke: D:300/L:60~300 Resolution:0.005
No rapid displacement
Standard Equipment
| Type | Test bar | Percentage | Hex wrench | Dust cover | Machine weight | Machine dimensions (mm) |
| TP-300HB | 1pc(D40,L200) | 2pcs | 1 set | 1pc | 68kg | L:600
W:165(+200) H:690 |
Specifications
| Type | Travel | Resolution | Image magnification |
| KJ-340 | X: -20~130 mm
Y: 60~400 mm X: -20~230 mm, optional Y: 60~600 mm, optional |
0.001 mm | 50X |
Standard AccessoriesScreen
Color CCD
Cross Mark Generator
Standard Rod
Spindle #40 or #50
Surface LED
Backlight LED
Optional Accessories
Sleeves (ISO#40/#30, HSK-63/40)
Pneumatic Locking Knife

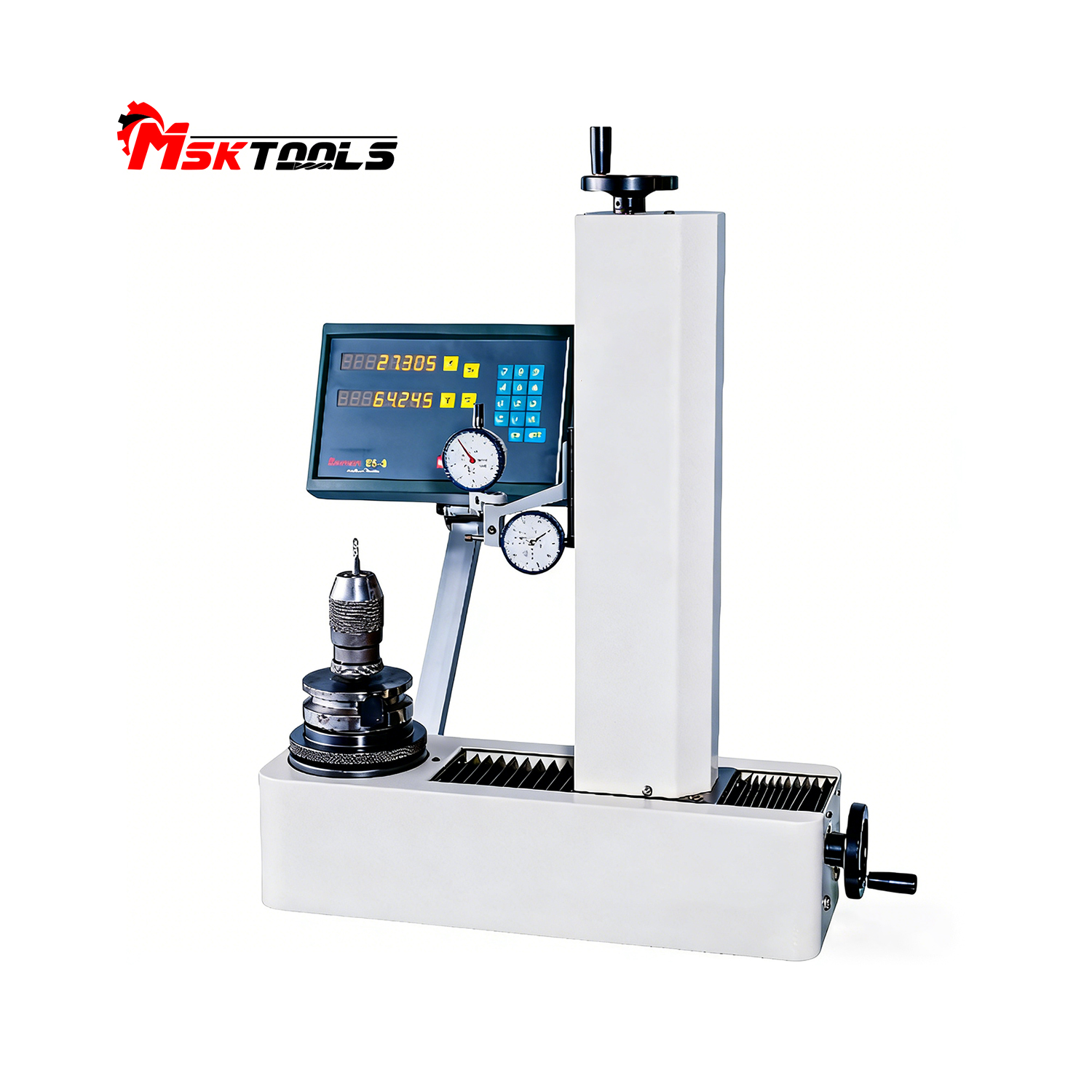

The TP-300HB Tool Pre-adjustment Instrument is a professional-grade contact rotary presetter designed to streamline your CNC machining operations. By enabling fast and precise measurement of cutting tools outside the machine, it significantly reduces downtime and enhances productivity.
Why Choose TP-300HB?
Exceptional Precision: Achieve repeatability of ±0.002mm, ensuring consistent tool offsets and superior machining quality.
Wide Compatibility: Works seamlessly with standard tool holders, making it versatile for various machining centers.

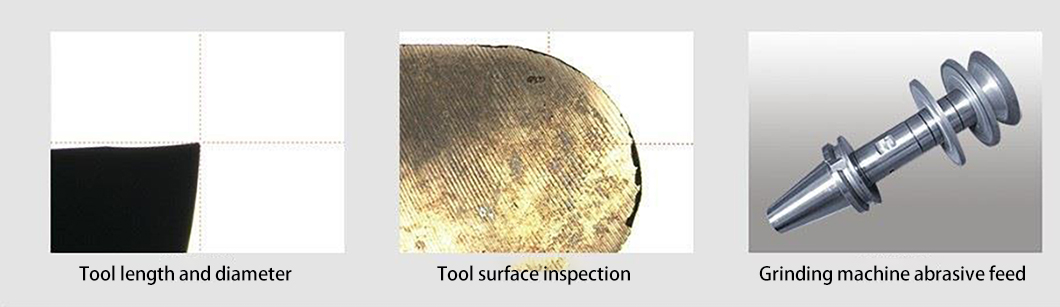

Comprehensive Measurement: The rotating spindle allows full inspection of tool length, diameter, and runout in a single setup.
User-Friendly Interface: Digital display with intuitive controls minimizes operator learning curve and speeds up workflow.
Built to Last: Robust cast iron construction and precision linear guides guarantee long-term stability and reliability.
Applications:
Ideal for tool rooms, mold making, aerospace, automotive, and general precision engineering. Perfect for pre-setting milling cutters, drills, taps, and reamers.
Contact us for a quote or more information on how the TP-300HB can improve your machining accuracy and efficiency.
