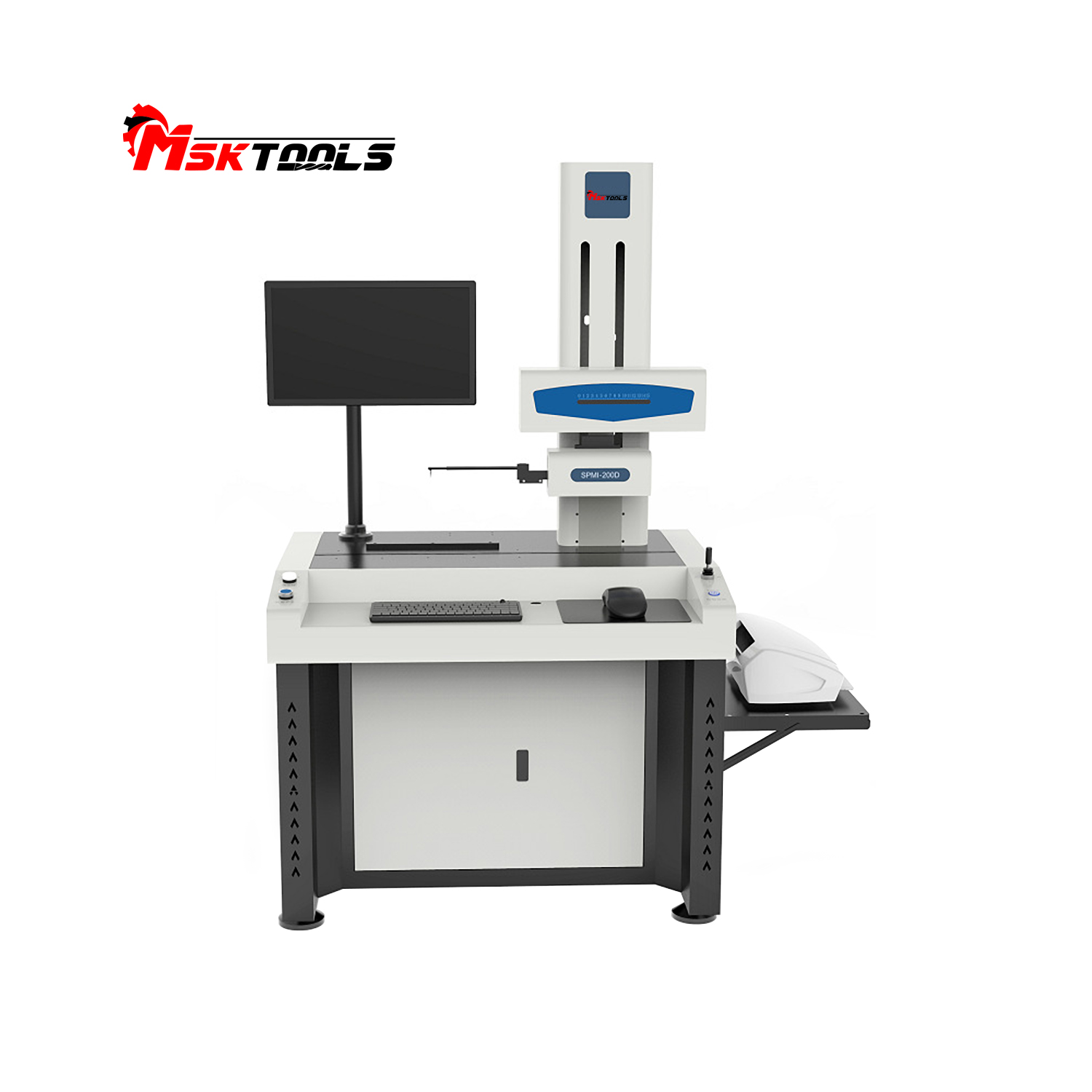

Surface Roughness Tester & Profilometer | High Precision Surface Finish & Roundness Measuring Instrument
Ordering Instructions
Due to the special nature of the product, the price shown on the page is a deposit price, not the actual price. Please contact customer service for a quote.
Orders placed directly without prior contact cannot be shipped! Thank you for your cooperation! For more product information, please contact customer service to receive product brochures.
Product Advantages
Stable performance, fast transmission, automatic calibration, accurate measurement, rapid response, real-time monitoring.
Technical Specifications:
Contour Measurement Functions:
Dimensions: Includes horizontal distance, vertical distance, linear distance, radius, and diameter.
Angles: Includes horizontal angle, vertical angle, and included angle.
Positional Tolerances: Includes parallelism and perpendicularity.
Form Tolerances: Includes straightness, convexity, and arc profile tolerances.
Auxiliary Generation: Includes auxiliary points, auxiliary lines, and auxiliary circles.
Cryptogram analysis: Ra, Rammax, Ramin, Rasd, Rp, Rpmax, Rpmin, Rpsd, Rv, Rvmax, Rvmin, Rvsd, Rz, Rzmax, Rzmin, Rzsd, R3z, Rc, Rcmax, Rcmin, Rcsd, Rt, Rq, Rqmax, Rqmin, Rdsd, Rsk, Rskmax, Rsmin, Rsksd, Rku, Rkumax 、Rkumin、Rkusd、Rsm、Rsmmax、Rsmmin、Rsmsd、Rs、R△a、R△amax、R△amin、R△asd、R△q、R△qmax、R△qmin、 R△qsd、Rk、Rpk、Rvk、Mr1、Mr2、Rλa、Rλamax、Rλamin 、Rλasd、Rλq、Rλqmax、Rλqmin、Rλqsd、Rδc、Rpc、Rmr
Waviness analysis:Wa、Wamax、Wamin、Wasd、Wsa、Wca、Wa08、Wc、Wcmax、Wcmin、Wcsd、Wt、Wz、Wzmax、Wzmin、Wzsd、Wp、Wpmax、Wpmin、Wpsd、Wv、Wvmax、Wvmin、Wcsd、Wq、Wqmax、Wqmin、Wqsd、Wsm、Wsmmax、Wsmmin、Wsmsd、Wsk、Wskmax、Wskmin、Wsksd、Wku、Wkumax、Wkumin、Wkusd、W△q、W△qmax、W△qmin、W△qsd、Wδc、Wmr
Original contour analysis:Pa、Pt、Pp、Pc、Pv、Pz、Pq、Psm、Psk、Pku、RzJ、Rpq、Rvq、Rmq、Pmr、P△q、Avh、Hmax、Hmin、Area、Pδc、Tilta
Equipment parameters:
| Measurement range | X-direction driver | 130mm | |
| Z1 | Profile measurement range | 40mm | |
| Z1 | Roughness measurement range | ±1500μm | |
| Z1 | Resolution 0.02 micrometers | ||
| Z-axis height (column) | 550mm | ||
| Minimum detectable inner hole | 10mm | ||
| Contour technical parameters | Linearity | ±（0.7+|0.12H|）μm | |
| Circularity | ±（1.2+R/12）μm | ||
| Angle | ±1′ | ||
| Straightness | 0.5μm/100mm | ||
| Roughness technical parameters | Linearity accuracy | ≤±5% | |
| Residual noise | ≤0.005μm | ||
| Repeatability stability | Trial value 3% | ||
| Cutoff wavelength | 0.025, 0.08, 0.25, 0.8, 2.5, 8mm | ||
| Evaluation length | λcX1, 2, 3, 4, 5 | ||
| Sensor | Type | USA | |
| Resolution | 0.02μm | ||
| Origin | USA | ||
| Angle of ascent | 77 degrees ascent, 88 degrees descent | ||
