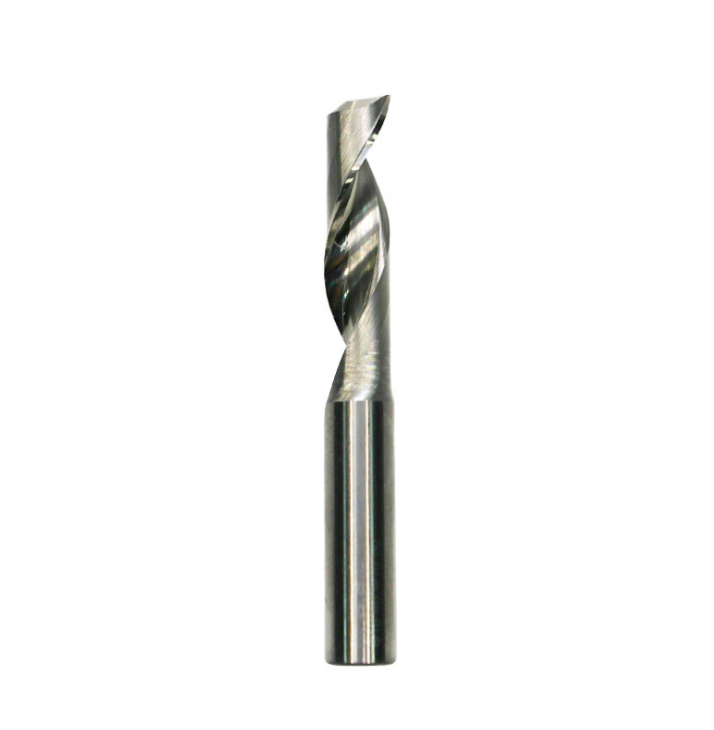

Single-edge flute end mill for aluminum

The single-edge cutters are particularly suitable for aluminum milling, but they also give excellent results on soft chip plastics and resins, especially if used at high rotation and feed rates.


Product Detail

Product Tags

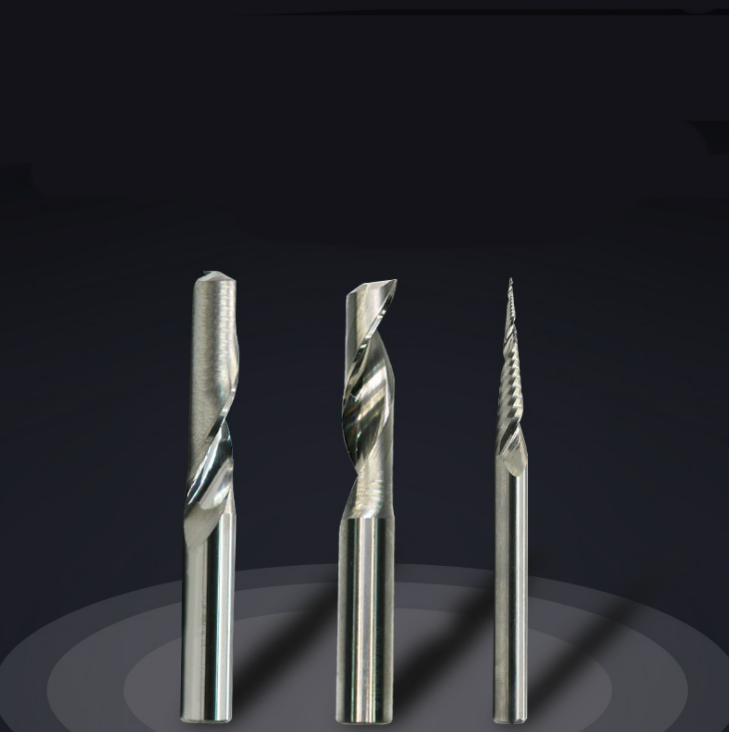

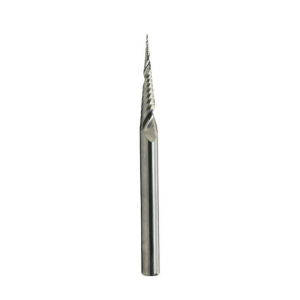

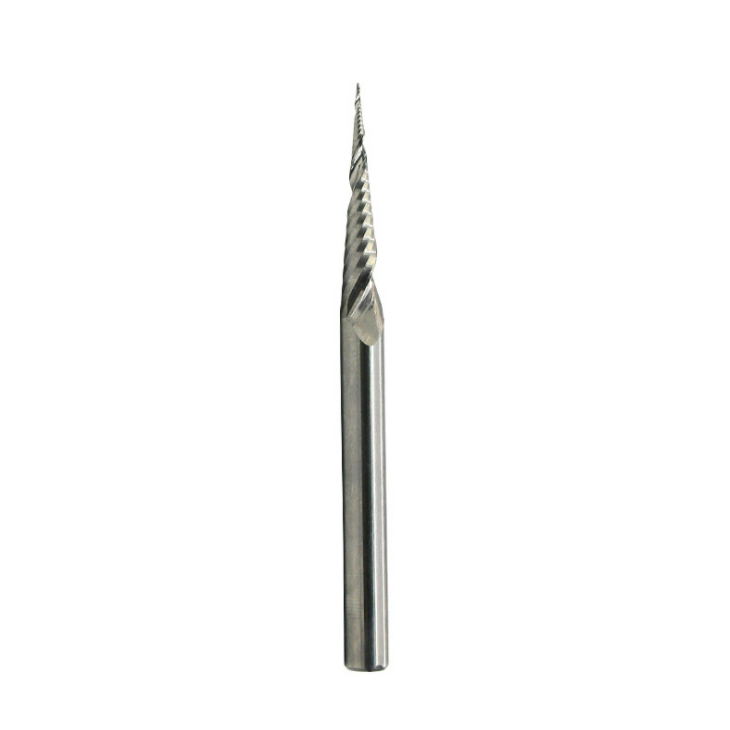

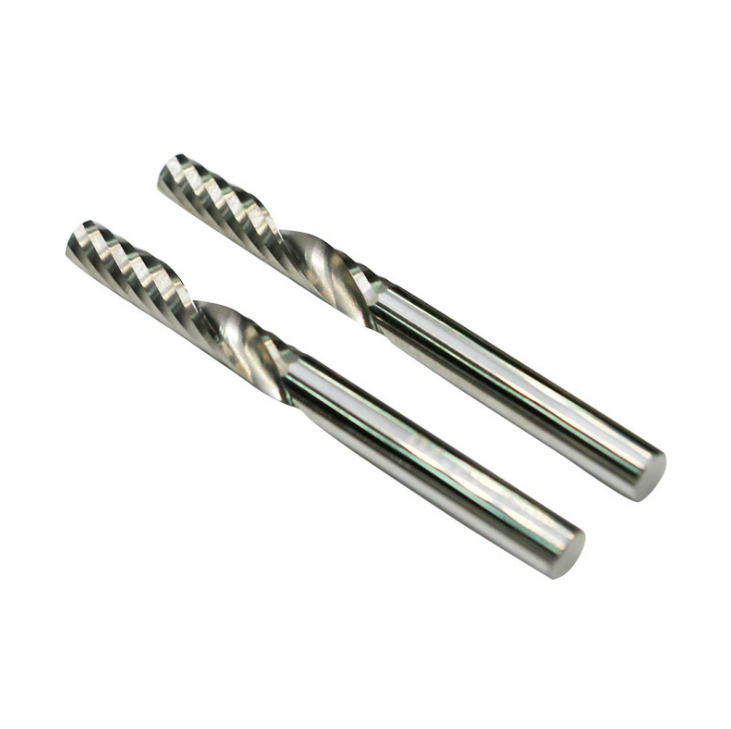

Single-edge milling tools (5)

Single-edge milling tools (4)

Single-edge milling tools (3)

Brand MSK
Material Aluminum, aluminum alloy
Type End Mill
Flute Diameter  D(mm) 1-8
Shank Diameterd(mm) 3.175-8
Flute Length (ℓ)(mm) 3-32
Certification ISO9001
Applicable machine tool Engraving machine, engraving machine, CNC machine tool

Advantage:

1.Easily Discharge Waste
2.Not Stick to Cutter
3.Low Noise
4.High Finish

Feature:

1.Super Sharp Flute Edge
Completely new flute edge design, perfectly improved cutter performance.
2.Super Smooth Chip Evacuation
Redesigned large chip flutes while ensuring that the cutter is strong. The chip removal performance is greatly improved to prevent chip sticking.
3.High Precision Spiral
We tested out perfect spiral precision solution based on previous spiral, more smoothly on cutting and outfeeding.

Operation Manual

In order to avoid the cutter from twisting due to excessive pressure,all cutting bits aredesigned to rotate clockwise.
When all the cutters are finished,they have passed the balance test to ensure thatthere is no doubt about runaway. In order to again ensure that the tools are free fromswing and runout during use,please pay attention to selecting machinery and equip-ment and excellent jackets.
The jacket must be of appropriate size. If the jacket is found to be rusty or worn,thejacket will not be able to clamp the cutter properly and correctly. Please replace thejacket with standard specifications immediately to avoid the cutter from rotating athigh speed handle vibration,flying off or breaking the knife.
The installation of the cutter shank should be in accordance with EU regulations,and the clamping depth of the cutter shank must be more than 3 times the diameter of the shank to maintain the proper pressure bearing range of the shank.
Cutter with larger outer diameters should be set according to the following tachometer,and slowly advance to maintain a uniform advance speed. Do not stop the advance during the cutting process. When the cutter is blunt, please replace it with a new one.Do not continue to use it to avoid tool breakage and work-related accidents.Choose the corresponding cutter for different materials. When operating and processing,please wear safety glasses and push the handle safely. When using desktop ma-chines and equipment,you also need to use anti-rebound devices to avoid accidents caused by rebounding of work objects during high-speed cutting.

Shank Diameter(mm) Flute Diameter(mm) Flute Length(mm) Total Length(mm)
3.175 1 3 38.5
3.175 2 4 38.5
3.175 2 6 38.5
3.175 3.175 6 38.5
3.175 3.175 8 38.5
4 4 12 45
5 5 15 50
5 5 17 50
6 6 12 50
6 6 15 50
6 6 17 50
8 8 22 60
8 8 25 60
8 8 32 75

Use

cxuytiu
Aviation Manufacturing

nbviytuiMachine Production

jhfkjkfCar manufacturer

bvcityui
Mold making

cvuityo
Electrical Manufacturing

gfdsLathe processing
