Portable Laser Interferometer for Machine Tool Calibration & Large Size Measurement

Portable laser interferometer for CNC machine calibration, alignment, and large size measurement. High accuracy, on-site portability. Get quote now.

Brand: MSK

Model: WR50

Maximum Speed: 10rpm

Send email to us

Product Detail

Product Tags

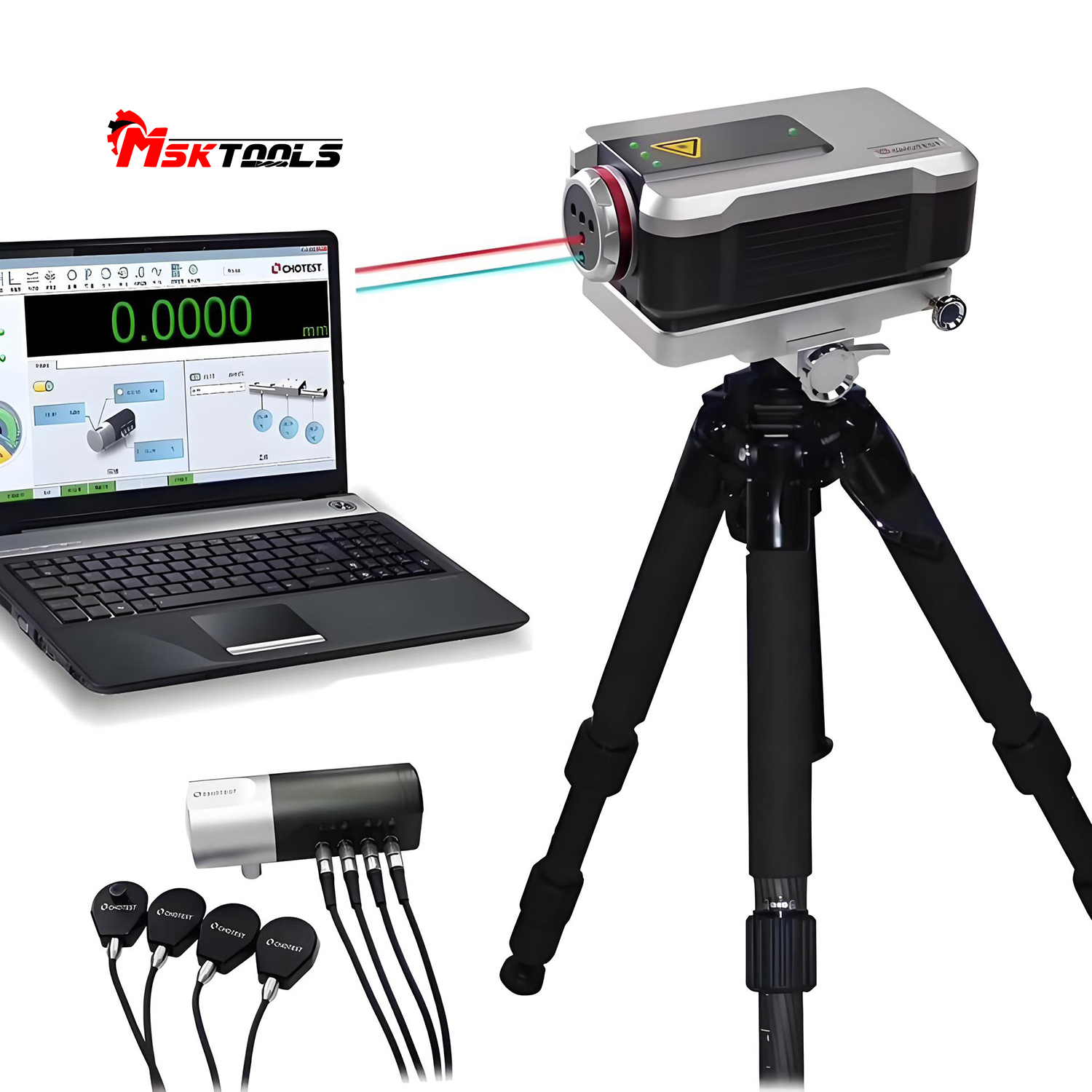

What is a Portable Laser Interferometer?

A portable laser interferometer is a high-precision optical measurement instrument based on the Michelson interferometer principle. Using a frequency-stabilized He-Ne laser source, it delivers exceptional intensity, directionality, spatial coherence, narrow bandwidth, and high monochromaticity. This makes it an ideal solution for large size measurement, CNC machine calibration, and on-site metrology.

Key Applications of Laser Interferometer

Our portable laser interferometer is widely used for:

Linear position & velocity measurement – Achieve sub-micron accuracy over long distances.

Angle, flatness & straightness evaluation – Essential for machine tool geometry checks.

Parallelism & perpendicularity measurement – Critical for assembly and alignment tasks.

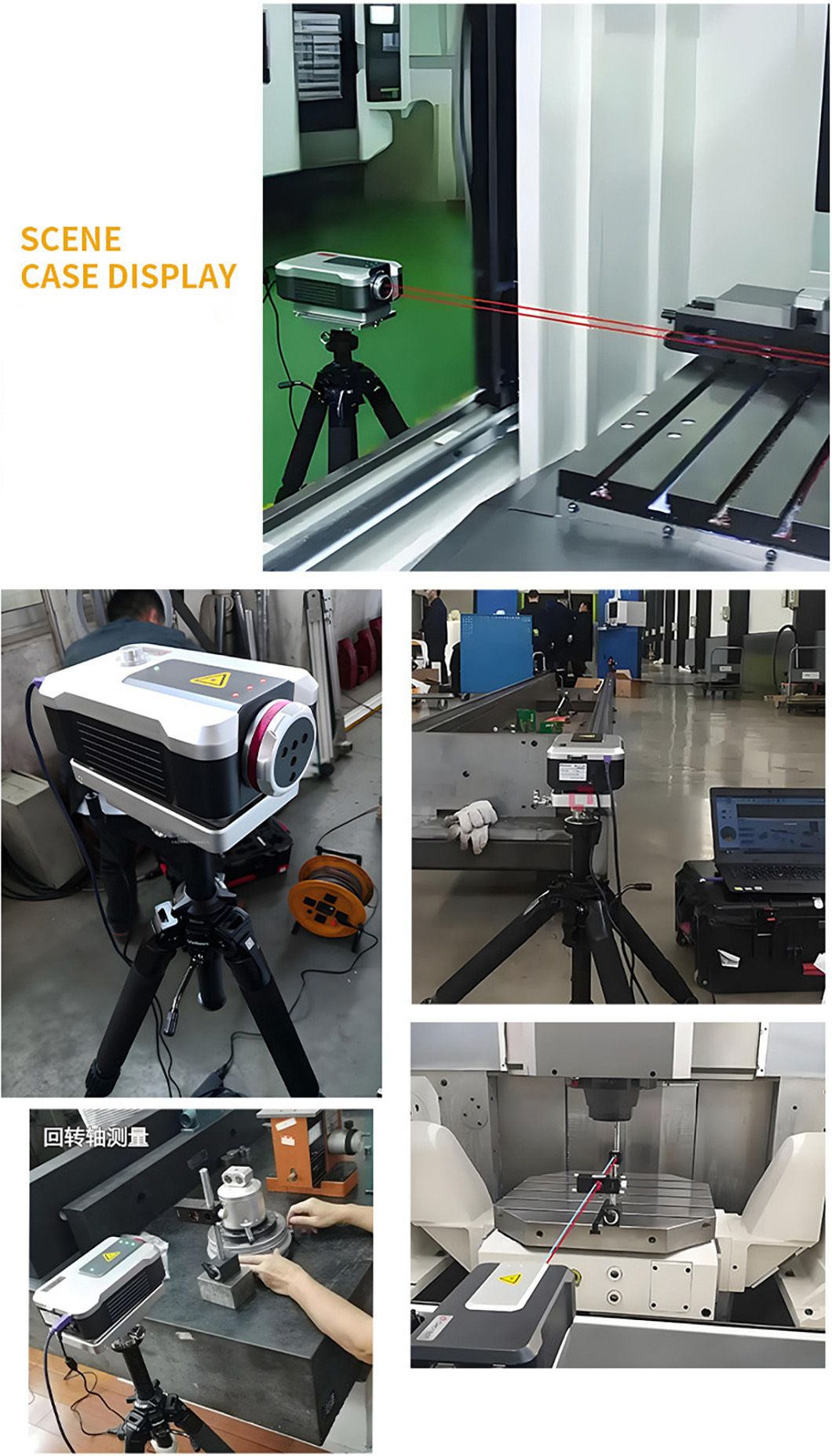

Laser interferometer alignment – Quickly align axes of large equipment or coordinate measuring machines.

Laser interferometer distance measurement – Reliable for industrial automation and large-volume inspection.

CNC machine calibration laser – Perform volumetric accuracy tests and error mapping.

Industries Served

Automotive, aerospace, heavy machinery, energy (wind turbine manufacturing), CMM calibration, and precision engineering.

Contact us for a quote or free technical consultation. Customized solutions available for machine tool builders and calibration service providers.

Technical Specifications

Main Unit
Frequency Stabilization Accuracy: 0.05ppm
Dynamic Acquisition Frequency: 50kHz
Warm-up Time: ≤6 minutes
Operating Temperature Range: (0~40)°C
Storage Temperature Range: (-20~70)°C
Ambient Humidity: (0~95)%RH

Environmental Compensation Unit
Air Temperature Sensor: +0.1°C (0~40)°C, Resolution 0.01°C
Material Temperature Sensor: ±0.1°C (0~55)°C, Resolution 0.01°C
Air Humidity Sensor: ±5%RH (0~95)%RH
Atmospheric Pressure Sensor: ±0.1kPa (65~115)kPa

Linear Measurement
Measurement Distance: (0~80) m (no long-distance linear accessory required)
Measurement Accuracy: 0.5 ppm (0~40) °C
Measurement Resolution: 1 nm
Maximum Measurement Speed: 4 m/s

Angle Measurement
Axis Vector Range: (0~15)m
Measurement Range: ±10°
Measurement Accuracy: ±(0.02%R+0.1+0.024M)" (R is the displayed value, unit: "; M is the measurement distance, unit: m)
Measurement Resolution: 0.1"

Flatness Measurement
Axial Vector Range: (0~15)m
Measurement Range: ±1.5mm
Measurement Accuracy: ±(0.2%R+0.02M2)μm (R is the displayed value, unit: μm; M is the measurement distance, unit: m)
Substrate Size: 180mm adjustable, 360mm adjustable
Measurement Resolution: 0.1μm

Straightness Measurement

	Axial vector range	Measurement range	Measurement accuracy	Resolution
Short Distance	(0.1~4.0)m	±3mm	±(0.5+0.25%R+0.15M²) μm	0.01μm
Long Distance	(1.0~20.0)m	±3mm	±(5.0+2.5%R+0.015M²) μm	0.1μm
Note: R is the displayed value, unit: μm; M is the measurement distance, unit: m

Verticality measurement

	Axial vector range	Measurement range	Measurement accuracy	Resolution
Short Distance	(0.1~3.0)m	±3mm	+(2.5+0.25%R+0.8M) μm/m	0.01μm
Long Distance	(1.0~15.0)m	±3mm	+(2.5+2.5%R+0.08M) μm/m	0.01μm
Note: R is the displayed value, unit: μm; M is the measurement distance, unit: m

Automatic Precision Turntable
Model: WR50
Angle Measurement Range: (0~360)°
Measurement Accuracy: ±1"
Resolution: 0.1"
Maximum Speed: 10rpm
Maximum Tracking Speed: 2rpm
Weight: 1.9kg
Height: 148mm
Diameter: 112mm
Communication Method: Bluetooth Transmission
Power Supply: Lithium Battery
