For machine tool builders, calibration service providers, and quality engineers in heavy industry, verifying linear positioning, angular accuracy, and straightness over long travel distances has traditionally required bulky, lab‑bound interferometers. Today, MSK CNC Tools announces its new portable laser interferometer – a compact, field‑ready laser interferometer engineered for on‑site calibration of CNC machines, CMMs, and large-scale measurement tasks.
Based on the Michelson interferometer principle with a frequency‑stabilized He‑Ne laser source, this portable laser interferometer delivers exceptional coherence and stability, enabling sub‑micron linear measurement over distances up to tens of meters. Whether you need to perform volumetric error mapping on a 5‑axis machining center, verify the positioning accuracy of a gantry crane, or calibrate a coordinate measuring machine, MSK’s laser interferometer provides reliable, repeatable results – right on the factory floor.
Why the Portable Laser Interferometer Outperforms Traditional Methods
Unlike ballbars or step gauges that provide limited data points, this laser interferometer continuously measures linear position, velocity, angle, flatness, straightness, parallelism, and perpendicularity with nanometer‑level resolution. Its key advantages include:
- True portability – the main unit is lightweight and compact; complete system fits in two small transport cases, ideal for field service engineers
- Long measurement range – measures linear distances up to 80 meters without additional long‑range accessories – perfect for large machine tools and gantries
- High measurement speed – captures data at high dynamic acquisition frequency, allowing quick scanning of axis travel
- Environmental compensation – integrated sensors for air temperature, material temperature, humidity, and atmospheric pressure automatically adjust measurements for real‑world conditions
- Multi‑parameter capability – one system handles linear, angular, flatness, straightness, and perpendicularity measurements – no need for separate instruments
Engineered for Machine Tool Calibration & Large Size Measurement
The primary application of this portable laser interferometer is machine tool calibration. Modern CNC machines require regular verification of positioning accuracy to maintain part quality. The laser interferometer performs:
- Linear positioning accuracy per ISO 230‑2 or ASME B5.54
- Angle measurement for pitch, yaw, and roll errors
- Straightness measurement (both horizontal and vertical) over short and long distances
- Flatness measurement for machine beds and granite tables
- Perpendicularity measurement between orthogonal axes
- Volumetric error mapping using multiple measurement sequences
For large size measurement applications (e.g., wind turbine blade molds, aircraft assembly jigs, shipbuilding fixtures), the portable laser interferometer serves as a high‑precision distance meter, verifying overall dimensions where conventional CMMs cannot reach.
Key Applications Across Industries
Machine Tool Builders & Rebuilders
Validate new machines before shipment, perform acceptance tests per international standards, and diagnose wear or geometric errors during rebuilds. The laser interferometer provides the data needed to generate compensation tables for CNC controls (Fanuc, Siemens, Heidenhain, etc.).
Calibration Service Providers
Offer on‑site certification for customer machines. The portable design allows one technician to bring the portable laser interferometer directly to the machine – no need to disassemble or move heavy equipment.
Aerotics & Aerospace Manufacturing
Verify the accuracy of large gantry mills used for wing spars and fuselage panels. The laser interferometer’s long measurement range is essential for these oversized machines.
Heavy Machinery & Energy
Calibrate boring mills, wind turbine component lathes, and hydroelectric turbine machining centres. Both linear and angular measurements ensure that large parts fit together correctly.
CMM Calibration
Use the laser interferometer as a reference standard to verify the volumetric accuracy of coordinate measuring machines, following ISO 10360‑2.
Designed for Real‑World Shop Floors
The portable laser interferometer is built to operate reliably in typical factory conditions (0–40°C, 0–95% RH) with minimal warm‑up time. Features that make it practical include:
- Fast warm‑up – ready to measure in minutes after power‑on
- Environmental compensation unit – automatically corrects for air temperature, material temperature, humidity, and barometric pressure; no manual entry
- Stable frequency‑stabilized laser – maintains accuracy despite temperature fluctuations

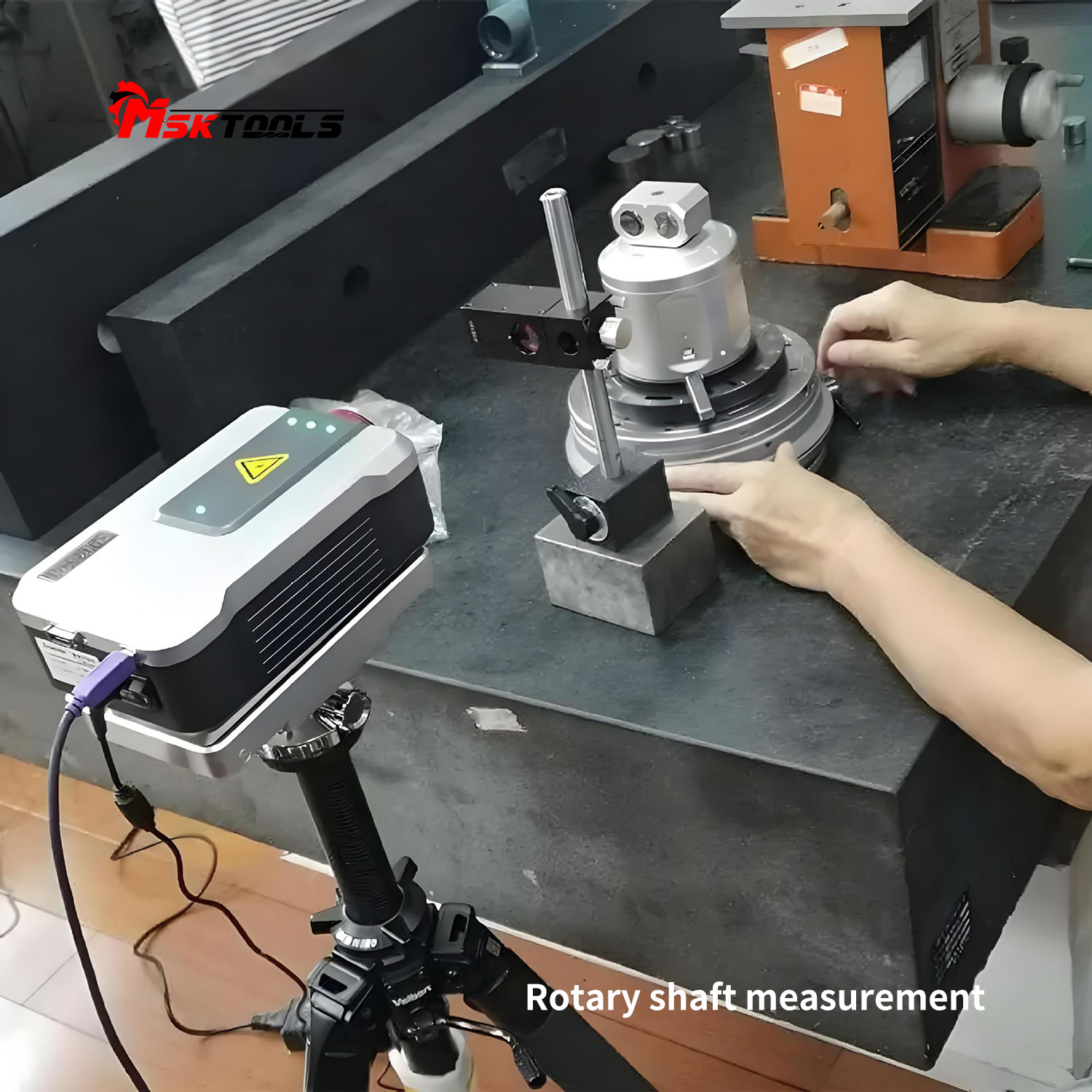

- Bluetooth‑connected turntable – wireless automatic precision turntable for angle measurement, reducing cable clutter
- Robust optics – protected design resists dust and shop contaminants
Complete System – Ready for Immediate Use
MSK ships each portable laser interferometer as a comprehensive turnkey solution including:
- Main interferometer unit with frequency‑stabilized laser
- Environmental compensation sensors (air temp, material temp, humidity, pressure)
- Linear measurement optics (beam splitter, retroreflectors)
- Angle measurement optics (pentaprism, reflector set)
- Straightness measurement optics (short and long distance kits)
- Flatness measurement accessories (adjustable substrates)
- Automatic precision turntable (Bluetooth, for angle measurement)
- High‑performance laptop with dedicated measurement software
- All mounting hardware, tripods, and carrying cases
The software supports standard data formats for generating compensation tables and reports, making it easy to integrate into existing quality systems.
User‑Friendly Software for Fast Analysis
The included software simplifies complex calibration tasks:
- Guided setup – step‑by‑step wizards for each measurement type
- Real‑time display – watch the axis position error as the machine moves
- Automatic data collection – synchronise with machine controller or use manual triggers
- ISO/ASME compliant reports – generate professional calibration certificates
- Compensation file creation – export error maps directly for CNC controllers
- Data trending – track machine accuracy over time to predict maintenance needs
Operators do not need to be metrology experts – intuitive controls and clear graphics reduce training time.
Cost‑Effective Alternative to Premium Brands
MSK offers this laser interferometer at a competitive price point, making high‑accuracy calibration accessible to smaller machine shops and regional calibration services. For larger organisations, multiple units can be deployed across different production lines without exceeding budgets.
Availability & Contact Information
The new portable laser interferometer series is available immediately for global orders. To request a quote, receive a product brochure, or schedule a live online demo:
Email: molly@mskcnctools.com
Phone: 0086-13602071763
Web: www.mskcnctools.com
MSK welcomes inquiries from machine tool builders, calibration service companies, aerospace manufacturers, and heavy equipment producers – from single units to fleet purchases.

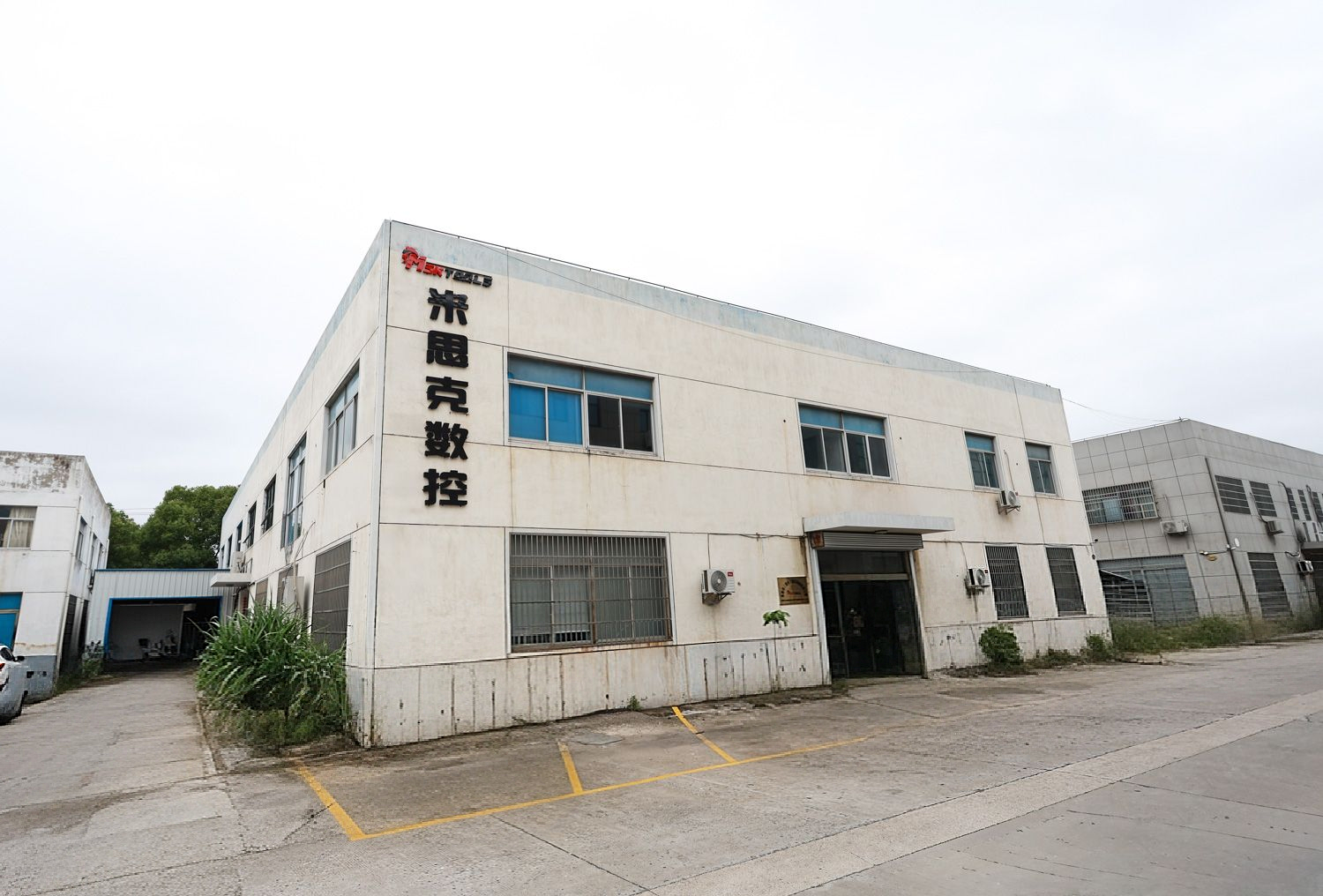

About MSK CNC Tools
Founded in 2015 and ISO 9001 certified, MSK (Tianjin) Cutting Technology Co., Ltd. specialises in high‑precision metrology instruments (including laser interferometers, laser trackers, surface profilers, and contour measuring systems) as well as CNC cutting tools. With advanced German and Taiwanese manufacturing equipment and a dedicated R&D team, MSK serves customers across Europe, America, and Asia. The company’s mission is to provide reliable, cost‑effective solutions for dimensional quality control.
