CNC machining accuracy isn’t just about spindles and tools anymore. Geometric errors in machine movement – like backlash, servo mismatch, or straightness deviation – quietly eat up tolerances. And most shops don’t spot them until parts fail inspection.
That’s exactly the problem MSK CNC Tools is solving with its newly available High-Precision Ballbar. Designed for regular geometric accuracy checks on CNC machine tools, the ballbar gives users a clear, data-driven picture of a machine’s real positioning performance.
Why Shops Are Adding Ballbar Tests to Monthly Maintenance
Traditionally, full geometric calibration meant long downtime or expensive external service calls. MSK’s ballbar changes the workflow:

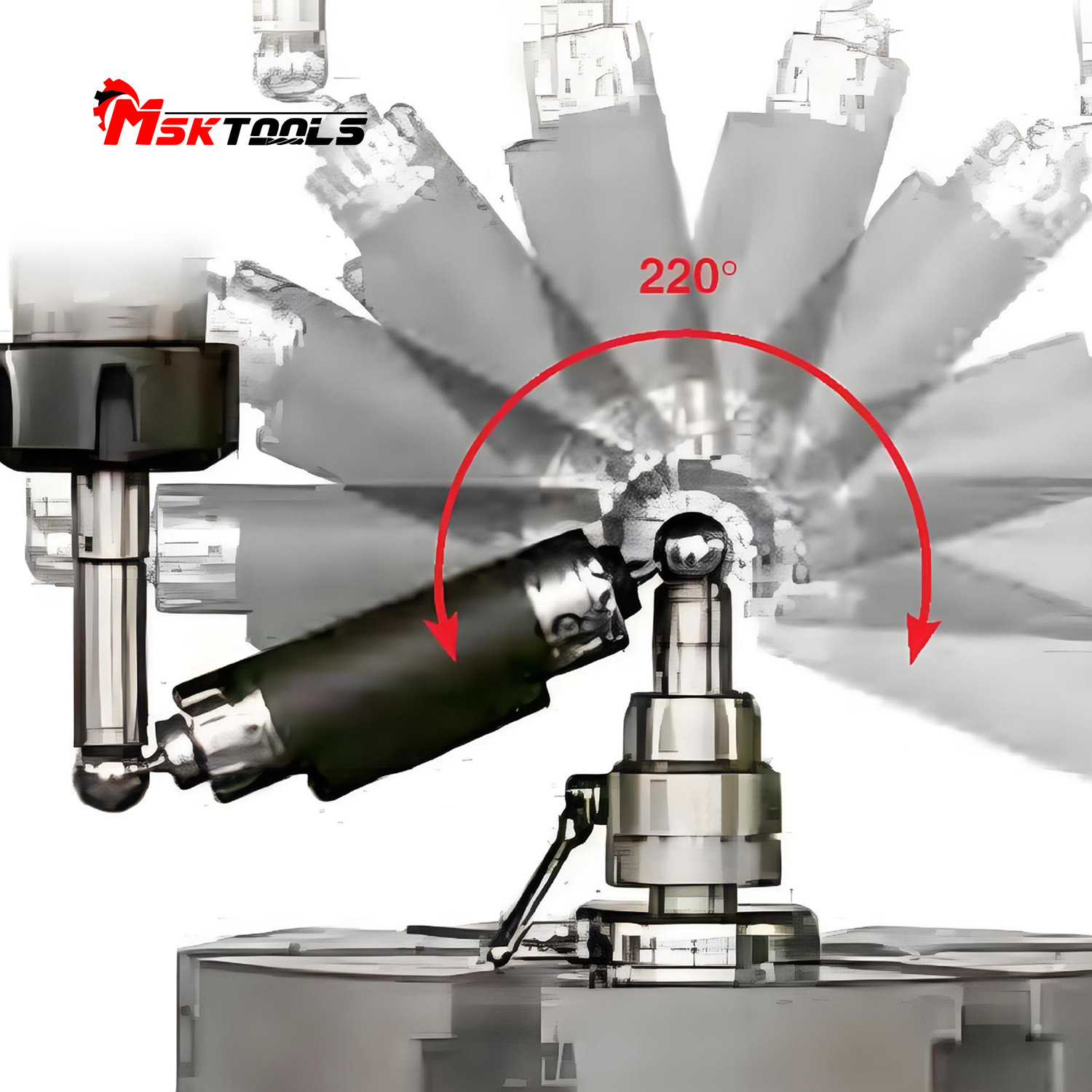

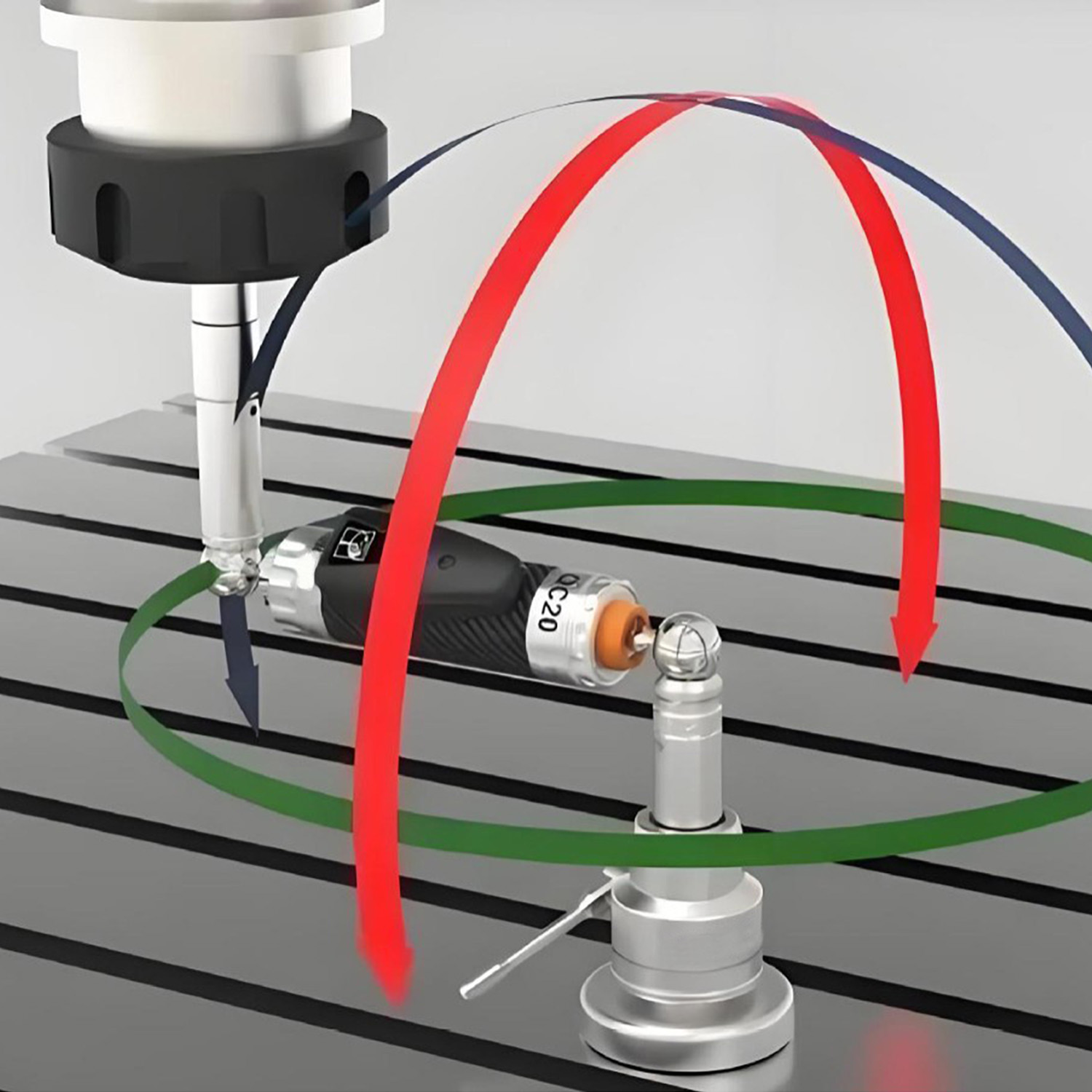

- Attach two precision spheres – one on the machine spindle, one on the work table.
- Run a circular test path.
- Software translates the measured deviation into an ISO 230-4 or ASME B5.54 report.
The result? Operators can now diagnose axis coupling, scale mismatch, reversal spikes, and cyclic errors without guessing.
“A lot of users tell us they only find geometric issues during annual certification, which is too late for batch production,” said a product manager at MSK. “This ballbar is meant for regular use – so you catch drift early, not after hundreds of bad parts.”
Built for Real Shop Floor Conditions
From the product specs and application feedback, the high-precision ballbar focuses on three practical strengths:
- Stable thermal behavior – Minimal expansion shift during a full day’s testing sequence.
- User-changeable accessories – Different mounting kits for vertical mills, horizontal machining centers, and large gantries.
- Straightforward software – No hidden paywalls for basic diagnostics; reports export to PDF and CSV.
This makes it a viable alternative for mid-size job shops that need in-house accuracy verification without a metrology lab’s budget.
Who Is Already Using It
Early units have been tested in:
- Aerospace component machining (tight form and position tolerances)
- Automotive powertrain lines (reducing scrap from axis wear)
- General mold and die shops (checking 3D contour accuracy)
Common feedback: the test cycle takes under 15 minutes from setup to report, and the repeatability between runs is consistent even after months of shop floor use.
Availability
The MSK High-Precision Ballbar is available now directly from the manufacturer. Shops can request a quote or technical datasheet through the product page:
https://www.mskcnctools.com/high-precision-ballbar-high-precision-cnc-machine-tool-geometric-accuracy-product/
For bulk or OEM inquiries, contact the MSK sales team via the website.
About MSK CNC Tools
MSK CNC Tools specializes in precision measurement and tooling solutions for CNC machining. Their product range focuses on practical shop-floor accuracy improvement – not just lab certification.
