A drill bit that spins in the chuck under heavy feed isn’t just annoying – it wrecks hole quality, burns up cutting edges, and slows the whole job down. That’s exactly the problem a taper shank drill bit solves. Instead of relying on friction, the Morse taper shank wedges solidly into the spindle, giving you a positive, self-locking drive that handles high torque without slipping.

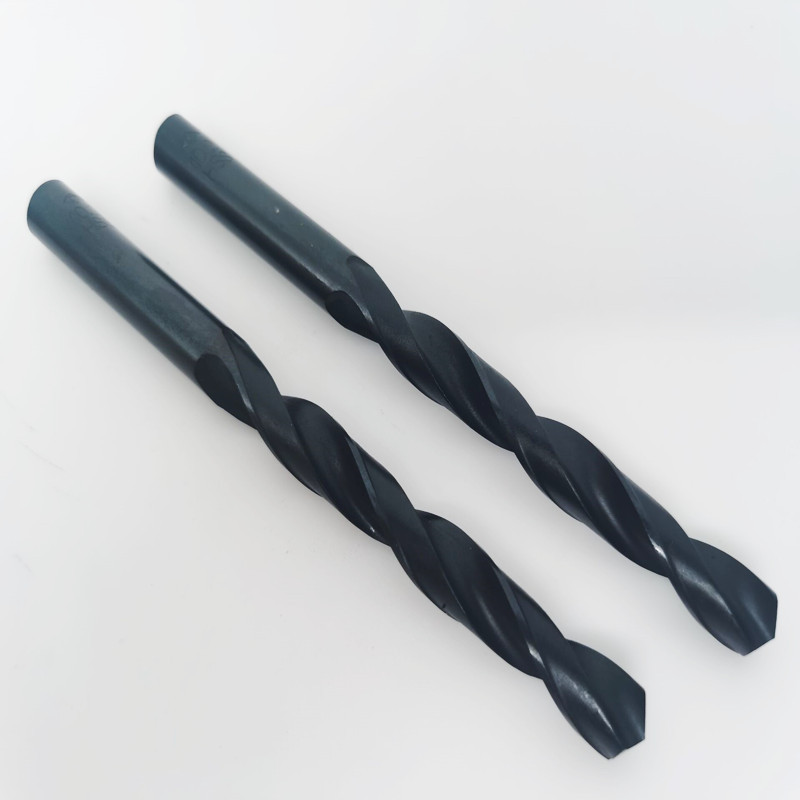

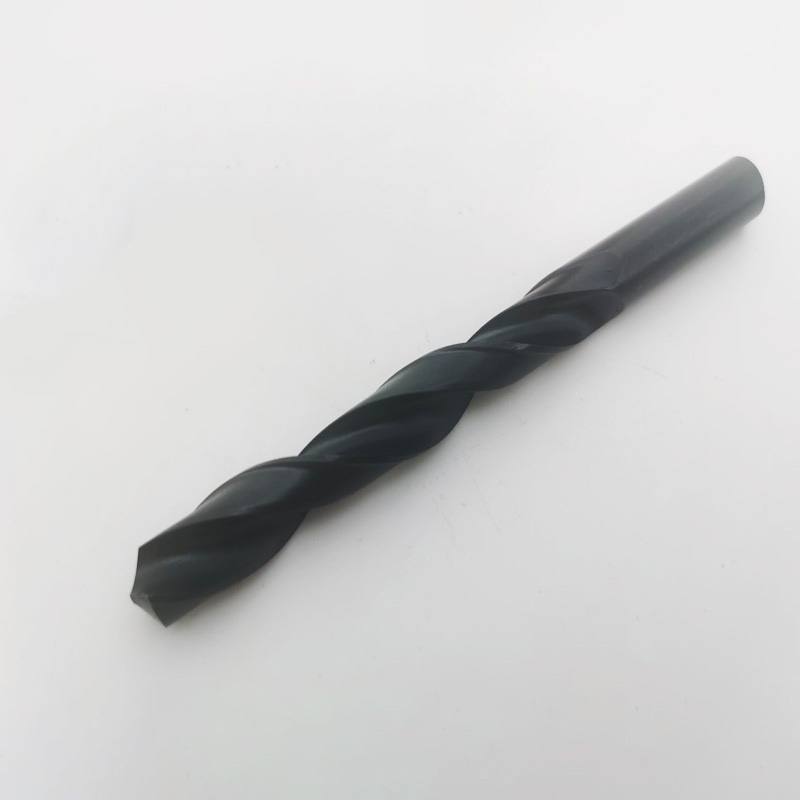

At MSK, we build our taper shank twist drills around the kind of day-in, day-out reliability workshops need. The HSS Taper Shank Drill Bit 4241 – 118° Chisel Edge range covers diameters from 12 mm to 20 mm, filling the gap between small jobber bits and large inserted-tip tooling. Let’s walk through what makes these bits worth a spot in your tool crib.
Why a Taper Shank Makes Sense
Straight shank bits work fine for light-duty handheld drilling. But mount a large-diameter bit in a drill press, radial arm drill, or bench drill, and the story changes. The torque load rises fast, and a standard jaw chuck can’t always grip hard enough. A Morse taper shank transfers the driving force through the entire tapered surface, so the bit stays put even when you push it hard through cast iron or tough aluminum alloys.
Our bits use a standard Morse taper (MT2 for most sizes in this range) that drops directly into the spindle or a matching sleeve. Quick change-out, minimal runout, and no chewed-up shanks from slipping chucks.
The Steel Behind the Edge: HSS 4241
High-speed steel isn’t one-size-fits-all. We chose 4241 grade HSS because it delivers a well-balanced mix of toughness, wear resistance and red-hardness without the brittleness that sometimes comes with higher-alloyed grades. The molybdenum-rich chemistry helps the bit hold an edge longer than ordinary carbon steel, yet it’s forgiving enough to handle occasional vibration or less-than-perfect setups on manual machines.
The 118° chisel edge point is the classic general-purpose grind. It centers reliably, breaks the chip nicely in medium-hard materials, and doesn’t demand the extra rigidity a 135° split-point often needs. For cast iron, aluminum alloys, mild steel, wood and plastics, this geometry simply works.
Quick-Spec Table: Diameters, Flute Length, Overall Length
Here’s the size breakdown so you can pick the right drill for your job. All dimensions are in millimeters.
| Diameter (mm) | Flute Length (mm) | Total Length (mm) |
|---|---|---|
| 12.0 | 101 | 151 |
| 12.5 | 101 | 151 |
| 13.0 | 101 | 151 |
| 13.5 | 108 | 160 |
| 14.0 | 108 | 160 |
| 14.5 | 114 | 169 |
| 15.0 | 114 | 169 |
| 15.5 | 120 | 178 |
| 16.0 | 120 | 178 |
| 16.5 | 125 | 184 |
| 17.0 | 125 | 184 |
| 17.5 | 130 | 191 |
| 18.0 | 130 | 191 |
| 18.5 | 135 | 198 |
| 19.0 | 135 | 198 |
| 19.5 | 140 | 205 |
| 20.0 | 140 | 205 |

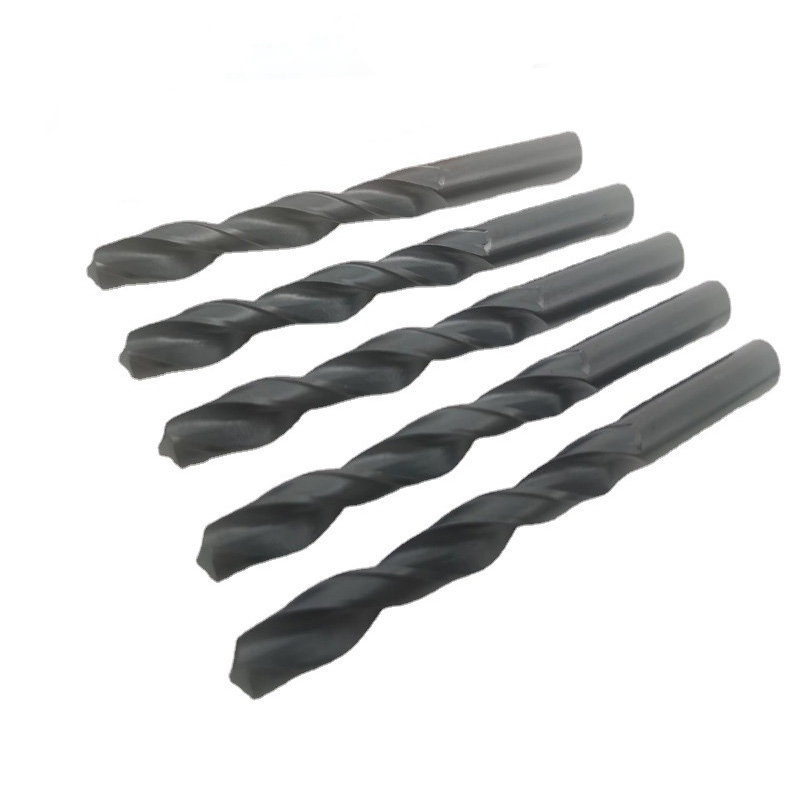

The flute and overall lengths follow a practical progression: enough flute to evacuate chips from deeper holes, without making the drill excessively long and whippy. If your application regularly requires deeper holes, let us know – we can discuss custom length options.
Where These Drills Shine – and One Non-Negotiable Rule
The 4241 taper shank bits are right at home on drilling machines, bench drills, pillar drills and even large hand drills equipped with a Morse taper adapter. Common workpiece materials include:
Cast iron (grey, ductile)
Aluminum alloys and aluminum castings
Brass and copper
Wood, MDF, plywood
Rigid plastics (PVC, nylon, HDPE)
One simple practice makes an outsized difference in tool life: always use a coolant or water when drilling metal. Friction builds up fast at the tip, and without cooling, the drill can draw temper in seconds, softening the cutting edge and leading to premature burnout. A steady flow of water-soluble coolant, cutting oil, or even a careful water mist (for cast iron) pulls heat out of the cut and keeps the HSS substrate performing at its designed hardness.
Quality That’s Measured, Not Just Claimed
A drill bit might look fine to the naked eye, but tiny variations in point symmetry or web thickness can ruin hole tolerance. That’s why every batch we produce moves through our German ZOLLER six-axis tool inspection center. Runout, geometry, and edge preparation are verified against tight in-house standards.
The manufacturing chain behind these bits includes German SACCKE five-axis CNC grinding centers and Taiwan PALMARY cylindrical grinding machines. Combined with Rheinland ISO 9001 certification, this isn’t just marketing language – it’s the system that keeps our HSS taper shank drills consistent from the first piece to the last.
About MSK – The Workshop Behind the Tool
MSK (Tianjin) Cutting Technology Co., Ltd. has been on the shop floor since 2015. We’re not a trading company that labels and ships whatever is available. Our factory specializes in high-performance solid carbide cutting tools: end mills, drills, reamers, taps, and custom specials. The HSS taper shank drill line may not be carbide, but it’s built inside the same quality framework that earned us our ISO 9001 certification through TÜV Rheinland.
We run our own production, which means direct control over raw material sourcing, grinding parameters, and final inspection. If you need a reliable taper shank bit that won’t let you down on a Friday afternoon rush job, we’ve got you covered.
Beyond the product itself, we bring a few extra things to the table:
Cost control: Factory-direct pricing without the middleman markup, so you get a high-quality drill at a sensible cost.
48-hour response: Our quoting and support team comes back to you within two business days with clear answers and pricing.
OEM and customization: Need your own label, a specific flute geometry, or a non-standard overall length? We handle OEM orders and provide label printing.
After-sales technical guidance: We don’t disappear after the invoice. Our team helps with tool selection, speeds and feeds, and troubleshooting.
MSK (Tianjin) Cutting Technology Co., LTD
Email: molly@mskcnctools.com
Phone: 0086-13602071763
FAQ
Are you a manufacturer or a trading company?
We are a factory that produces solid carbide cutting tools.
Can you ship directly to our freight forwarder in China?
Absolutely. If you have a forwarder here, we’ll deliver your order to them without hassle. This also simplifies export logistics for many international customers.
What payment terms do you accept?
We typically work with T/T (bank transfer). If your procurement process requires something different, let us know and we’ll find a workable solution.
Do you accept OEM orders?
Yes. OEM, custom dimensions, special point geometry, and private labeling are all part of what we do daily. Send over your print or requirements, and we’ll take it from there.
Why choose MSK over other suppliers?
Three words come up most often when customers give feedback: consistency, responsiveness, and real technical support. You’re not just buying a drill bit – you’re plugging into a team that understands tooling and wants your operation to succeed.
