If you’ve ever struggled with chatter, poor surface finish, or broken boring bars when machining deep holes, you know how frustrating vibration can be. MSK (Tianjin) Cutting Technology Co., Ltd. just released something that could make that problem a lot smaller: a new anti vibration tool holder designed specifically for CNC boring applications.

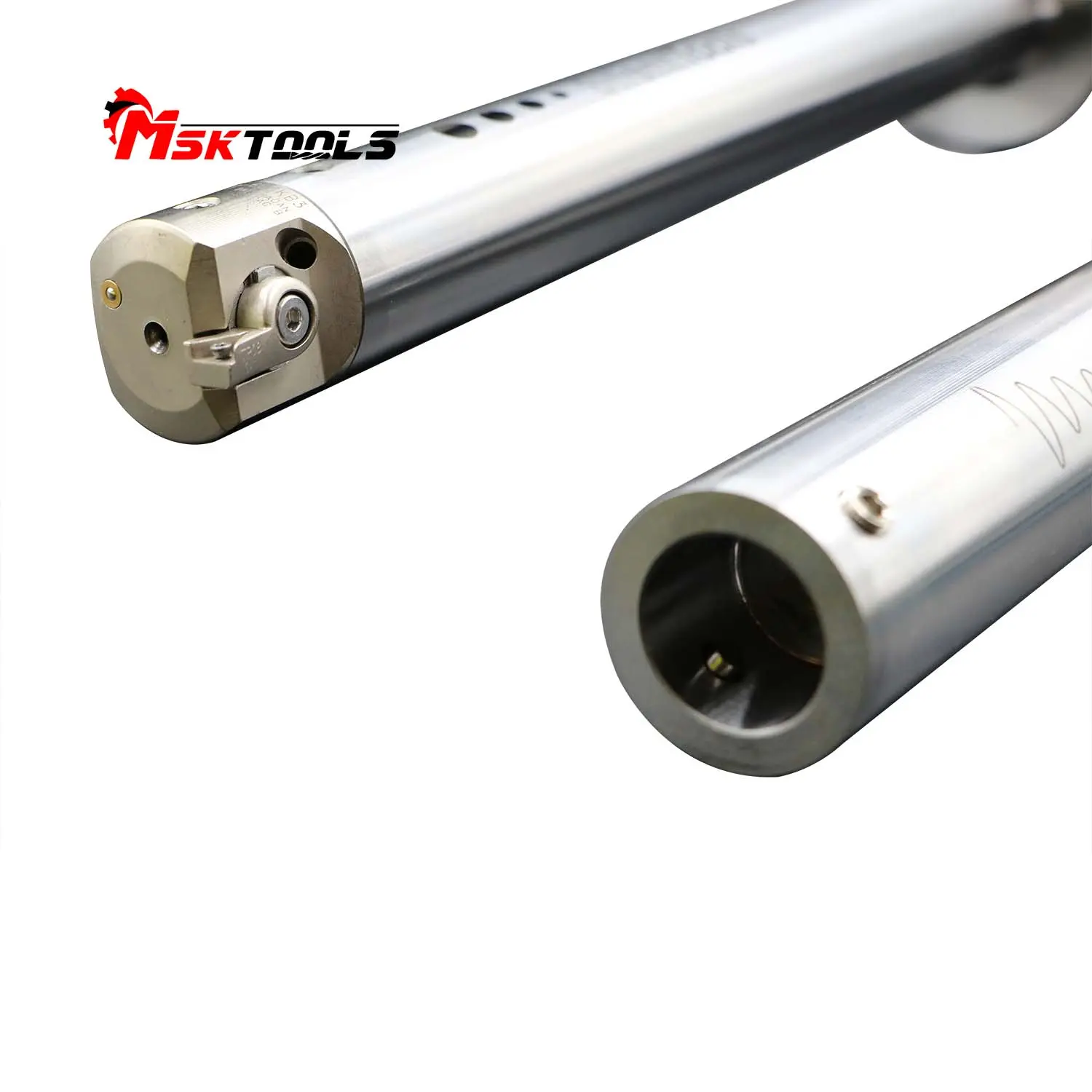

It’s called the HSK63A-FMHC Damping Tool Handle, and the idea is pretty simple but effective – kill the vibration before it ruins your workpiece.
What Makes This Anti Vibration Tool Holder Different?
Most tool holders just hold the tool. This one actively absorbs shock. MSK engineers built advanced damping technology right into the body. So when the boring bar starts vibrating during deep hole machining, the holder soaks up that energy and keeps the cutting edge stable.
The result? Better surface finish, longer tool life, and fewer headaches for the machinist.
"We see vibration as the number one enemy in deep hole boring," a company representative explained. "Our damping holder changes the game because it keeps the tool in constant, smooth contact with the material."
A Holder for Real-World CNC Work
The new holder comes with an HSK63A shank – a common interface on many modern CNC machines – and is available in three bore sizes: 16mm, 22mm, and 27mm. That means it can fit a wide range of boring bars.
Length options are generous too. Projection lengths go from 150mm all the way up to 500mm in 50mm steps. So whether you're boring shallow holes or going really deep, there's a version that works.
Here’s a quick look at what’s available (all dimensions in mm):
| Model | L1 (Projection) | Body diameter | Bore (d) |
|---|---|---|---|
| HSK63A-FMHC16-150 | 150 | 37 | 16 |
| HSK63A-FMHC16-200 | 200 | 37 | 16 |
| ... up to 500 | 500 | 37 | 16 |
| HSK63A-FMHC22-150 | 150 | 47 | 22 |
| ... up to 500 | 500 | 47 | 22 |
| HSK63A-FMHC27-200 | 200 | 60 | 27 |
| ... up to 500 | 500 | 60 | 27 |
Why Machinists Are Paying Attention
Vibration isn't just annoying – it’s expensive. It wears out tools faster, leaves ugly marks on bores, and sometimes forces you to run the machine at slower speeds just to keep things under control. That kills productivity.
Users of this new anti vibration tool holder can expect:
- Much less chatter even at long reaches
- Smoother bore surfaces that often don’t need extra finishing
- Longer boring bar life (less edge chipping)
- Ability to push cutting parameters higher without vibration penalties
Made by a Real Tool Factory (Not a Reseller)
MSK isn't some trading company. They’re an actual manufacturer. Founded in 2015, they run German SACCKE five-axis grinding centers, ZOLLER inspection systems, and Taiwan PALMARY machines. They’ve also got Rheinland ISO 9001 certification.
Their main business is solid carbide tools – end mills, drills, reamers, taps. But they’ve been expanding into tool holding systems, and this damping holder is one of their latest releases.
Custom Orders and Global Shipping
Need a non-standard length? No problem. MSK does OEM and custom orders, including label printing. They accept T/T payments and can ship directly to your forwarder in China.
They also promise a fast response – usually within 48 hours for a quote – and after-sales technical support.
For more details or to request a quote, visit the product page here:
vibration damping tool holder
Contact:
Molly
Email: molly@mskcnctools.com
Phone: 0086-13602071763
Post time: Jun-02-2026
