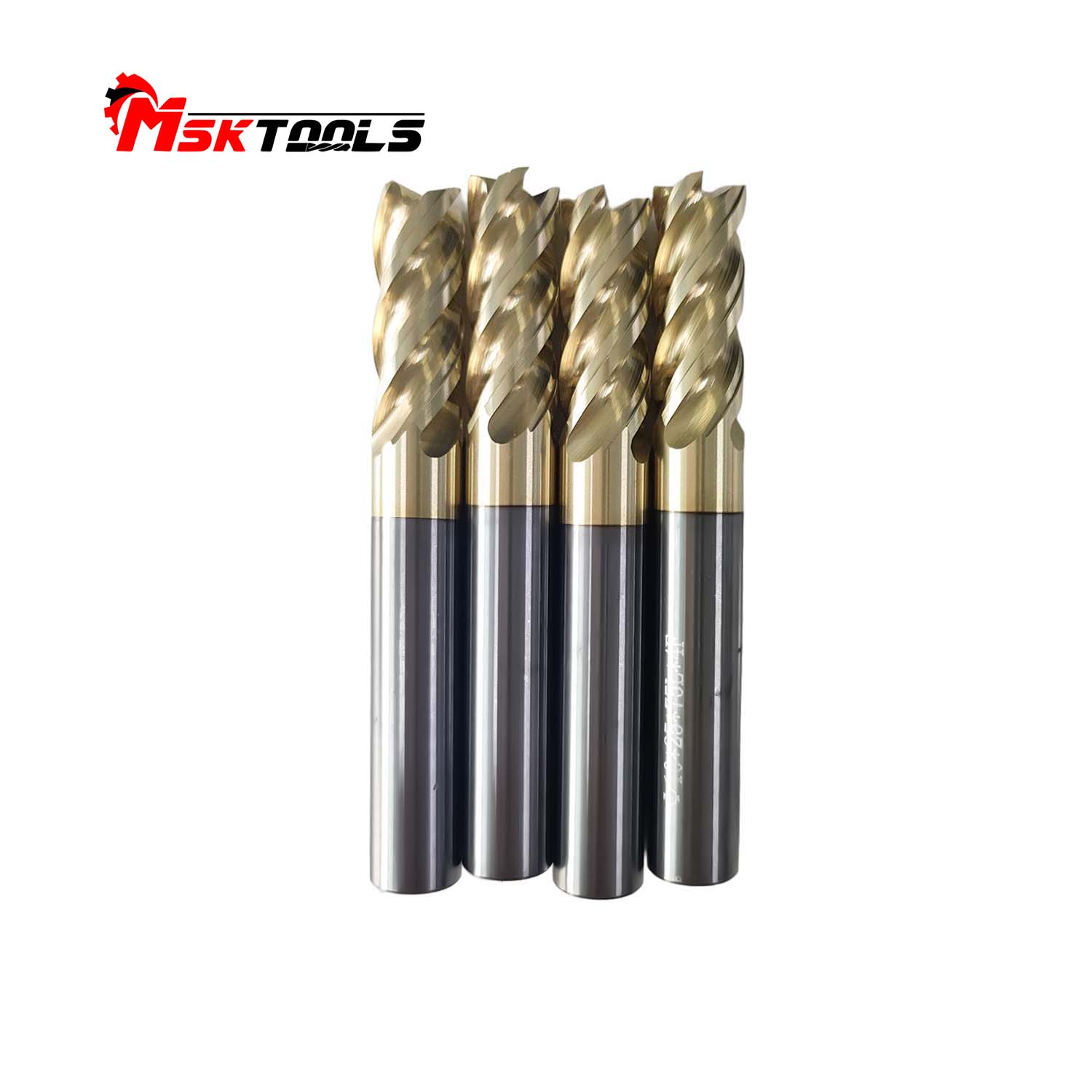

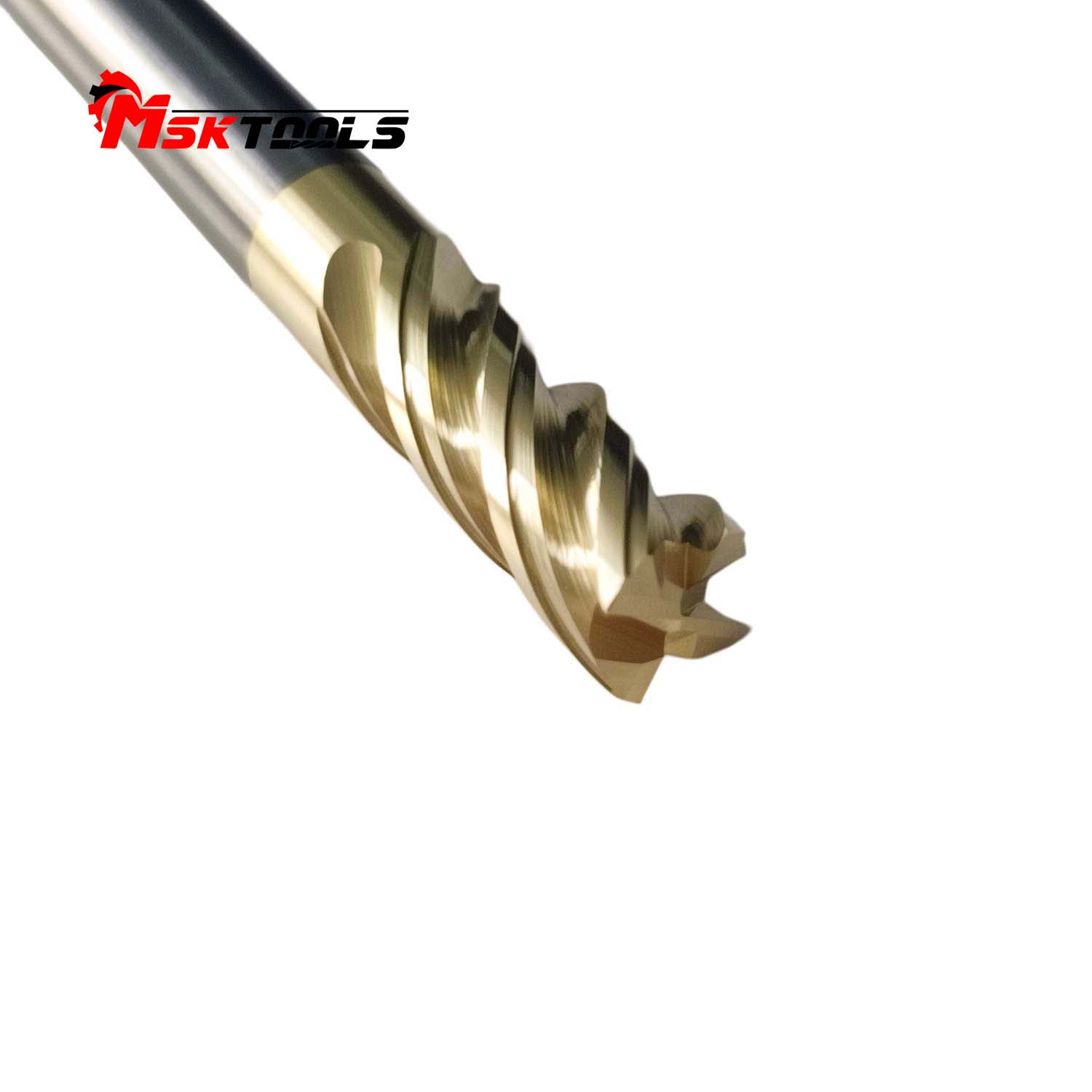

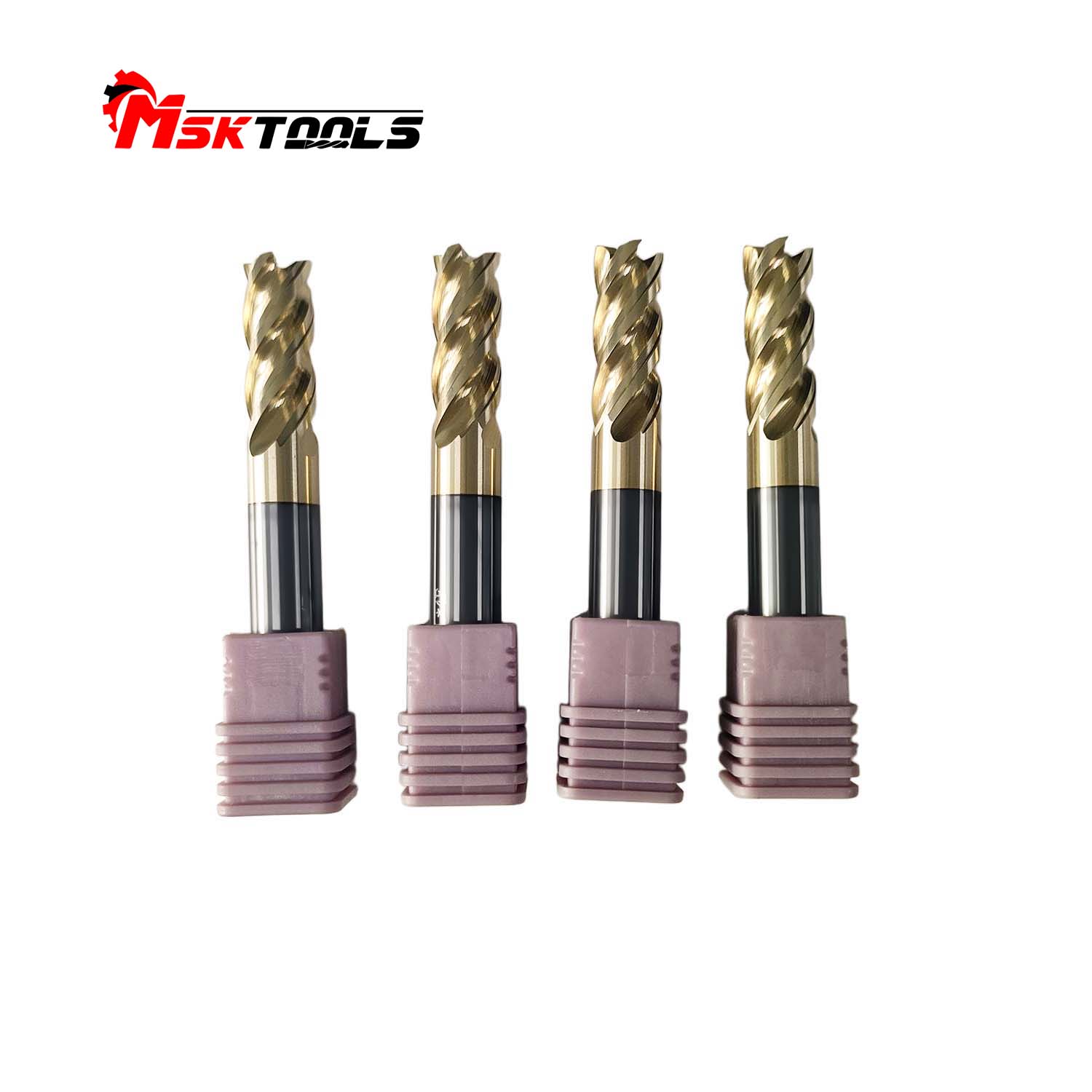

High-Quality Alnovz3 NanocoatingsTungsten Carbide End Mills | Precision Milling Tools for Professionals

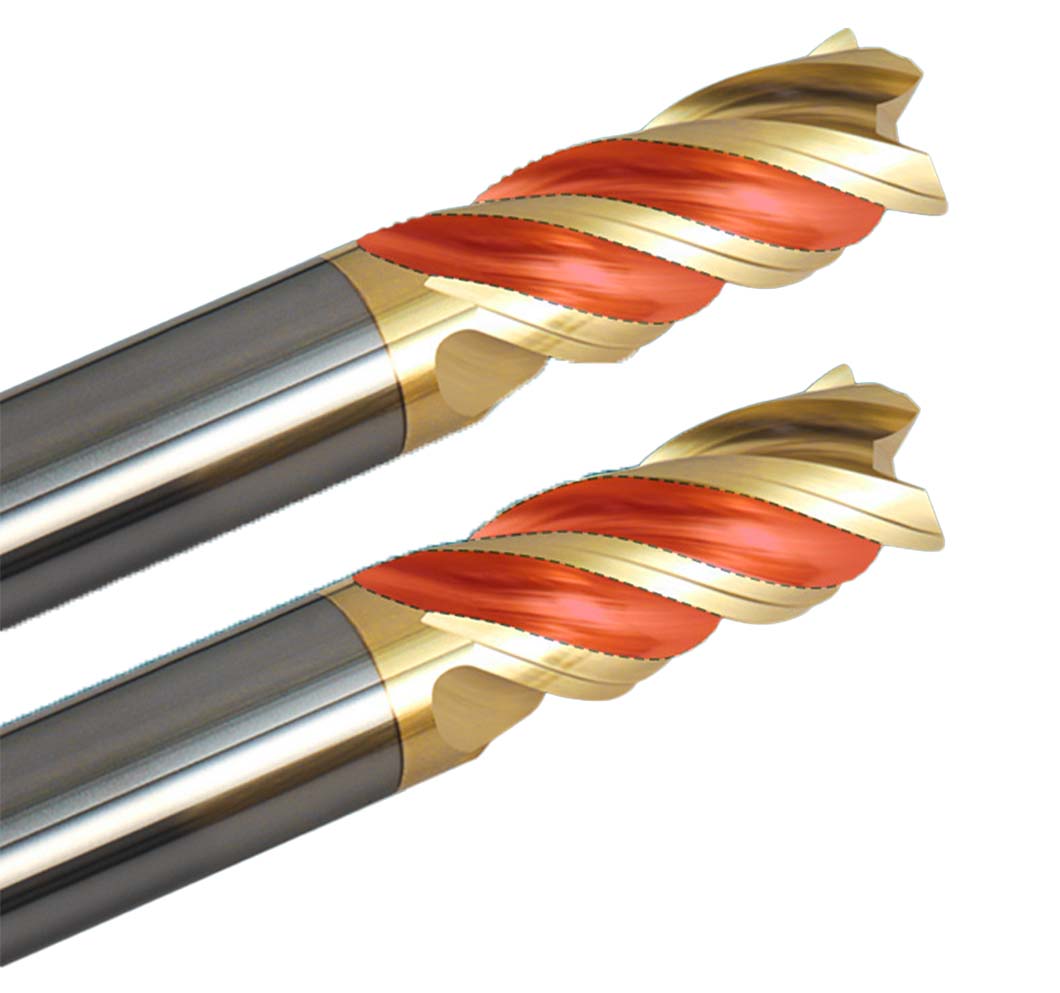

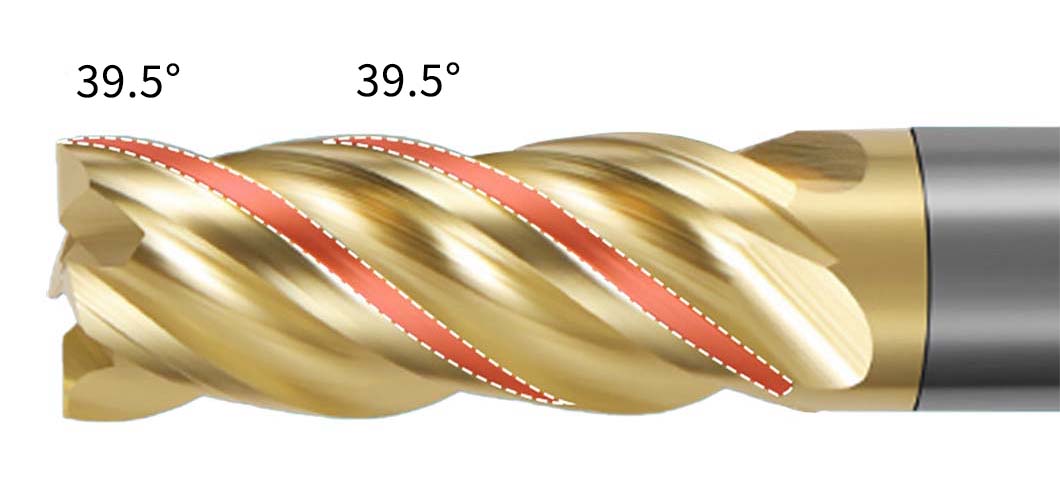

Unequal Helix Unequal Split Edge
U-groove design

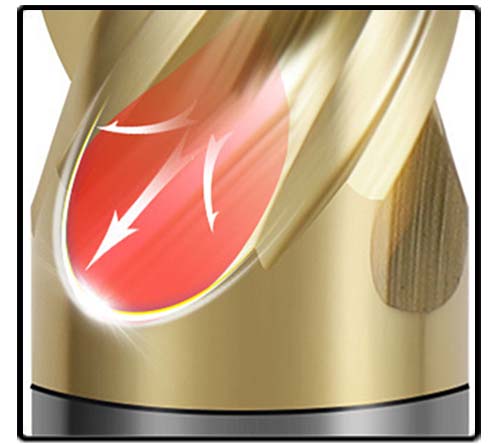

Large-capacity chip removal
Specification
|
Product Name
|
70 degree tungsten steel flat cutter gold
|
Product Hardness
|
70
|
|
Cutting Edge Coating
|
Alnovz3 nano-coating
|
Number of Edges
|
4 Edges
|
|
Applicable Equipment
|
Machining centers, CNC milling machines, precision engraving machines and other high-speed machines
|
||
|
Model number
|
Blade edge length
|
Cutting hardness
|
Blade material
|
Blade edge diameter
|
Type of milling cutter
|
|
1*3*4*50
|
3
|
HRC70
|
tungsten steel
|
1
|
|
|
1.5*4*4*50
|
4
|
HRC70
|
tungsten steel
|
1.5
|
|
|
2*6*4*50
|
6
|
HRC70
|
tungsten steel
|
2
|
|
|
2.5*8*4*50
|
8
|
HRC70
|
tungsten steel
|
2.5
|
|
|
3*9*3*50
|
9
|
HRC70
|
tungsten steel
|
3
|
1
|
|
3*9*4*50
|
9
|
HRC70
|
tungsten steel
|
3
|
2
|
|
3.5*11*4*50
|
11
|
HRC70
|
tungsten steel
|
3.5
|
|
|
4*12*4*50
|
12
|
HRC70
|
tungsten steel
|
4
|
|
|
5*13*5*50
|
13
|
HRC70
|
tungsten steel
|
5
|
3
|
|
5*13*6*50
|
13
|
HRC70
|
tungsten steel
|
5
|
4
|
|
6*15*6*50
|
15
|
HRC70
|
tungsten steel
|
6
|
|
|
8*20*8*60
|
20
|
HRC70
|
tungsten steel
|
8
|
|
|
8*24*8*60
|
24
|
HRC70
|
tungsten steel
|
8
|
|
|
3*12*3*75
|
12
|
HRC70
|
tungsten steel
|
3
|
5
|
|
4*16*4*75
|
16
|
HRC70
|
tungsten steel
|
4
|
|
|
6*24*6*75
|
24
|
HRC70
|
tungsten steel
|
6
|
|
|
8*25*8*75
|
25
|
HRC70
|
tungsten steel
|
8
|
|
|
10*25*10*75
|
25
|
HRC70
|
tungsten steel
|
10
|
|
|
12*30*12*75
|
30
|
HRC70
|
tungsten steel
|
12
|
|
|
3*12*3*100
|
12
|
HRC70
|
tungsten steel
|
3
|
|
|
4*20*4*100
|
20
|
HRC70
|
tungsten steel
|
4
|
|
|
6*30*6*100
|
30
|
HRC70
|
tungsten steel
|
6
|
|
|
8*35*8*100
|
35
|
HRC70
|
tungsten steel
|
8
|
|
|
10*40*10*100
|
40
|
HRC70
|
tungsten steel
|
10
|
|
|
12*45*12*100
|
45
|
HRC70
|
tungsten steel
|
12
|
|
|
14*45*14*100
|
45
|
HRC70
|
tungsten steel
|
14
|
|
|
16*45*16*100
|
45
|
HRC70
|
tungsten steel
|
16
|
|
|
18*45*18*100
|
45
|
HRC70
|
tungsten steel
|
18
|
|
|
20*45*20*100
|
45
|
HRC70
|
tungsten steel
|
20
|
|
|
6*45*6*150
|
45
|
HRC70
|
tungsten steel
|
6
|
|
|
8*50*8*150
|
50
|
HRC70
|
tungsten steel
|
8
|
|
|
10*55*10*150
|
55
|
HRC70
|
tungsten steel
|
10
|
|
|
12*55*12*150
|
55
|
HRC70
|
tungsten steel
|
12
|
|
|
14*75*14*150
|
75
|
HRC70
|
tungsten steel
|
14
|
|
|
16*75*16*150
|
75
|
HRC70
|
tungsten steel
|
16
|
|
|
20*75*20*150
|
75
|
HRC70
|
tungsten steel
|
20
|
