High Precision Universal Tensile Testing Machine | Electronic Pull Force Tester for Rubber & Metal
Ordering Instructions

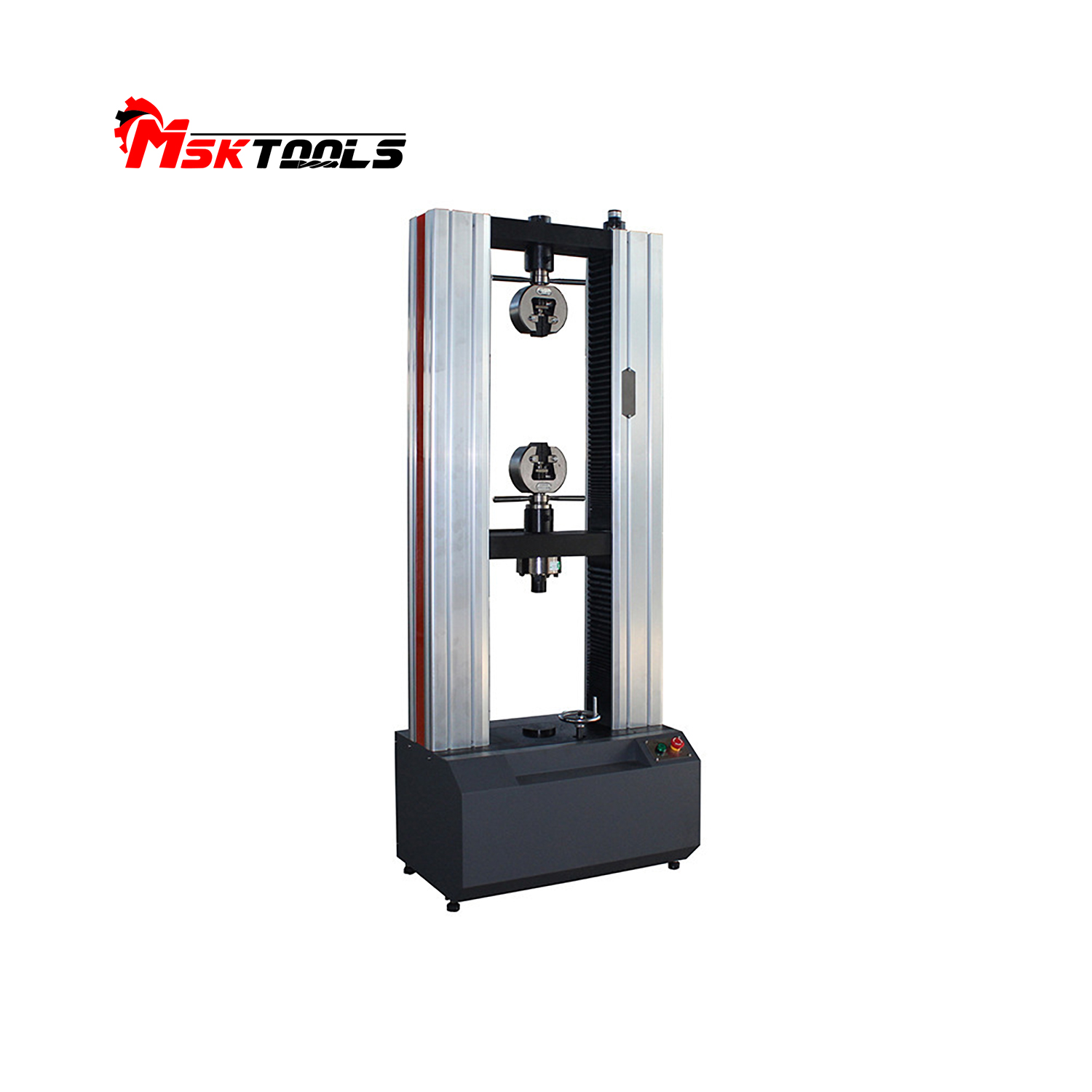

Universal Testing Machine
Low noise / High efficiency / Attractive appearance / Easy operation / Stable and reliable performance
Eight Key Product Advantages
High Performance
Automatic Calibration
Fast Response
Open Design
High-Speed Transmission
Accurate Measurement
Quality Assurance
Real-Time Monitoring
Product Information
| Power supply | 18~22C | Motor power | 1KW |
| Large test force | 100KN | Main unit dimensions | 740*500*2000mm |
| Tensive space | 650mm | Testing machine accuracy | Level 1 |
| Compression space | 650mm | Displacement resolution | 0.01mm |
| Column spacing | 400mm | Test speed range | 0.01-500mm/min |
| Main unit weight | 500Kg | Test force measurement range | 2%-100% |
| Wedge tensile clamps: 4-26mm for round specimens / 0-21mm for flat specimens | |||

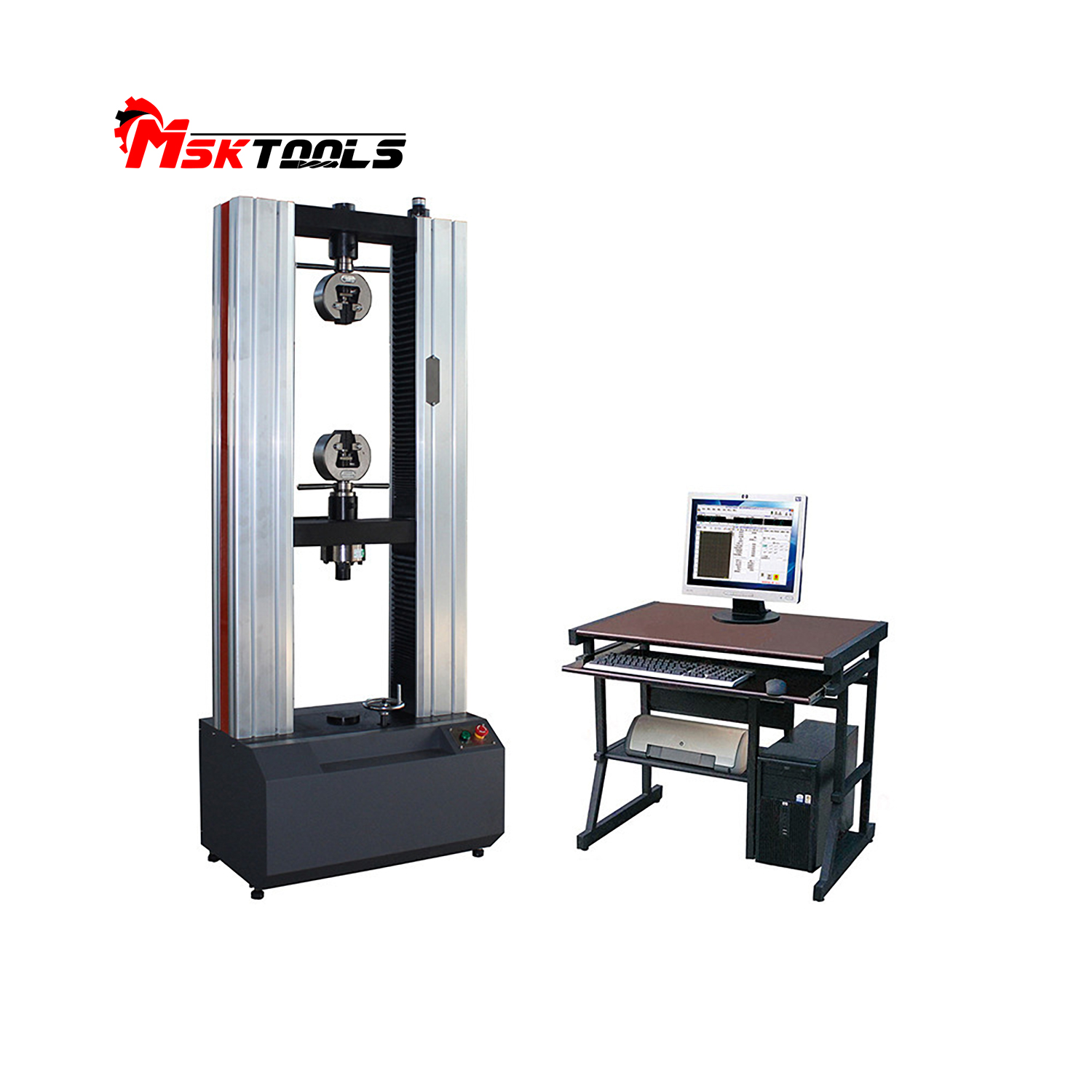

System basic configuration
| Serial Number | Name | Specifications | Quantity |
| 1 | Testing machine main unit | Homemade | 1 unit |
| 2 | Test control software | Homemade | 1 set |
| 3 | Data acquisition card | Homemade | 1 set |
| 4 | Servo motor | Dongneng | 1 set |
| 5 | Speed control system | Dongneng | 1 set |
| 6 | Sensor | Bengbu | 1 unit |
| 7 | Photoelectric encoder | Changchun | 1 set |
| 8 | Ball screw pair | ABBA | 2 sets |
| 9 | Computer | Lenovo (2GB RAM, 500GB HDD, 17-inch LCD monitor) | 1 unit |
| 10 | Printer | Canon or HP (color printing) | 1 unit |
| 11 | Wedge tensile fixture | Round jaws 4-9mm | 1 set |
| Flat jaws 0-7mm | 1 set | ||
| 12 | Compression fixture | Pressure plate Φ100 | 1 set |
| 13 | Tools | 1 set | |
| 14 | Documents | Instruction manual, certificate of conformity, etc | 1 set |

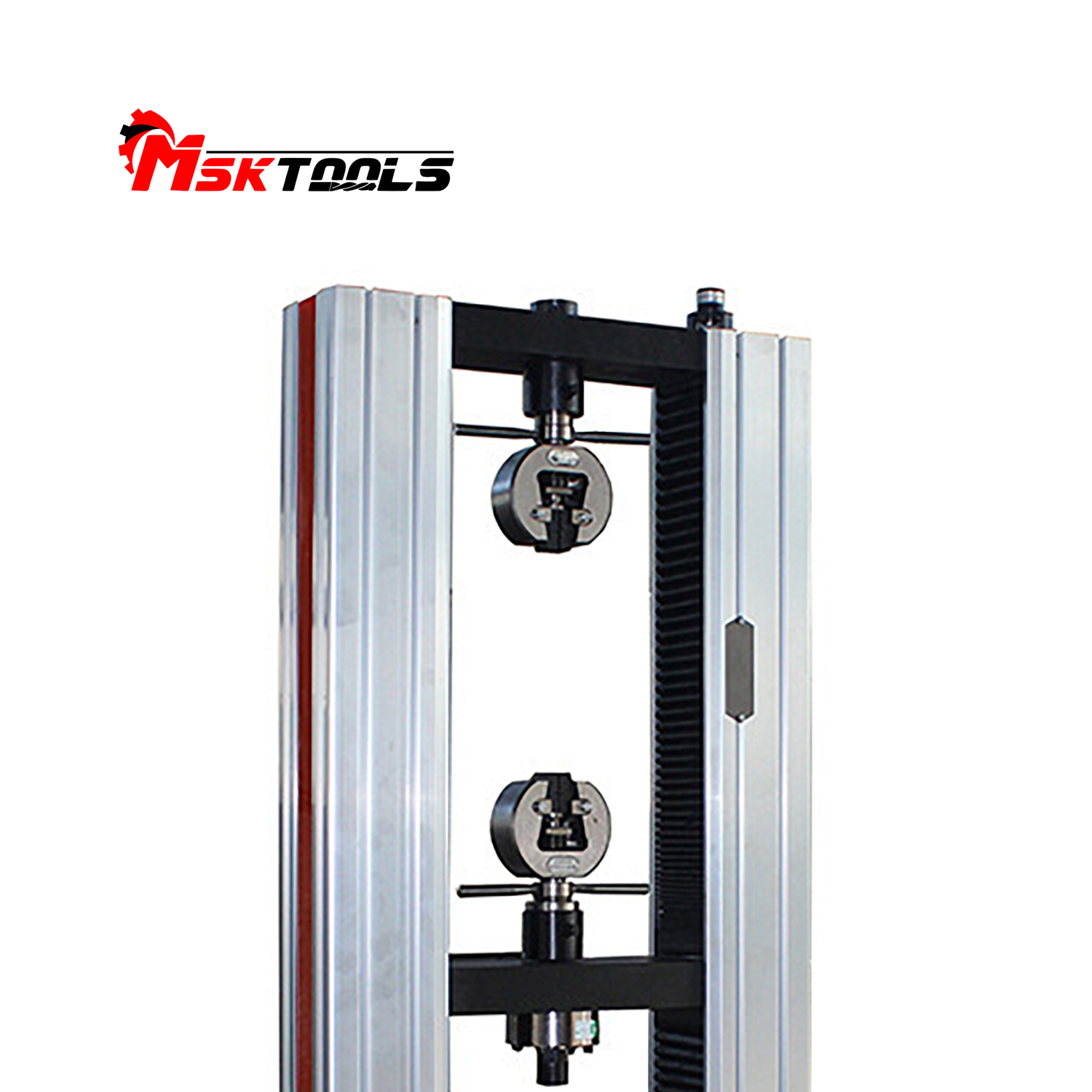

Adopting a portal-type dual-space structure
Transmission system
Utilizing an arc-shaped synchronous toothed belt and precision lead screw pair drive, resulting in smooth transmission, low noise, and high transmission efficiency.
Access Control Function
Protection Functions: This machine features both software and mechanical limit protection methods; the automatic shutdown ratio exceeding the maximum load can be dynamically set; it also has multiple protection functions including overcurrent, overvoltage, and overload protection.

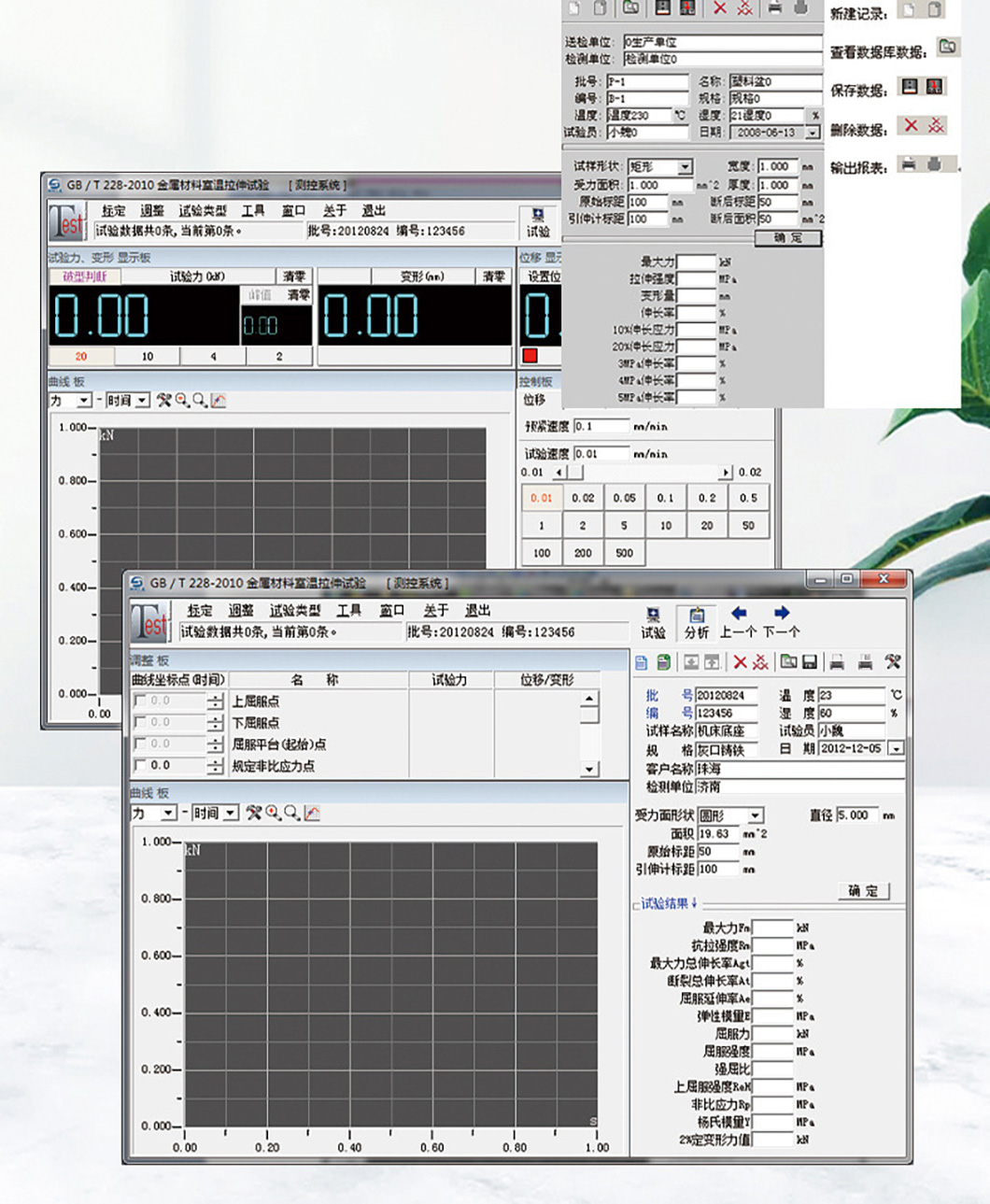

Data Processing System
The system acquires experimental data in real time, displays experimental characteristic curves dynamically in real time, and saves experimental data files in common Access databases, facilitating resource sharing, network management, and user re-analysis.
Applications Across Industries
This computer-controlled tensile tester is widely used in:
Rubber & Plastics: Tensile strength, elongation at break, tear resistance
Metals: Yield point, tensile strength, proof stress
Textiles & Packaging: Peel strength, seam strength, burst testing
Adhesives & Composites: Bond strength, flexural modulus
