High Precision Contour Measuring Instrument SP1000 | 2D Profile & Surface Roughness Tester
Ordering Instructions
Due to the special nature of the product, the price shown on the page is a deposit price, not the actual price. Please contact customer service for a quote.
Orders placed directly without prior contact cannot be shipped! Thank you for your cooperation! For more product information, please contact customer service to receive product brochures.

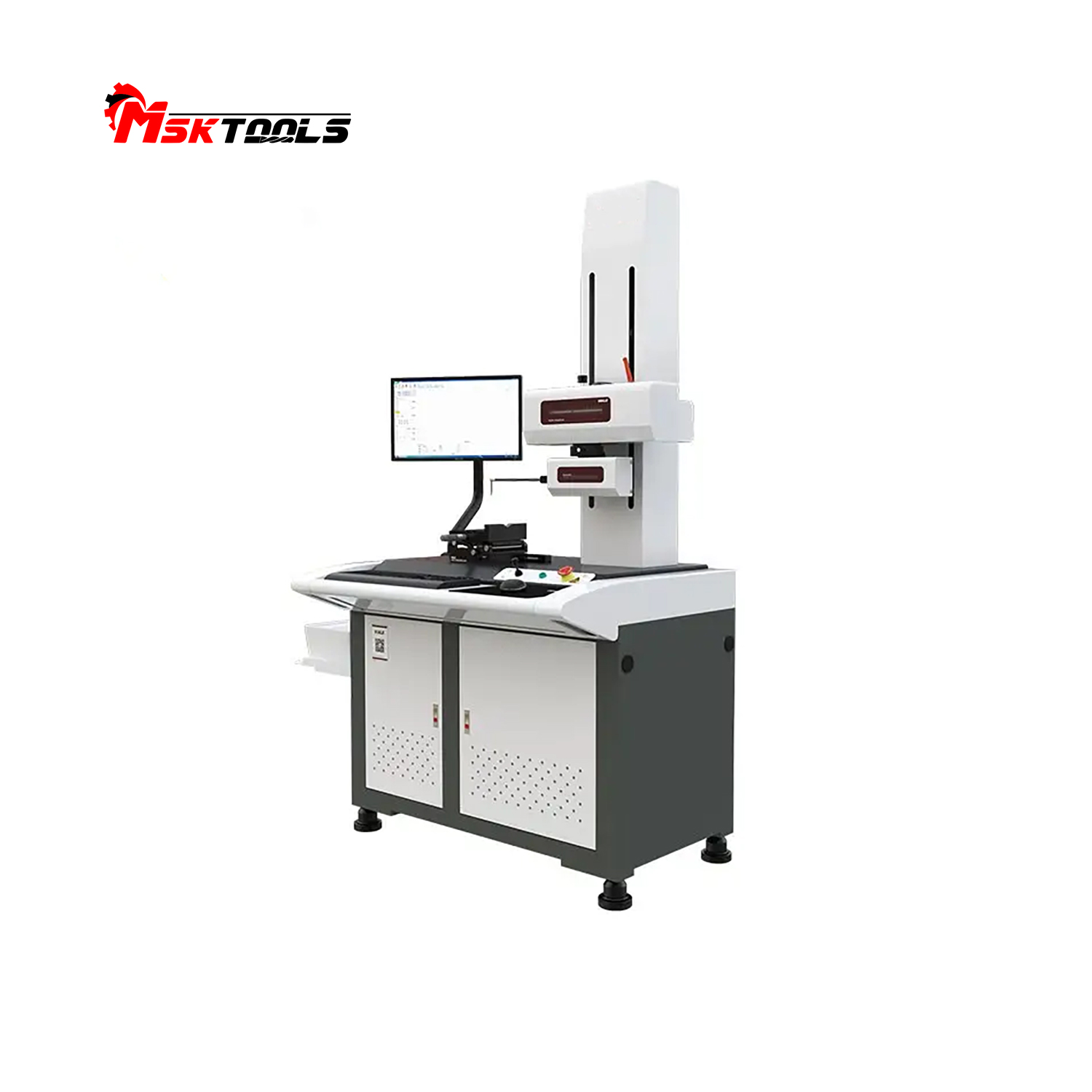

SP1000 High Precision Contour Measuring Instrument – Accurate 2D Profile & Surface Roughness Tester
The SP1000 is a next‑generation contour measuring instrument designed for high‑precision inspection of surface contours, 2D dimensions, and 2D displacement. As a versatile profilometer, it combines the functions of a surface roughness tester, surface profile gauge, and angle measurement instrument into one compact, shop‑floor ready system.

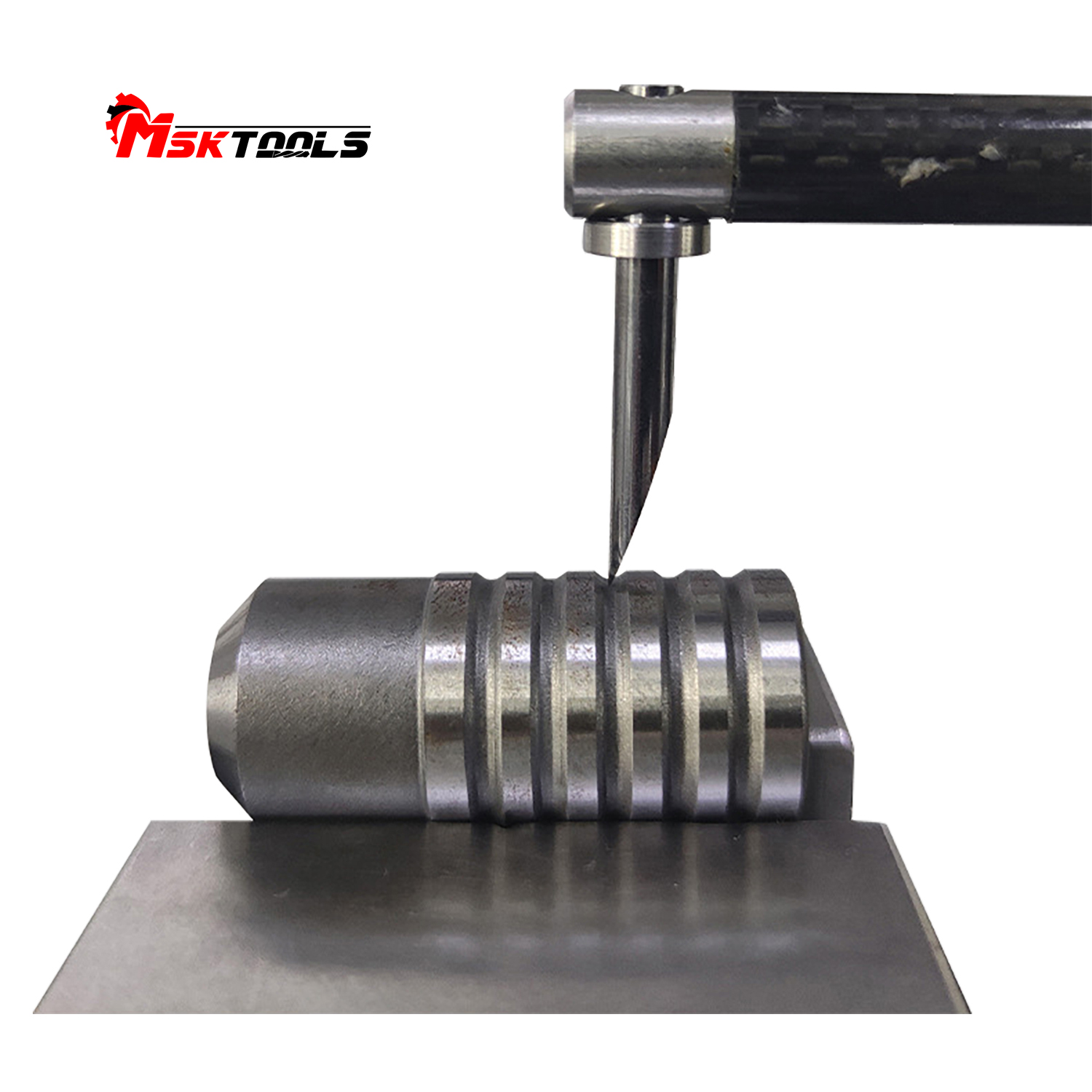

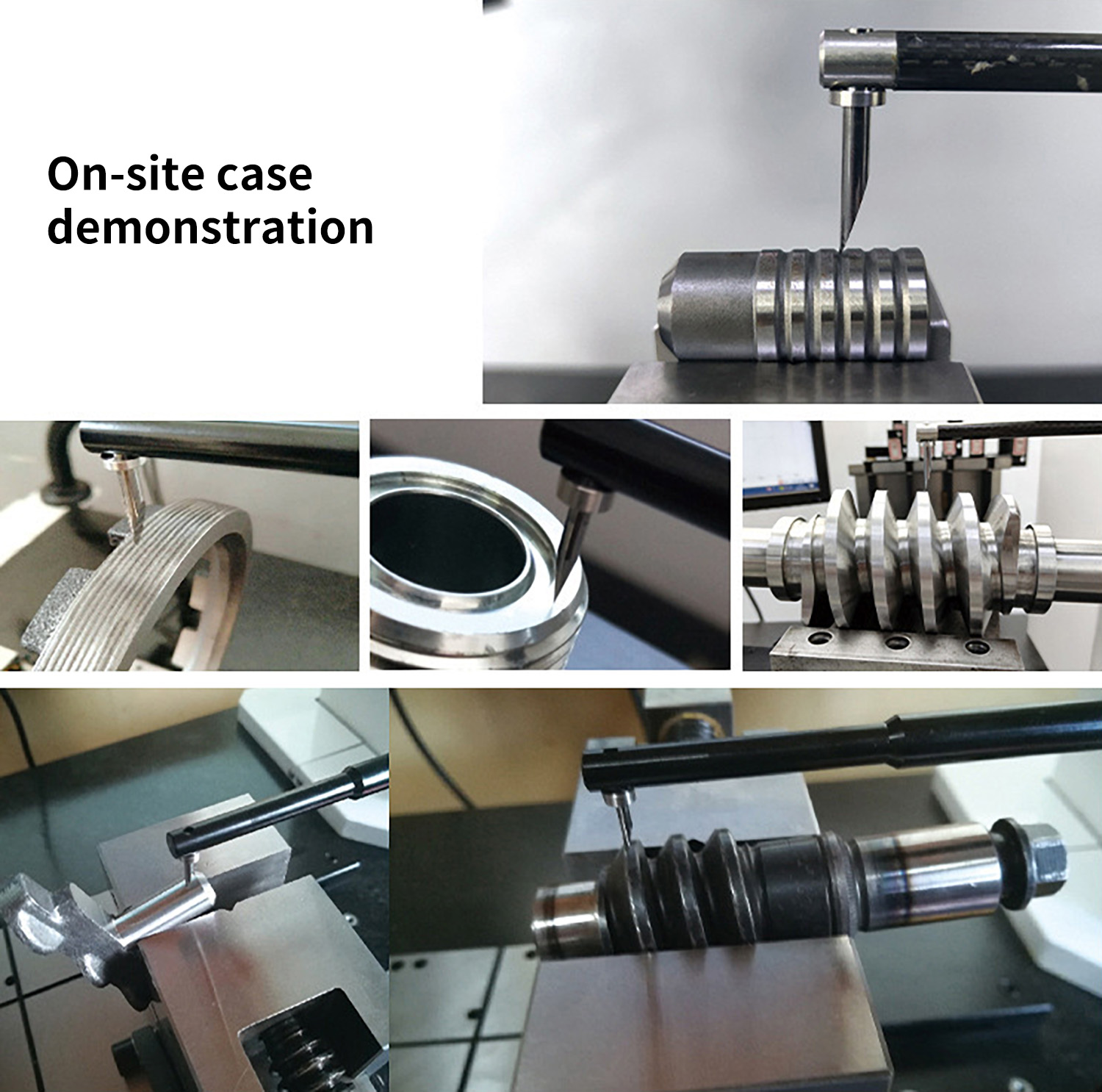

Widely adopted in the automotive manufacturing and railway industries, the SP1000 delivers repeatable accuracy for critical components such as piston rings, bearing raceways, gears, and optical lenses. Whether you need to inspect chamfer angles, complex slopes, or tight tolerances on precision parts, this system provides reliable data for quality control and process optimization.
Key Features
Multi‑Function Measurement
Combines 2D profile measurement, surface roughness analysis, angle, chamfer, and slope inspection in a single setup.
High‑Precision Sensing
Advanced sensor technology ensures micron‑level accuracy, suitable for high precision profile meter applications.
Wide Application Range
Ideal for piston ring profile measurement, bearing raceway profile measurement, gear measurement system, and optical lens surface measurement.
Compact & Shop‑Floor Ready
Small footprint design allows easy integration into laboratory or production environments without sacrificing stability.
User‑Friendly Software

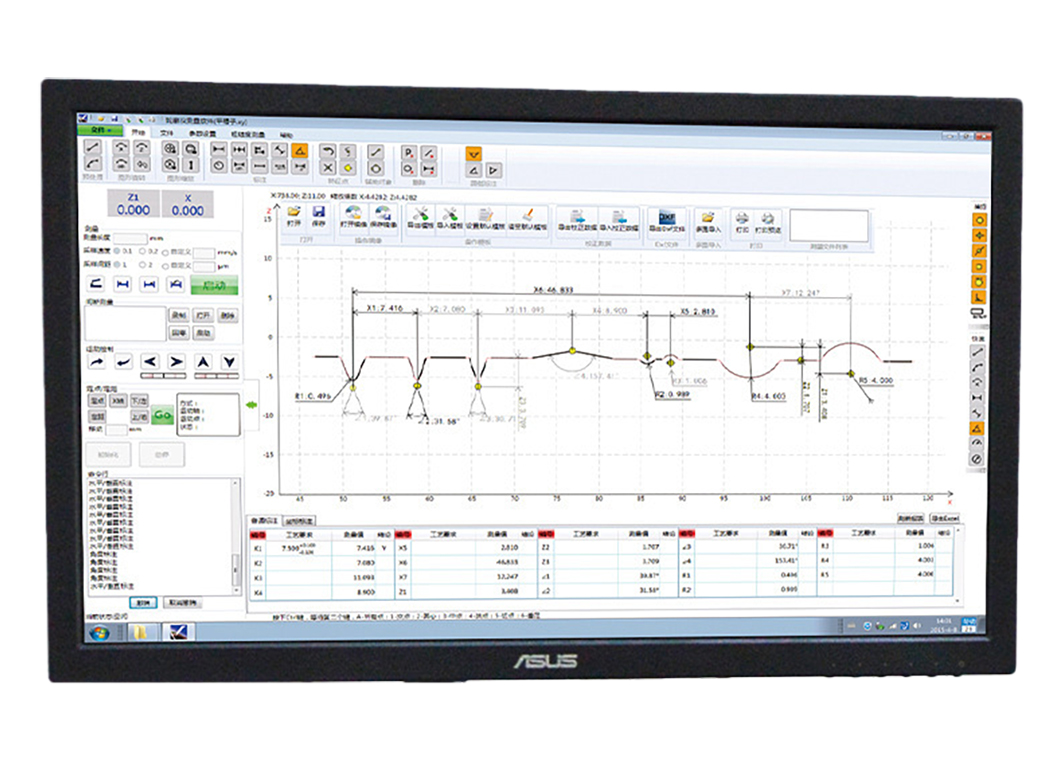

Intuitive interface with automated data output, supporting both standalone operation and connection to quality management systems.
Features
Advantages:
|
Arc
|
≤±(1.5＋∣0.2H∣)μm
|
Relative humidity
|
<85% (non-condensing)
|
|
Angle
|
≤±(2+R/8)μm
|
X-axis drive method
|
Electric
|
|
Straightness
|
≤±2'
|
Z-axis drive method
|
Electric
|
|
Linearity
|
≤0.8μm/100mm
|
X-axis drive speed
|
0.1~10mm/s
|
|
Power Requirements
|
500W
|
Z-axis drive speed
|
0.5-10mm/s
|
|
Power supply
|
AC 220V±5% 50Hz Separate ground wire
|
||
|
Ground vibration
|
<50Hz 2.5μm/s / >50Hz 5.0μm/s
|
||
|
Temperature
|
Ambient temperature: 12~26°C; Ideal temperature: 20±2°C; Temperature gradient not exceeding 1°C/h
|
||
Note:
Equipment Configuration
|
Category
|
Component Names
|
Specification Numbers
|
Quantity
|
|
Equipment Configuration
|
Digital Contour Sensor
|
cp-ztr-dc
|
1 set
|
|
Standard Driver
|
cp-d-sspm
|
1 set
|
|
|
Standard Column
|
cp-cn-sb
|
1 set
|
|
|
Integrated Standard Machine Base
|
cp-mpl
|
1 set
|
|
|
Motion Control System
|
cp-mc-spm
|
1 set
|
|
|
Contour Measurement Software
|
CMS
|
1 set
|
|
|
Computer
|
cp-01
|
1 set
|
|
|
Printer
|
pr-1c
|
1 set
|
|
|
Standard Adjustment Table
|
CP-BR-150
|
1 set
|
|
|
Precision Sine Bead Vipers
|
fq-4
|
1 set
|
|
|
Single-Face Stylus
|
D-4-32-17
|
1 piece
|
|
|
Magnetic Quick-Release Straight Rod
|
mq-4-32-200-s
|
1 set
|
|
|
Standard Parts
|
Gauge Blocks, Standard Balls
|
1 set
|
|
|
Toolbox
|
tb-10
|
1 set
|
|
|
Related materials
|
Instruction Manual
|
1 set
|
|
|
Product Warranty Card
|
1 set
|
||
|
Inspection Certificate
|
1 set
|
||
|
Certificate of Conformity
|
1 set
|
||
|
Packaging List
|
1 set
|
||
|
Equipment Acceptance Form
|
1 set
|
Equipment size
|
External dimensions (mm)
|
Main unit weight (Kg)
|
||
|
Lx
|
Ly
|
Lz
|
|
|
1450
|
700
|
1850
|
320
|
Cartesian Coordinate Measurement Method
Measurement Principle

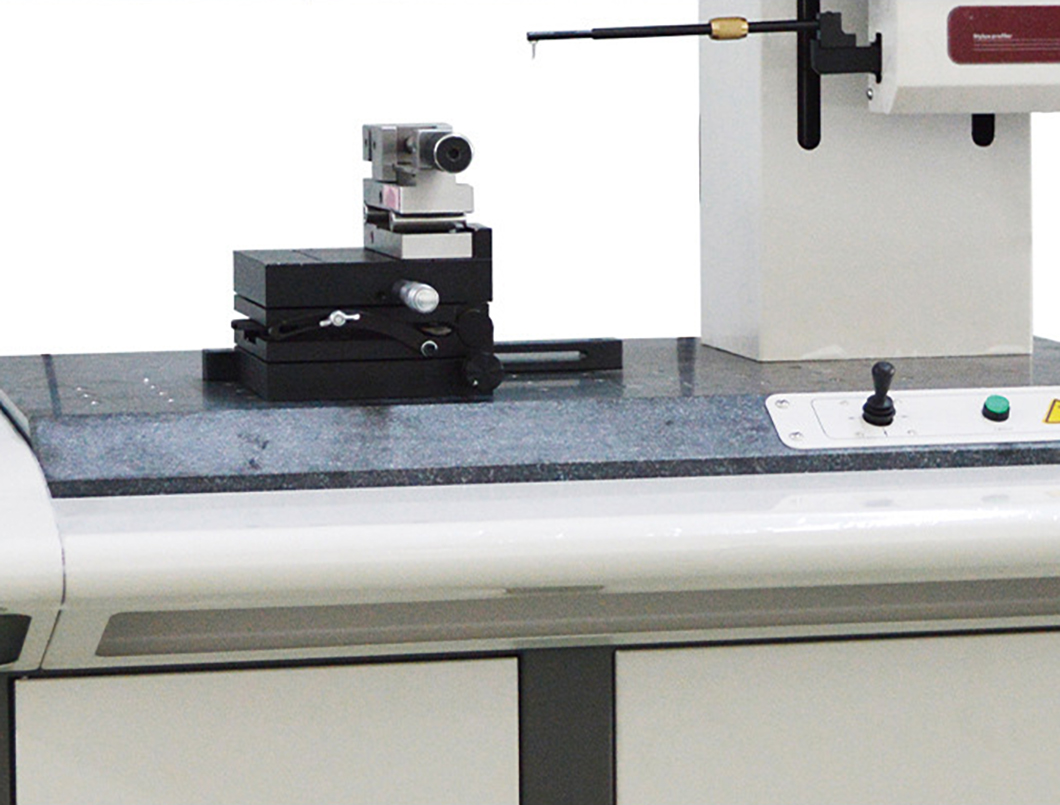

Magnetic stylus replacement for easy insertion
Automatic Capture Function
