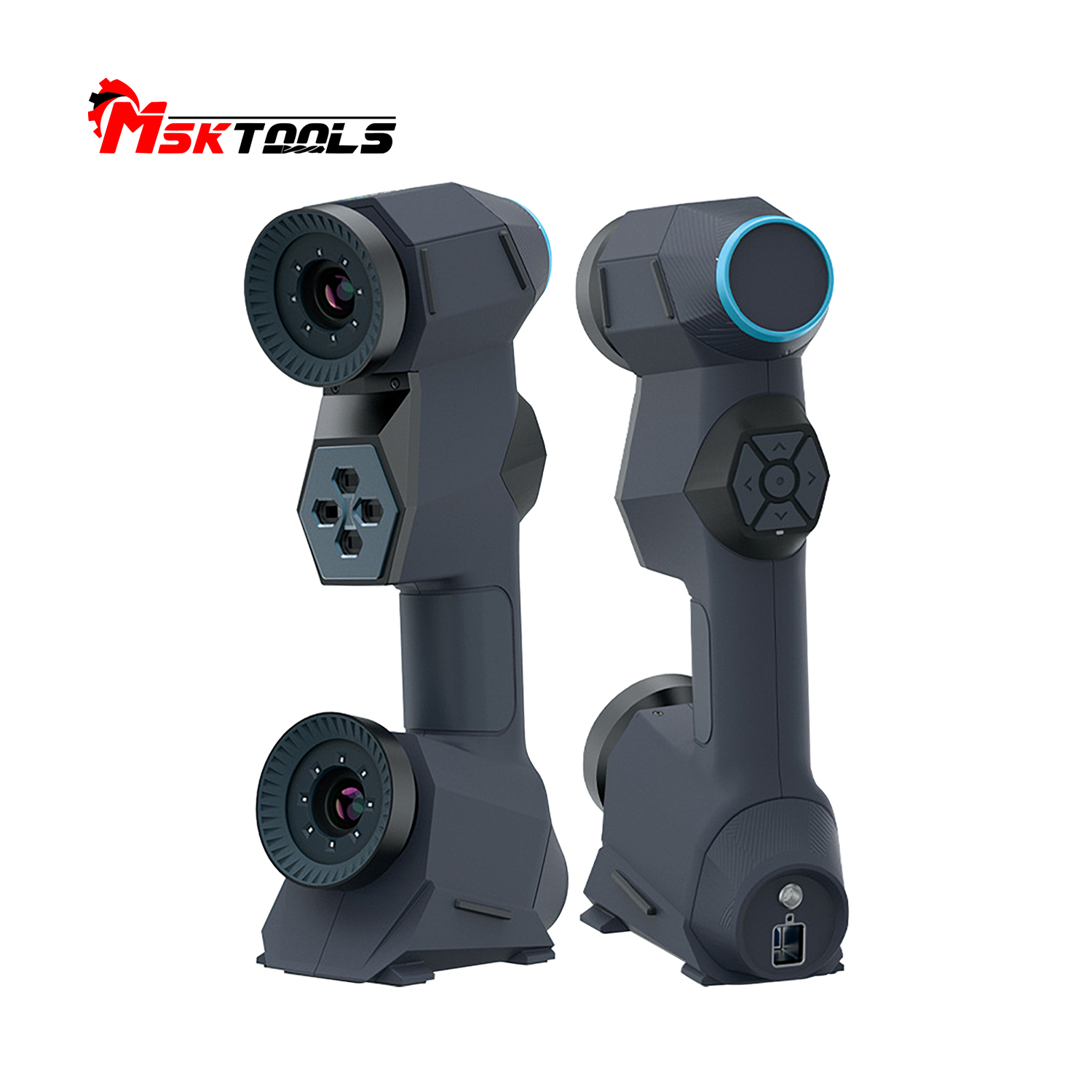

Handheld 3D Scanner High Precision | Portable Laser Scanner for Reverse Engineering
Ordering Instructions
Due to the special nature of the product, the price shown on the page is a deposit price, not the actual price. Please contact customer service for a quote.
Orders placed directly without prior contact cannot be shipped! Thank you for your cooperation! For more product information, please contact customer service to receive product brochures.
3-Port Scanner
Easy to operate / Portable / Widely applicable / No requirements for working environment
Eight Key Product Advantages
High Performance
Automatic Calibration
Fast Response
Open Design
High-Speed Transmission
Accurate Measurement
Quality Assurance
Real-Time Monitoring
Product Information
| Weight | 1kg | Depth of Field - Standard | 450mm |
| Dimensions | 300*150*70mm | Depth of Field - Fine | 150mm |
| Depth of field | 550mm | Accuracy - Standard | 0.02mm |
| Resolution | 0.02mm | Accuracy - Fine | 0.01mm |
| Transmission method | USB 3.0 | Reference Distance - Standard | 300mm |
| Operating temperature | -20~40℃ | Reference Distance - Fine | 150mm |
| Operating humidity | 10%~90% | Measurement Rate - Standard | 1,350,000 measurements/second |
| Scanning area | 600*550mm | Measurement Rate - Fine | 450,000 measurements/second |
| Volume accuracy + pH | 0.015+0.015mm/m | Volume Accuracy - Standard | 0.015 ± 0.035 mm/m |
| Laser source | 22 blue laser lines + 1 additional deep-hole scanning line + 5 additional detail scanning lines | ||
Summary Sheet
| NO. | Description | Specification | Set | Note |
| Machine | ||||
| 1 | Scanner | Rigel Scan Ultra | 1 | |
| 2 | USB Pen Driver | RigelScan scanning software | 1 | |
| 3 | Dongle | LDK Dongle Software License | 1 | |
| 4 | USB3.0 Cable | 2 parallel, L=4.2m | 1 | |
| 5 | Power Adaptor | DC24V, 1.67A | 1 | |
| 6 | Calibration Plate | 240+310mm | 1 | |
| 7 | 6mm Positioning Targets | 6mm | 1 | 1000 points/box |
| 8 | 3mm Positioning Targets | 3mm | 1 | 1000 points/box |
| 9 | Scanner Carrying Case | IM2400 | 1 | |
| 10 | Markers Scraper | PKN1 | 1 | |
| 11 | User Manual | User and System Manual | 1 | Electronic version |
| Machine Options | ||||
| 1 | Portable Photogrammetry Module | PhotoShot Pro | Optional Equipment | |
| 2 | Intelligent 3D Photogrammetry Module | PhotoShot | Optional Equipment | |
| 3 | Wireless Module | HXFreeBox-II | Optional Equipment | |
| Computer Options | ||||
| 1 | Computer | Optional Equipment | ||
| Software System Options | ||||
| 1 | Polyworks Detection Module | PolyWorks Inspector | Optional Equipment | |
| 2 | Geomagic 3D Inspection Software | Geomagic Control X | Optional Equipment | |
| 3 | Geomagic Reverse Engineering Software | Geomagic Design X | Optional Equipment | |
| 4 | Geomagic scanning data processing software | Geomagic Wrap | Optional Equipment | |
| Others Options | ||||
| 1 | Optional Equipment | |||
| 2 | Optional Equipment | |||
Control Mode Buttons
Automatic Assembly Function
First, the entire system scans the marker points, then each part is scanned individually. The scan results for each part can be automatically assembled.
Automatic Positioning System
The system automatically locates the target point, eliminating the need for additional tracking equipment; it's a plug-and-play system for quick installation and use; its powerful mesh optimization function makes model details more realistic and edge effects more refined.
High Precision/High Performance/High Stability

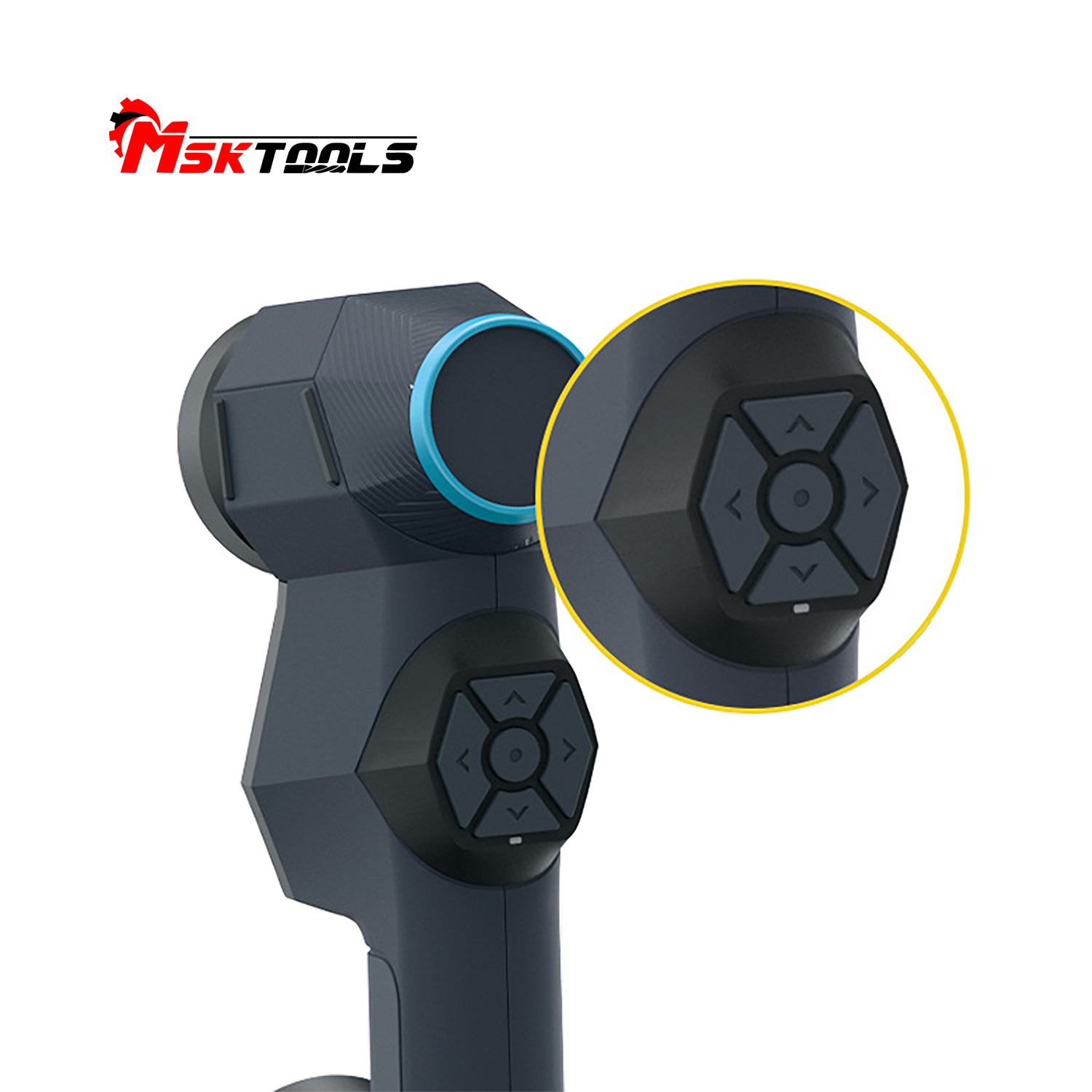

Intelligent Button System
Users can complete the main functions such as scanning mode selection, calibration, and ending the scan simply by using the scanner buttons, without having to return to the computer for mouse and keyboard interaction.
