In the world of precision machining, the difference between profitability and loss often comes down to seconds. When it comes to creating internal threads, the tool you choose dictates both your speed and your quality. The Automatic Reversible Tapping Chuck Set stands as a pinnacle of engineering, designed to solve the inherent challenges of traditional tapping.
This guide explores everything you need to know about these essential tools, from their internal mechanisms to how they compare to rigid tapping, ensuring you have the knowledge to select the right tap chuck for your workshop.
What is an Automatic Reversible Tapping Chuck?

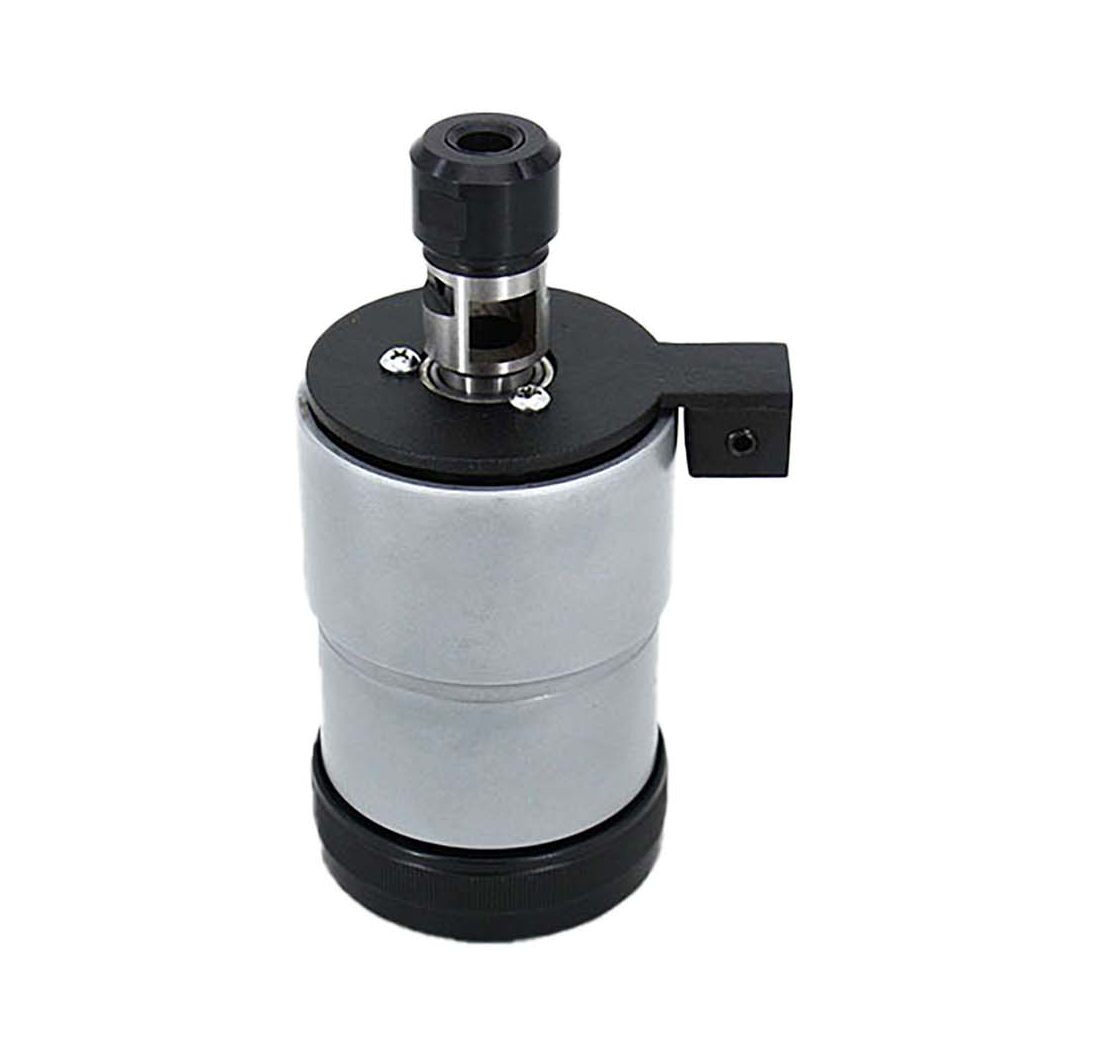

An Automatic Reversible Tapping Chuck is a precision tool holder that drives a tap into a workpiece to cut threads and then automatically reverses direction to retract the tap at high speed. Unlike a standard tapping chuck that relies entirely on the machine spindle to stop and reverse, this device contains an internal clutch mechanism.
Think of it as a specialized tapping head that acts as a "smart" interface between your machine and the tap. It allows you to use basic drill presses or milling machines to produce professional-grade threads without the need for expensive CNC rigid tapping capabilities.
Key Components of a Tapping Chuck Set

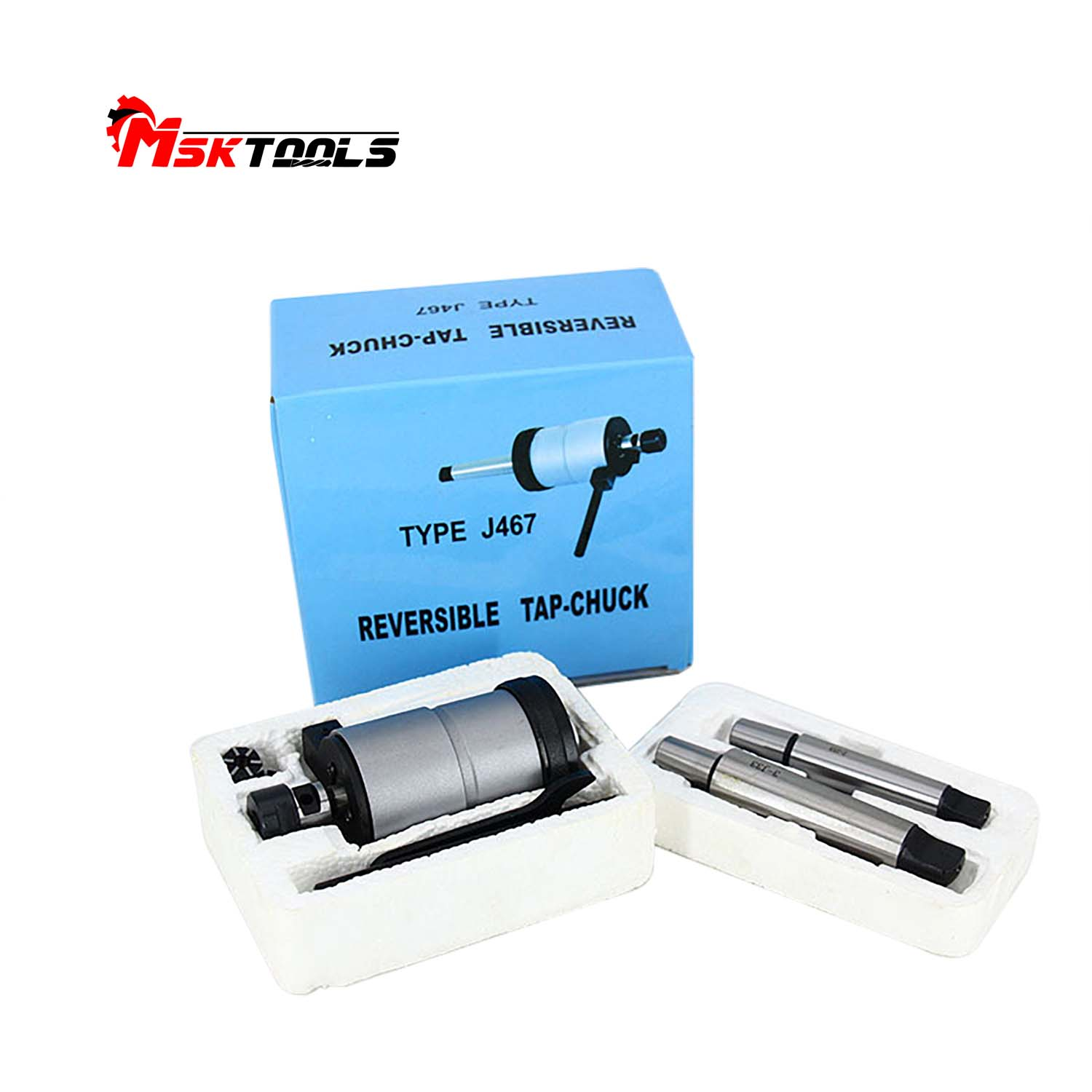

When you invest in a high-quality tapping chuck set, you are purchasing a system designed for versatility. A typical set includes:
- The Main Body (The Chuck): This houses the internal reversing mechanism. It connects to the machine spindle, often via a straight shank or a taper chuck shank (like MT or R8).
- Interchangeable Tap Holders: These are the tap chuck inserts that grip the square drive of the tap. A good tapping chuck tap holder ensures zero slippage.

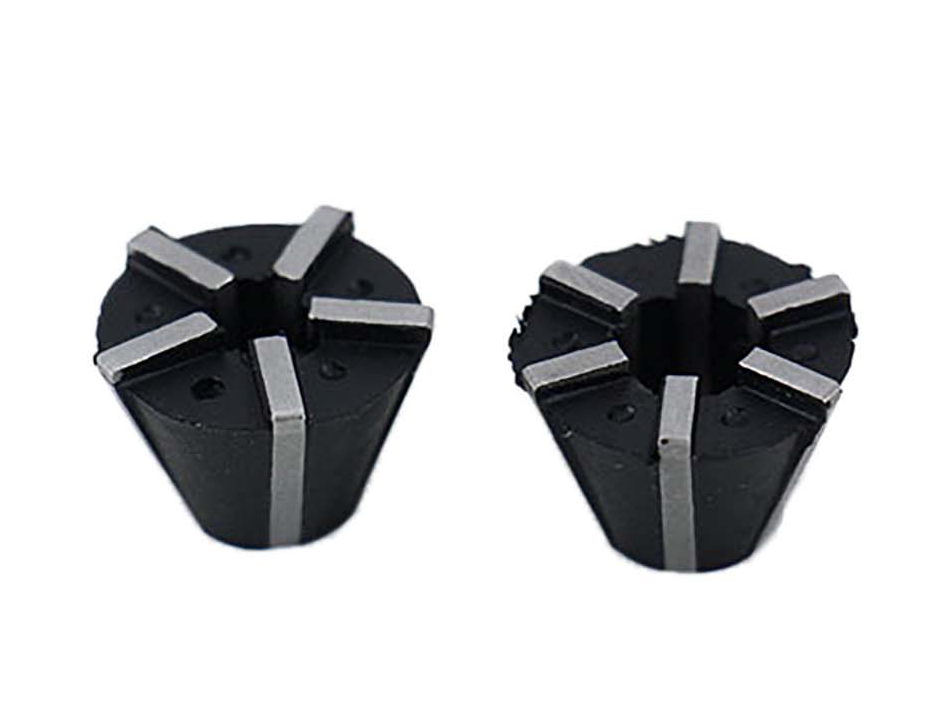

- Tapping Collets: For smaller tap sizes or specific applications, a tapping collet chuck provides a firm, concentric grip on the cylindrical part of the tap.
- Accessories: Wrenches for adjustment and a sturdy storage case to protect the precision-ground tapping chucks and collets.
How Does a Reversible Tapping Chuck Work?
The magic of the reversible tapping chuck lies in its mechanical intelligence. Here is a step-by-step breakdown of the cycle:
- Forward Engagement: As the machine spindle advances, the internal clutch engages, driving the tap chuck and the tap into the workpiece. The tap follows its own lead pitch.
- Depth Reached: At the bottom of the hole, the machine continues to feed downward slightly. The automatic reversing mechanism detects this change in thrust.
- Automatic Reversal: The internal clutch disengages from the forward drive and engages the reverse drive. The tap begins to spin out of the hole at approximately twice the speed of the forward rotation.
- Retraction: The tap clears the hole, and the cycle is ready to repeat.
This system protects your work by providing "float" or tension/compression, which compensates for any mismatch between the machine’s feed rate and the exact thread pitch of the tap.
Automatic Reversible vs. Rigid Tapping
Understanding the difference between using a tapping chuck and rigid tapping is crucial for machine operators.
- Rigid Tapping (CNC): Requires the machine to synchronize the spindle rotation perfectly with the Z-axis feed. It is fast and accurate but requires expensive CNC control and high-quality rigid tap holders.
- Automatic Reversible Tapping (Manual/Conventional CNC): Uses a tapping head or chuck that mechanically compensates for feed errors. It is ideal for:
- Older machines without spindle synchronization.
- Drill presses and milling machines.
- High-volume production where high-speed reversal saves spindle wear.
Advantages of Using a High-Quality Tap Chuck
Why should you upgrade to a professional tapping chuck set?
1. Extended Machine Life
By handling the reversal internally, the reversible tapping chuck prevents the machine spindle from having to stop and reverse direction under load. This drastically reduces wear and tear on the machine's motor, gears, and brakes.
2. Superior Thread Quality
The internal tension/compression mechanism ensures that the tap is not "pulled" or "pushed" at the bottom of the hole. This eliminates common defects like thread bell-mouthing or torn threads, ensuring a perfect finish every time.
3. Increased Production Speed
Because the tap reverses faster than the machine can, cycle times are significantly reduced. For deep holes or tough materials, the quick retraction of a tapping collet chuck system saves valuable seconds per hole.
4. Tap Longevity
By eliminating axial pressure on the tap, these chucks reduce the risk of tap breakage. The smooth action of the tapping chucks and collets keeps the tap cutting freely, extending its useful life.
5. Versatility Across Applications
With a comprehensive tapping chuck set, you can quickly change between tap sizes without removing the main chuck from the machine. The taper chuck drill adapters allow you to mount the unit in virtually any spindle.
How to Select the Right Tapping Chuck Set
When shopping for an Automatic Reversible Tapping Chuck Set, consider the following factors:
- Capacity Range: What is the minimum and maximum tap size the set can accommodate? Ensure the included tapping chucks and collets cover your most common sizes.
- Shank Type: Does your machine require a straight shank, or do you need a taper chuck (e.g., Morse Taper) for direct spindle mounting? A taper chuck drill configuration is common for drill presses.
- Construction Material: Look for chucks made from hardened alloy steel. The internal clutches should be precisely ground for smooth, reliable action.
- Adjustability: Some tap chuck models allow you to adjust the torque to prevent tap breakage in blind holes.
Applications in Modern Manufacturing
The Automatic Reversible Tapping Chuck is not a relic of the past; it remains a vital tool in:
- Job Shops: For quick setups on manual mills and drills.
- Maintenance & Repair: For fixing threads on heavy equipment where portability and simplicity are key.
- Production Lines: Running on dedicated tapping machines where the sheer speed of the reversible tapping chuck outpaces general-purpose machining centers.
Conclusion: The Smart Investment in Precision
For any machinist looking to improve throughput and thread quality, the Automatic Reversible Tapping Chuck Set is an indispensable investment. It bridges the gap between simple manual tapping and expensive CNC rigid tapping, offering a robust, reliable, and repeatable solution.
By incorporating a high-quality tap chuck into your workflow, you protect your machinery, enhance your output, and ensure that every thread meets exacting standards. Whether you need a dedicated taper chuck for a specific job or a comprehensive set for general workshop use, the technology behind the automatic reversible tap holder remains the gold standard for efficient internal threading.
