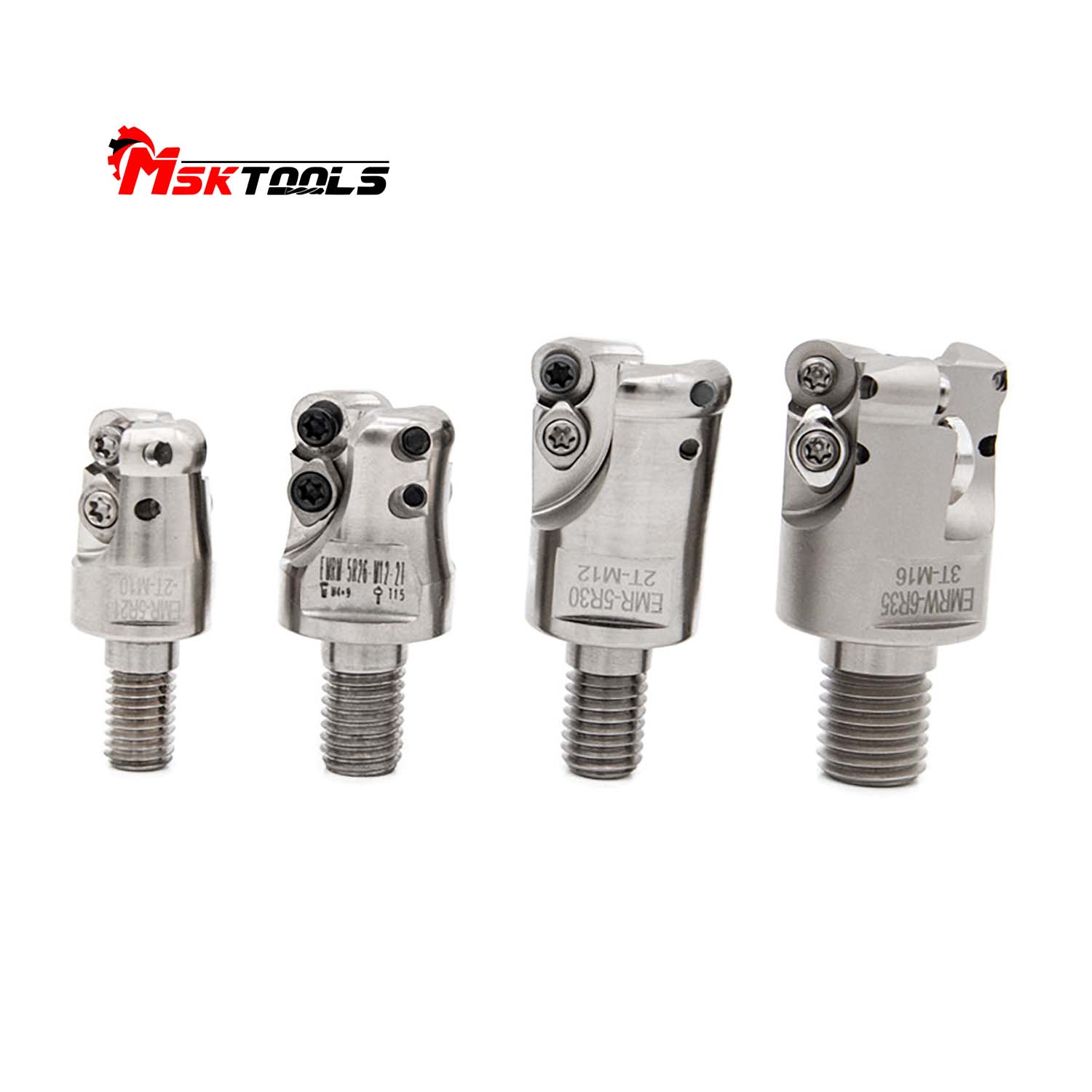

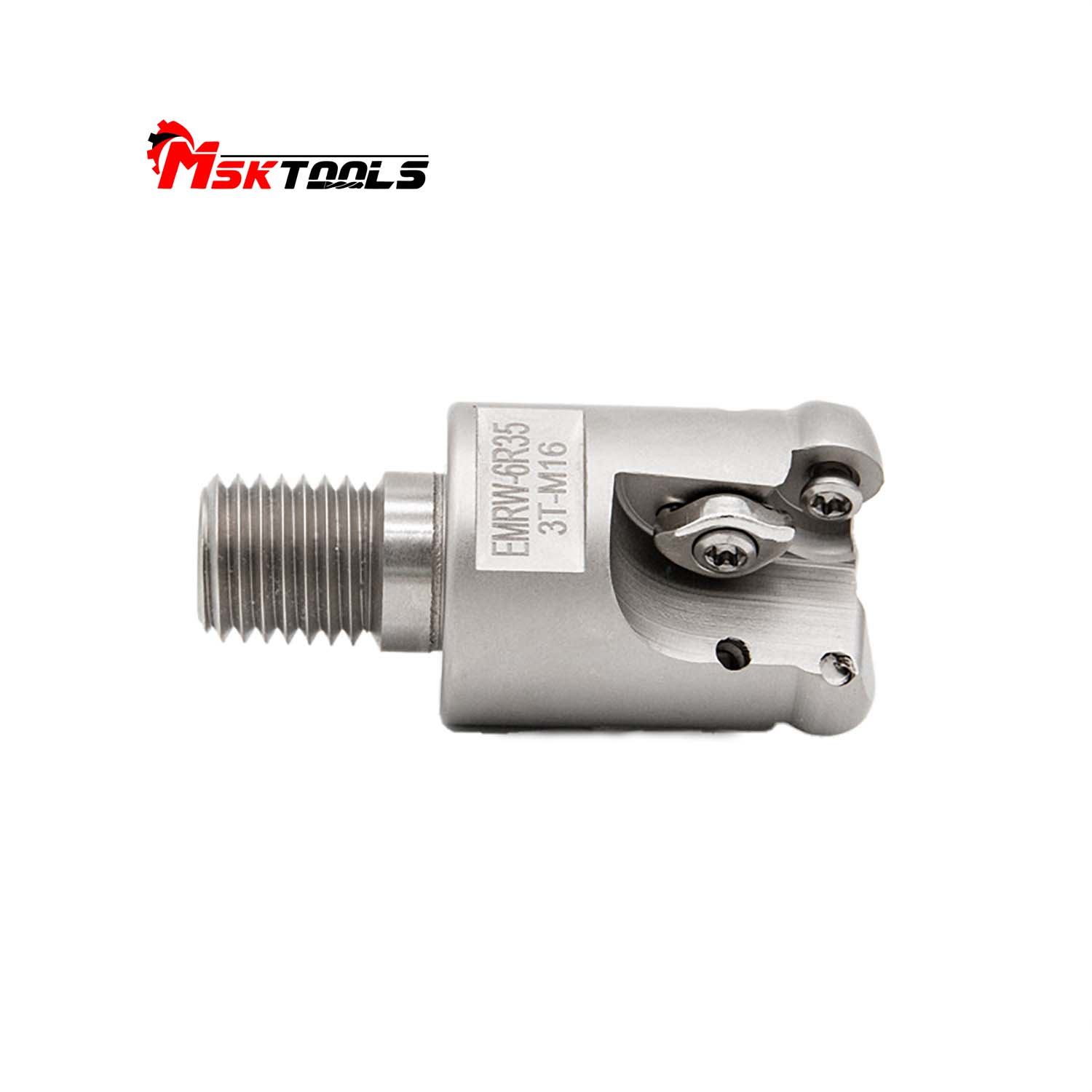

In a significant leap forward for demanding machining applications, especially the notoriously challenging realm of interrupted gear cutting, EMR Modular Cutters today unveiled its next-generation Heavy-Duty Indexable Milling Head. This innovative system leverages a unique screw-clamped carbide blade seating technology designed to deliver unprecedented resilience and performance where conventional cutters often fail.
The core challenge addressed by this new head lies in interrupted cutting – scenarios where the cutting tool repeatedly enters and exits the workpiece material. Gear machining, particularly splines, keyways, and complex profiles, is a prime example. Each entry subjects the cutting edge to intense mechanical shock and thermal cycling, rapidly accelerating wear, chipping expensive carbide inserts, and causing catastrophic tool failure. Traditional clamping methods often struggle to maintain secure blade seating under these brutal conditions, leading to vibration, poor surface finish, dimensional inaccuracy, and costly downtime.
EMR's solution centers on its patented screw-clamped seat design, specifically engineered for heavy-duty operations:
Unbreakable Bond, Effortless Swap: Unlike brazed or welded solutions that permanently fuse carbide to the tool body, EMR's system uses precisely machined, hardened steel seats integrated into the milling head. Heavy-duty cap screws apply immense, uniform clamping force directly onto the carbide blades, creating a near-monolithic connection. This eliminates the weak points associated with brazing while retaining the critical advantage of indexability – worn or damaged edges can be quickly rotated or replaced in minutes without discarding the entire tool segment.
Seamless Interface: The interface between the carbide blade and its seat is engineered to micron-level tolerances. This "seamless" mating ensures maximum contact area and optimal force distribution. The result is exceptional power transmission from the tool body to the cutting edge, significantly reducing micro-movement and vibration – the primary culprits behind insert chipping during interrupted cuts.
Premium Carbide Performance: The system is designed to utilize state-of-the-art, heavy-duty carbide grades specifically formulated for high-impact and interrupted cutting applications. The secure clamping allows these advanced materials to perform at their peak potential, maximizing edge life and material removal rates (MRR) even under punishing conditions.
Benefits Extend Beyond Gears:
While optimized for interrupted gear cutting, the heavy-duty EMR Indexable Milling Head offers compelling advantages across a spectrum of demanding milling operations:
Enhanced Stability: Reduced vibration improves surface finish and dimensional accuracy on all materials.
Increased Productivity: Higher permissible MRR due to superior insert security and shock resistance.
Reduced Downtime: Faster, simpler insert indexing and replacement compared to brazed tools.
Lower Tooling Costs: Preserves expensive carbide bodies; only the insert edges need replacing.
Improved Predictability: Consistent performance reduces unexpected tool failures and streamlines production planning.
Availability & Modularity:
The new Heavy-Duty Indexable Milling Head is part of EMR's comprehensive modular cutter system, compatible with existing EMR arbors and extensions. This allows shops to easily integrate this advanced technology into their current setups for specific high-demand operations like gear cutting, while using standard modules for less severe tasks. The heads are available in various diameters and configurations suitable for common gear milling machines.
Industry Impact:
The introduction of this heavy-duty head is poised to make a significant impact on gear manufacturing and other sectors plagued by interrupted cuts. By providing a robust, reliable, and cost-effective solution that conquers shock loading and insert retention issues, EMR empowers manufacturers to push productivity boundaries, improve part quality, and reduce overall machining costs in some of the most challenging environments. It represents a tangible step forward in the evolution of modular tooling for the most demanding industrial applications.
Post time: Jul-07-2025
